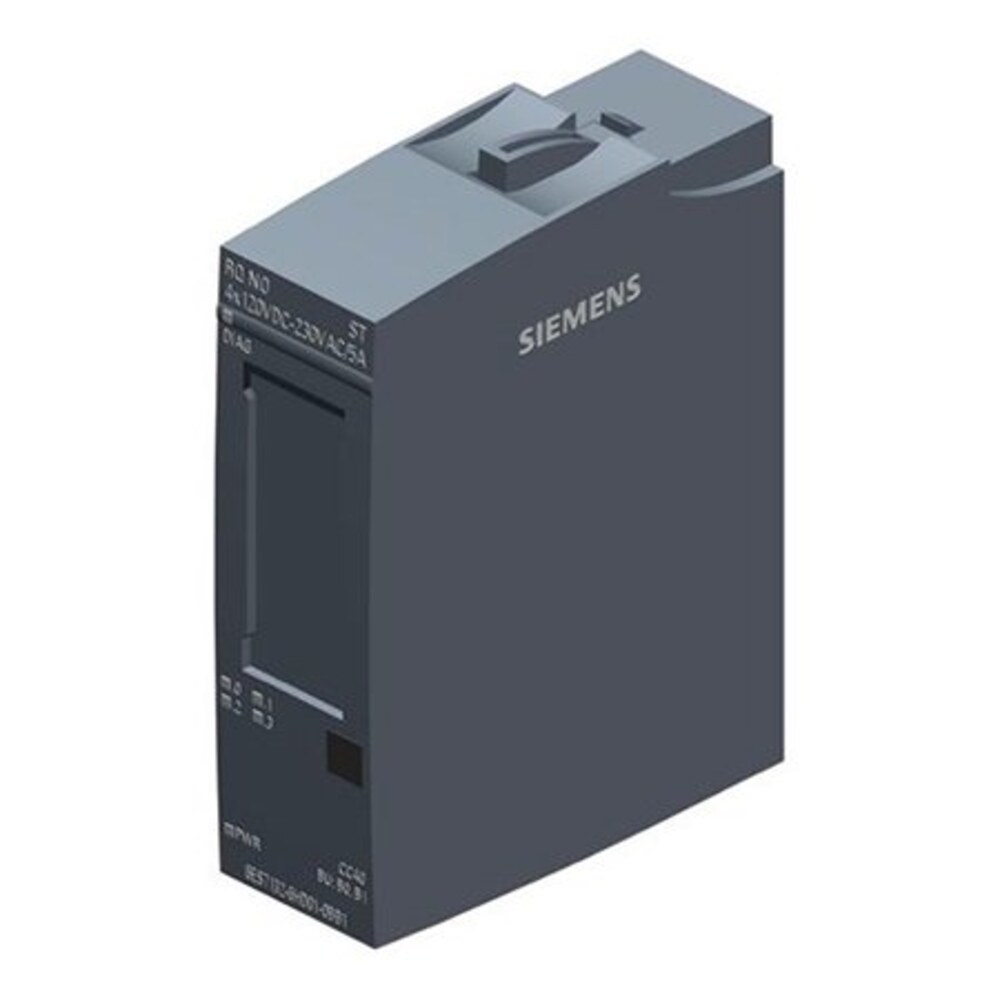

Siemens 6ES7132-6HD01-0BB1 Output Module
- Brand
- Siemens
- Model
- 6ES7132-6HD01-0BB1
- GEARWELL SKU
- GWP-000003906
- Category
- Industrial Automation Parts
Key specifications
- Power loss, typ.
- 1.5 W
- Dimensions — Depth
- 58 mm
- Product description
- SIMATIC ET 200SP, Relay module, RQ NO 4x 120V DC..230VAC/5A ST. 4 normally open contacts, isolated contacts, packing unit: 1 piece, fits to BU-type B0 and B1, Colour Code CC40, substitute value output, module diagnostics for: supply voltage
- Weights — Weight, approx.
- 40 g
- Product type designation
- RQ 4x120 VDC ... 230 VAC/5 A NO ST
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Siemens 6ES7132-6HD01-0BB1 Output Module |
|---|---|
| Brand | Siemens |
| Model | 6ES7132-6HD01-0BB1 |
| Category | Industrial Automation Parts |
| Power loss, typ. | 1.5 W |
| Dimensions — Depth | 58 mm |
| Product description | SIMATIC ET 200SP, Relay module, RQ NO 4x 120V DC..230VAC/5A ST. 4 normally open contacts, isolated contacts, packing unit: 1 piece, fits to BU-type B0 and B1, Colour Code CC40, substitute value output, module diagnostics for: supply voltage |
| Weights — Weight, approx. | 40 g |
| Product type designation | RQ 4x120 VDC ... 230 VAC/5 A NO ST |
| Number of digital outputs | 4 |
| Input current — Current consumption (rated value) | 55 mA; without load |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
