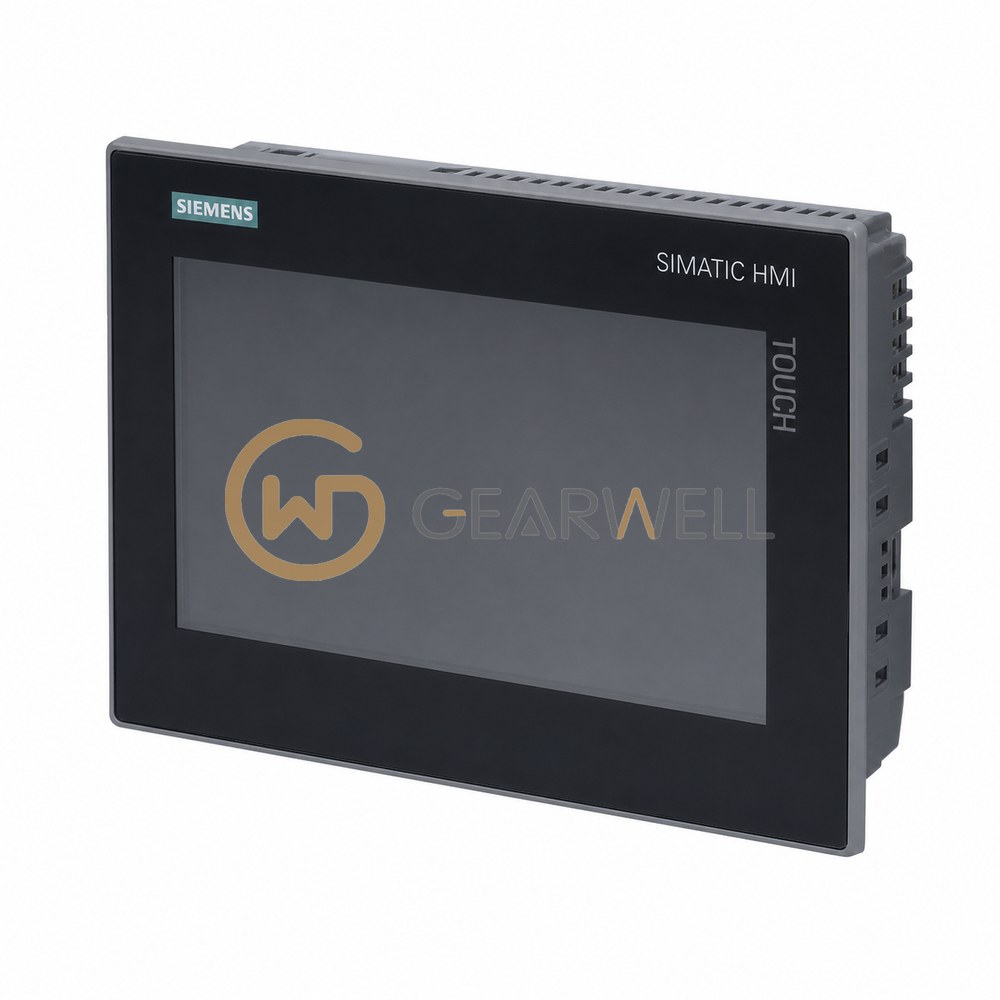

Siemens 6AV2124-0GC01-0AX0 TP700 Comfort 7-inch HMI Touch Panel
- Brand
- Siemens
- Model
- 6AV2124-0GC01-0AX0
- GEARWELL SKU
- GWP-000001580
- Category
- Industrial Automation Parts
Key specifications
- Display
- 7-inch TFT, 800 × 480 pixels
- Supply voltage
- 24 V DC rated; permissible range 19.2–28.8 V DC
- Mounting cutout
- 198 × 142 mm (W × H); mounting depth 63 mm
- Touch technology
- Analog-resistive touchscreen
- Ingress protection
- IP65 at front; IP20 at rear
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Siemens 6AV2124-0GC01-0AX0 TP700 Comfort 7-inch HMI Touch Panel |
|---|---|
| Brand | Siemens |
| Model | 6AV2124-0GC01-0AX0 |
| Category | Industrial Automation Parts |
| Display | 7-inch TFT, 800 × 480 pixels |
| Supply voltage | 24 V DC rated; permissible range 19.2–28.8 V DC |
| Mounting cutout | 198 × 142 mm (W × H); mounting depth 63 mm |
| Touch technology | Analog-resistive touchscreen |
| Ingress protection | IP65 at front; IP20 at rear |
| Product description | SIMATIC HMI TP700 Comfort touch operator panel; 7-inch TFT display; PROFINET and MPI/PROFIBUS DP; 12 MB configuration memory; Windows CE 6.0; configurable from WinCC Comfort V11 |
| Weight (with packaging) | 1.6 kg |
| Product type designation | TP700 Comfort |
| Number of 20 mA interfaces (TTY) | 0 |
| Dimensions — Height of housing front | 158 mm |
| Input current — Current consumption (rated value) | 0.5 A |
