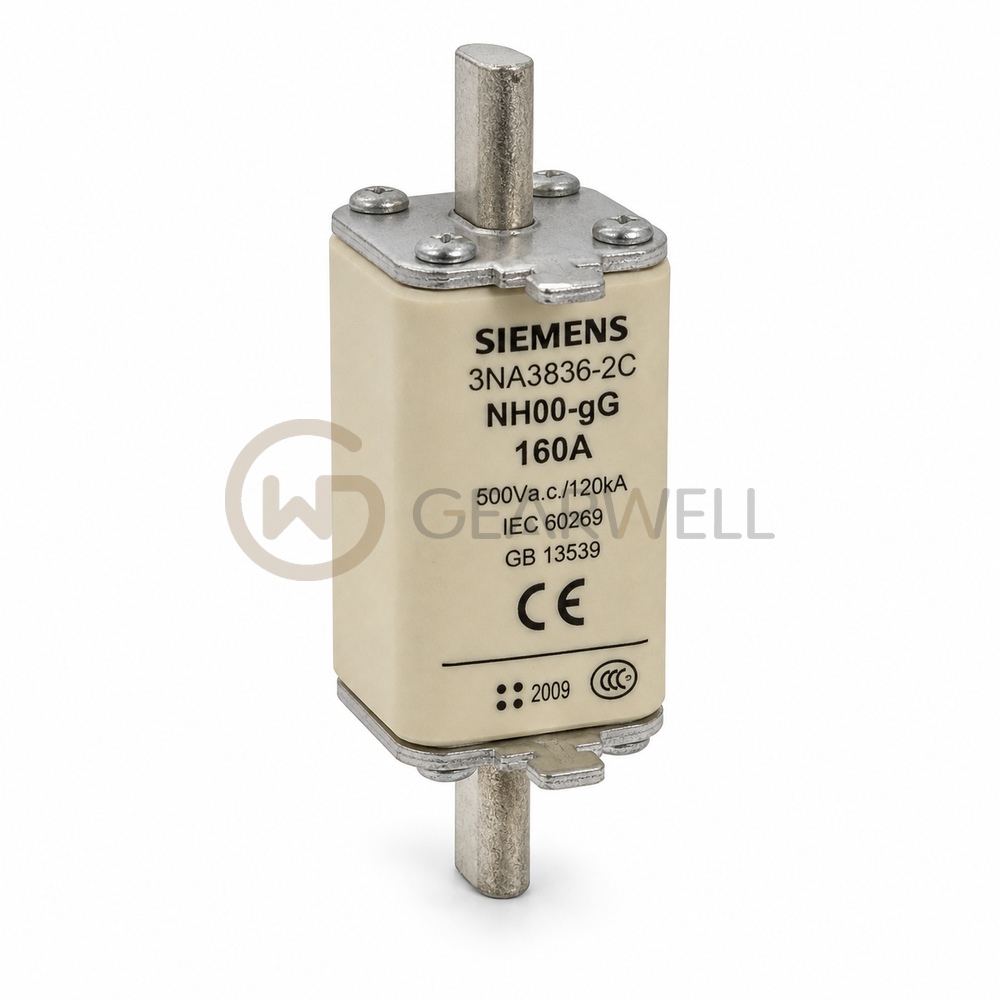

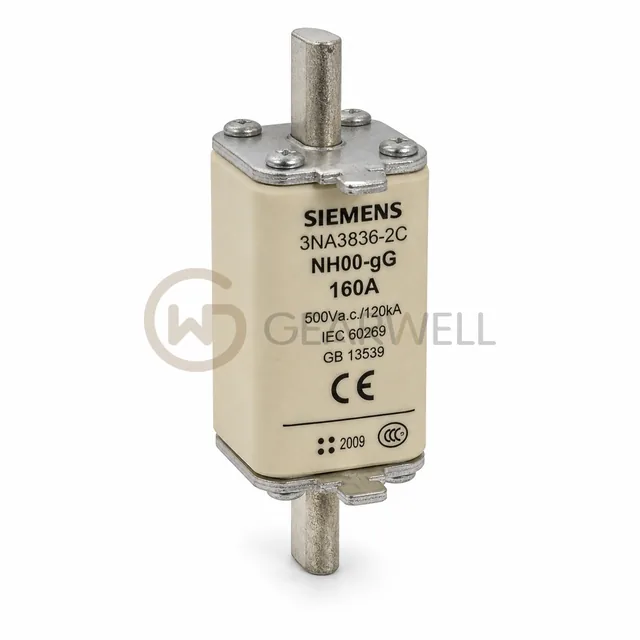

Siemens 3NA3836-2C SENTRON NH00 160 A gG Fuse Link
- Brand
- Siemens
- Model
- 3NA3836-2C
- GEARWELL SKU
- GWP-000001400
- Category
- Industrial Components
Key specifications
- Fuse system size
- NH00
- Net Weight
- 203 g
- Power loss (catalogue value)
- 10.5 W
- Rated current
- 160 A
- Rated voltage
- 500 V AC; 250 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Siemens 3NA3836-2C SENTRON NH00 160 A gG Fuse Link |
|---|---|
| Brand | Siemens |
| Model | 3NA3836-2C |
| Category | Industrial Components |
| Fuse system size | NH00 |
| Net Weight | 203 g |
| Power loss (catalogue value) | 10.5 W |
| Rated current | 160 A |
| Rated voltage | 500 V AC; 250 V DC |
| Fuse operating class | gG |
| Rated breaking capacity | 120 kA AC; 25 kA DC with time constant <= 10 ms |
| Product description | LV HRC fuse link GG/gL size 00, 160 A, 500 V |
| Mechanical Design — width of the enclosure | 30 mm |
| Power loss at rated AC current, hot state, per pole | 11 W |
