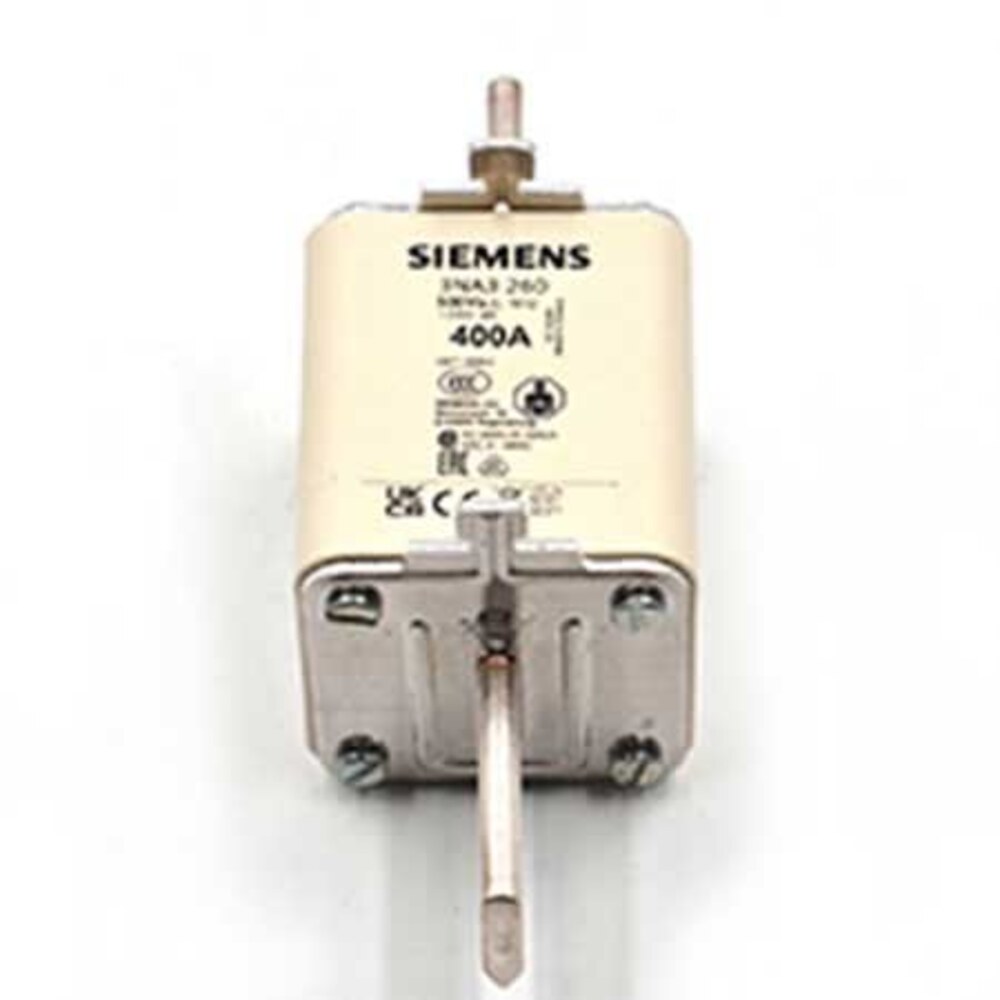

Siemens 3NA3 260 SENTRON NH2 400 A gG Fuse Link
- Brand
- Siemens
- Model
- 3NA3 260
- GEARWELL SKU
- GWP-000004069
- Category
- Industrial Automation Parts
Key specifications
- Fuse system size
- NH2
- Net Weight
- 656.5 g
- Power loss (catalogue value)
- 29 W
- Rated current
- 400 A
- Rated voltage
- 500 V AC; 440 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Siemens 3NA3 260 SENTRON NH2 400 A gG Fuse Link |
|---|---|
| Brand | Siemens |
| Model | 3NA3 260 |
| Category | Industrial Automation Parts |
| Fuse system size | NH2 |
| Net Weight | 656.5 g |
| Power loss (catalogue value) | 29 W |
| Rated current | 400 A |
| Rated voltage | 500 V AC; 440 V DC |
| Fuse operating class | gG |
| Rated breaking capacity | 120 kA AC; 25 kA DC with time constant <= 10 ms |
| Product description | LV HRC fuse element, NH2, In: 400 A, gG, Un AC: 500 V, Un DC: 440 V, Front indicator, live grip lugs |
| Mechanical Design — width of the enclosure | 57.8 mm |
| Power loss at rated AC current, hot state, per pole | 29 W |
