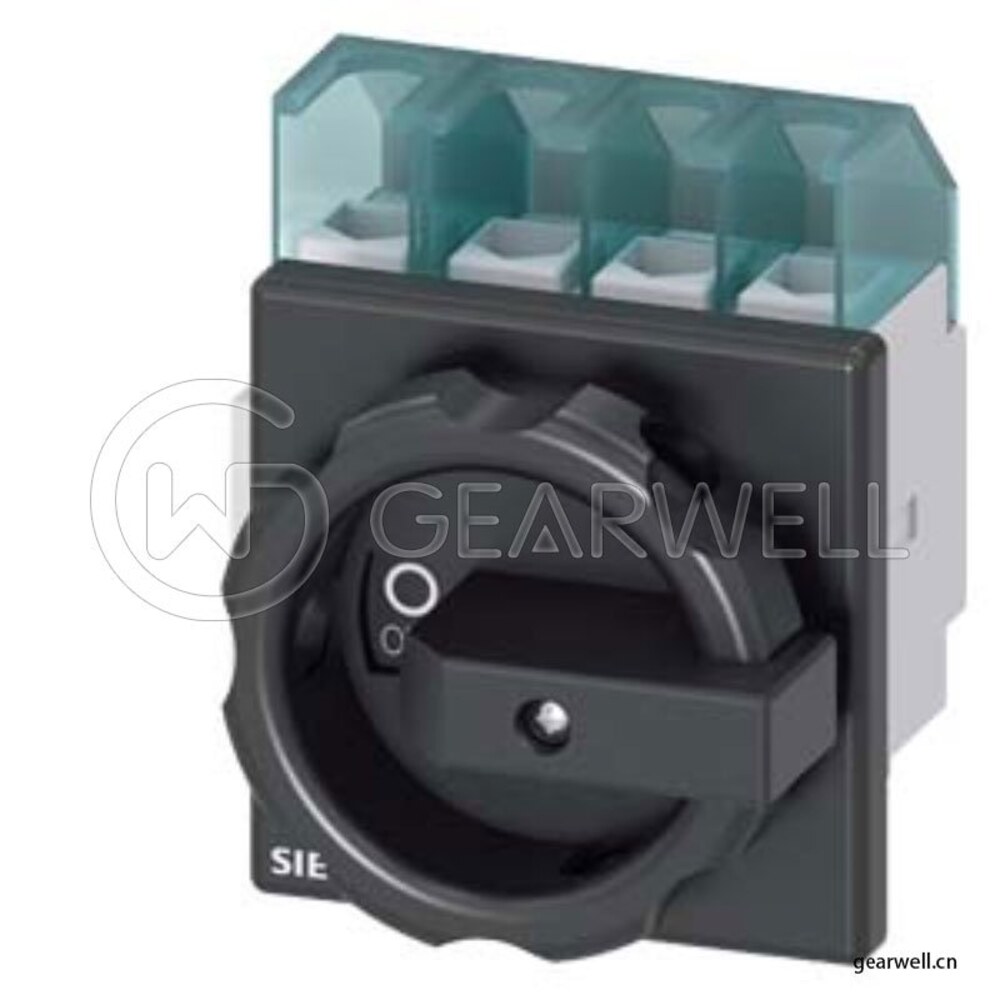

Siemens 3LD2203-1TL51 Switch disconnector
- Brand
- Siemens
- Model
- 3LD2203-1TL51
- GEARWELL SKU
- GWP-000003005
- Category
- Industrial Automation Parts
Key specifications
- Net Weight
- 235 g
- Product description
- SENTRON, switch disconnector 3LD, main switch, 4-pole, Iu: 32 A, operating power / at AC-23 A at 400 V: 11.5 kW, front-mounted, rotary operating mechanism, black, 4-hole mounting of the handle
- Mechanical Design — depth
- 93 mm
- degree of protection NEMA rating
- 1, 3R, 4X, 12
- power loss [W] for rated value of the current at AC in hot operating state per pole
- 0.98 W
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Siemens 3LD2203-1TL51 Switch disconnector |
|---|---|
| Brand | Siemens |
| Model | 3LD2203-1TL51 |
| Category | Industrial Automation Parts |
| Net Weight | 235 g |
| Product description | SENTRON, switch disconnector 3LD, main switch, 4-pole, Iu: 32 A, operating power / at AC-23 A at 400 V: 11.5 kW, front-mounted, rotary operating mechanism, black, 4-hole mounting of the handle |
| Mechanical Design — depth | 93 mm |
| degree of protection NEMA rating | 1, 3R, 4X, 12 |
| power loss [W] for rated value of the current at AC in hot operating state per pole | 0.98 W |
