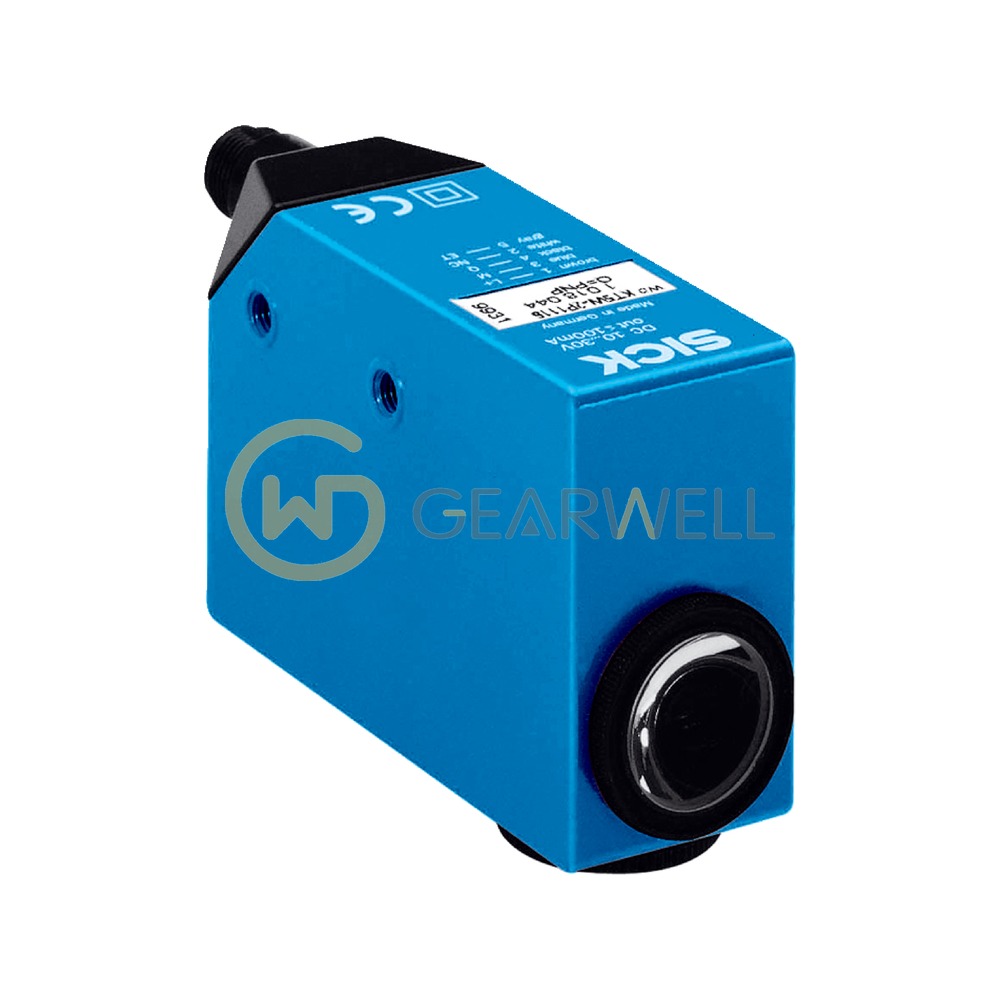

SICK KT5W-2P1116 KT5 Contrast Sensor
- Brand
- SICK
- Model
- KT5W-2P1116
- GEARWELL SKU
- GWP-000011730
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Adjustment
- Teach-in button, static 2-point teach-in
- Part number
- 1018044
- Light source
- LED, RGB (470 / 525 / 640 nm)
- Supply voltage
- 10 ... 30 V DC
- Light spot size
- 1.2 x 4.2 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK KT5W-2P1116 KT5 Contrast Sensor |
|---|---|
| Brand | SICK |
| Model | KT5W-2P1116 |
| Category | Proximity & Photoelectric Sensors |
| Adjustment | Teach-in button, static 2-point teach-in |
| Part number | 1018044 |
| Light source | LED, RGB (470 / 525 / 640 nm) |
| Supply voltage | 10 ... 30 V DC |
| Light spot size | 1.2 x 4.2 mm |
| Enclosure rating | IP67 |
| Sensing distance | ≤ 10 mm |
| Switching output | PNP |
| Switching frequency | 10 kHz |
| Dimensions (W x H x D) | 30.4 x 53 x 80 mm |
