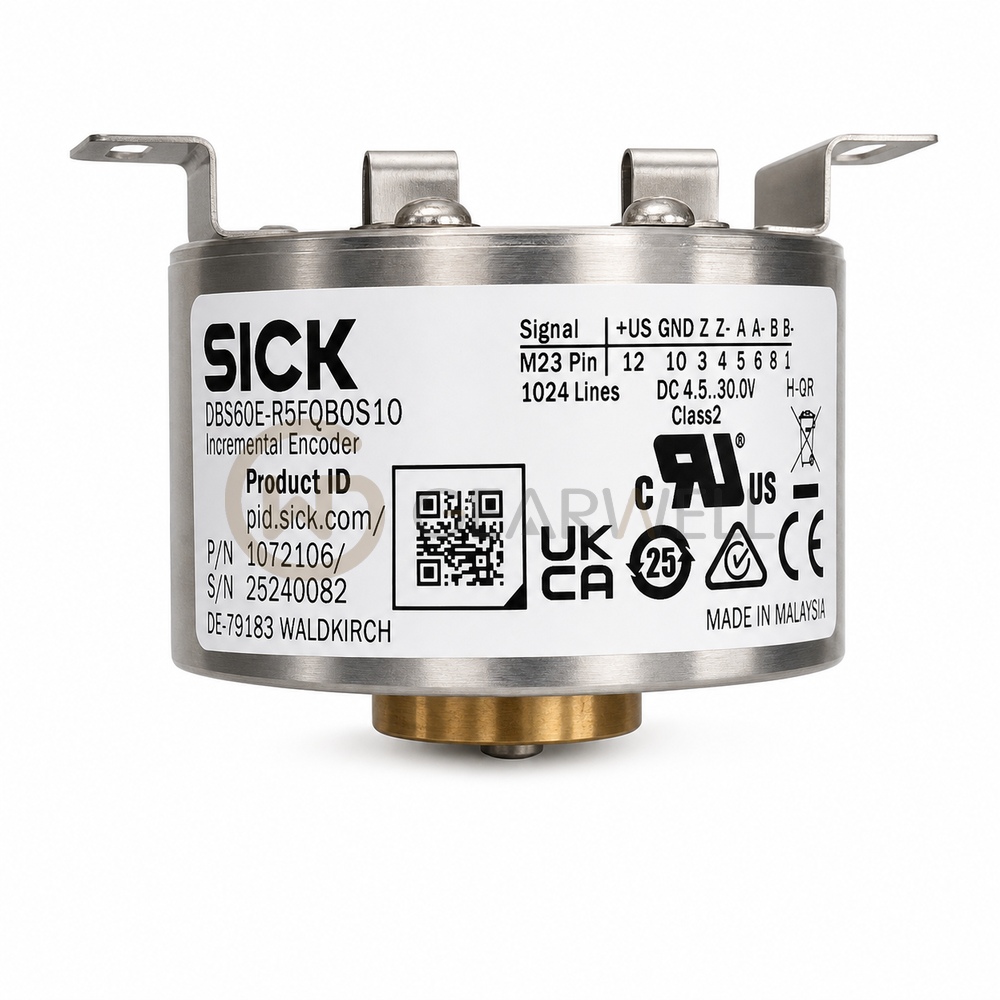

SICK DBS60E-R5FQB0S10 Encoder
- Brand
- SICK
- Model
- DBS60E-R5FQB0S10
- GEARWELL SKU
- GWP-000001427
- Category
- Industrial Automation Parts
Key specifications
- Shaft
- 12 mm through hollow shaft, rear clamping
- Weight
- Approx. 0.25 kg
- Supply voltage
- 4.5–30 V
- Operating speed
- 6,000 min⁻¹
- Reference signal
- 1, 90° electrical
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK DBS60E-R5FQB0S10 Encoder |
|---|---|
| Brand | SICK |
| Model | DBS60E-R5FQB0S10 |
| Category | Industrial Automation Parts |
| Shaft | 12 mm through hollow shaft, rear clamping |
| Weight | Approx. 0.25 kg |
| Supply voltage | 4.5–30 V |
| Operating speed | 6,000 min⁻¹ |
| Reference signal | 1, 90° electrical |
| Degree of protection | IP65 (housing and shaft sides) |
| Operating temperature | -30–100 °C at up to 3,000 pulses/revolution |
| Maximum operating speed | 9,000 min⁻¹ |
