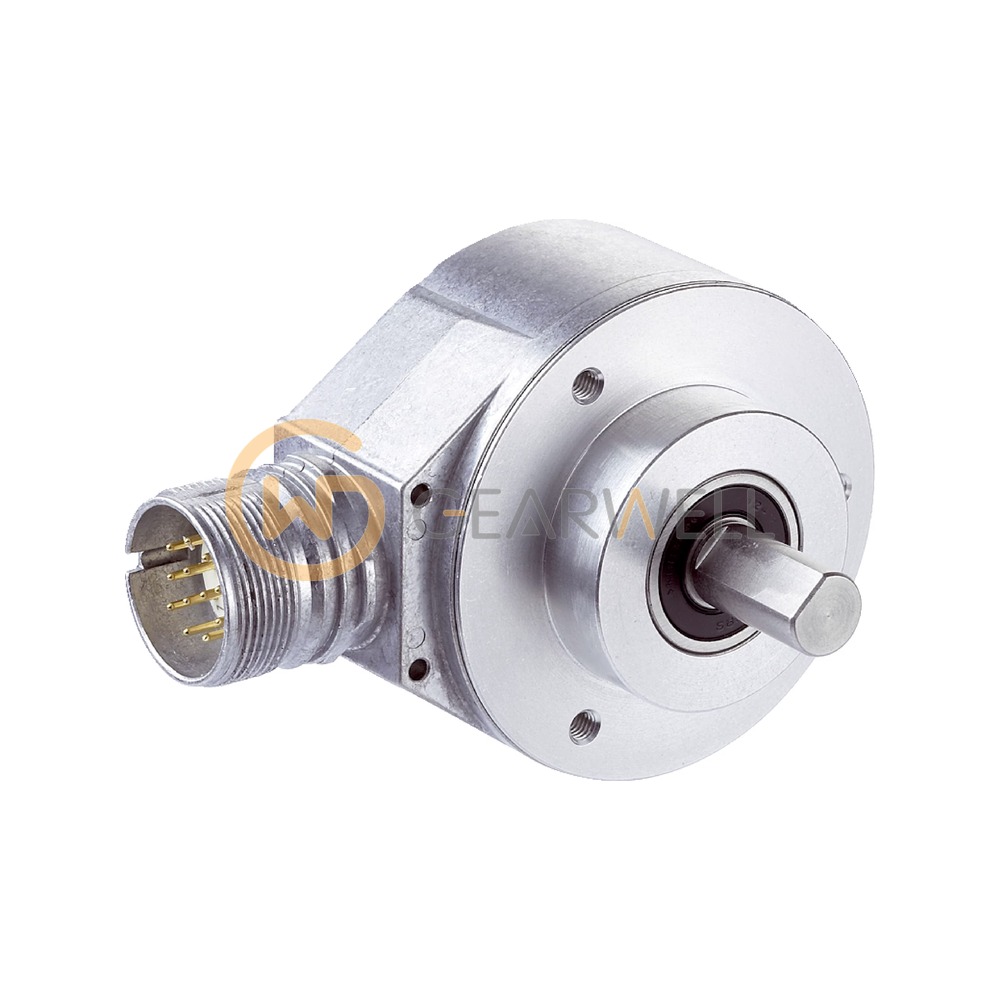

SICK AFS60B-S4PA032768 AFS/AFM60 SSI Absolute Encoder
- Brand
- SICK
- Model
- AFS60B-S4PA032768
- GEARWELL SKU
- GWP-000009781
- Category
- Encoders & Position
Key specifications
- Part number
- 1037483
- Connection type
- Male connector, M23, 12-pin, radial
- Mechanical design
- Solid shaft face mount flange 10 mm x 19 mm (With flat)
- Programming interface
- Over handheld programming tool, over SOPAS
- Number of steps per revolution
- 32,768 (15 bit)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK AFS60B-S4PA032768 AFS/AFM60 SSI Absolute Encoder |
|---|---|
| Brand | SICK |
| Model | AFS60B-S4PA032768 |
| Category | Encoders & Position |
| Part number | 1037483 |
| Connection type | Male connector, M23, 12-pin, radial |
| Mechanical design | Solid shaft face mount flange 10 mm x 19 mm (With flat) |
| Programming interface | Over handheld programming tool, over SOPAS |
| Number of steps per revolution | 32,768 (15 bit) |
| Singleturn or multiturn version | Singleturn |
