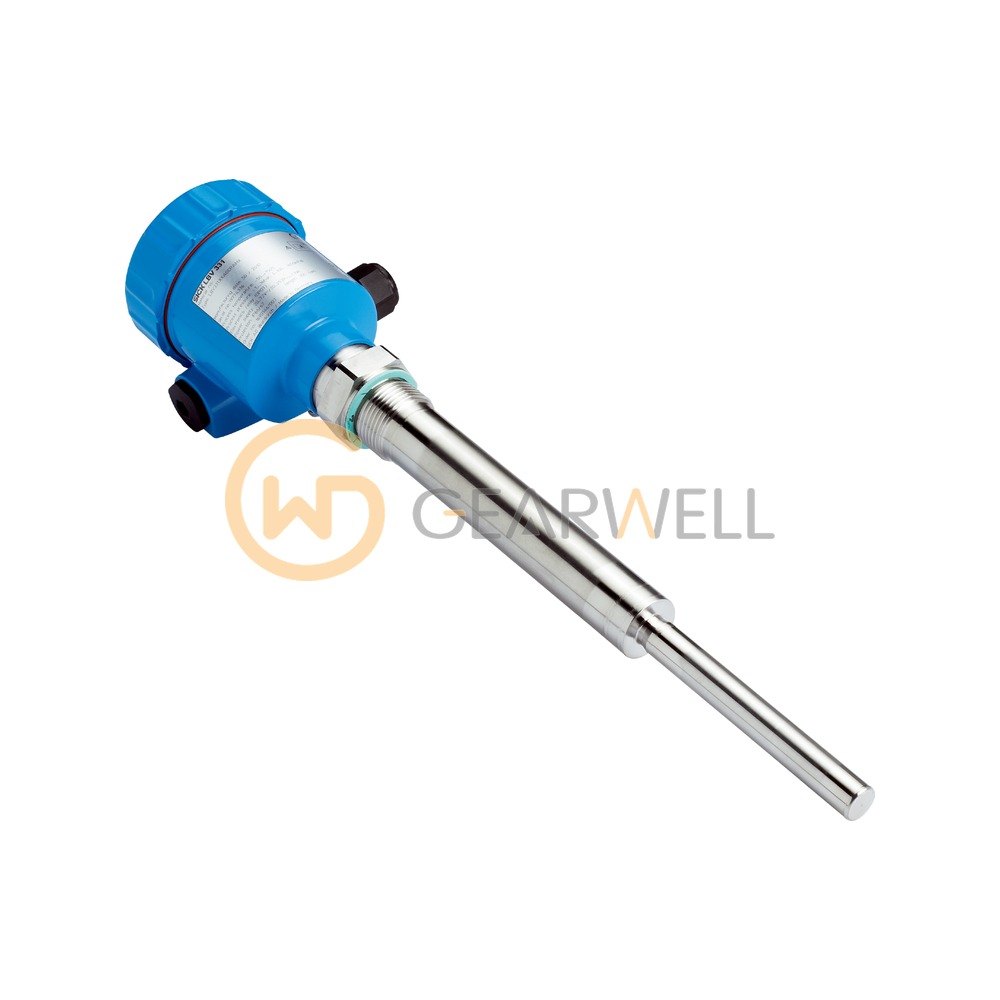

SICK 6059268 LBV331-XXACTRKMX0240 Vibrating Level Switch
- Brand
- SICK
- Model
- 6059268
- GEARWELL SKU
- GWP-000013868
- Category
- Pressure, Flow & Temperature
Key specifications
- Length
- 240 mm
- Output
- Relay (DPDT)
- Version
- Standard, tube extension
- Article number
- 6059268
- Supply voltage
- 20 ... 72 V DC / 20 ... 253 V AC (3 A)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 6059268 LBV331-XXACTRKMX0240 Vibrating Level Switch |
|---|---|
| Brand | SICK |
| Model | 6059268 |
| Category | Pressure, Flow & Temperature |
| Length | 240 mm |
| Output | Relay (DPDT) |
| Version | Standard, tube extension |
| Article number | 6059268 |
| Supply voltage | 20 ... 72 V DC / 20 ... 253 V AC (3 A) |
| Wetted material | 316L, Ra < 0.8 µm |
| Type designation | LBV331-XXACTRKMX0240 |
| Process connection | Tri-Clamp 1 1/2" |
| Process temperature | -50 ... +150 °C |
| Housing material / enclosure | Plastic; IP66, IP67; cable entry M20x1.5 |
