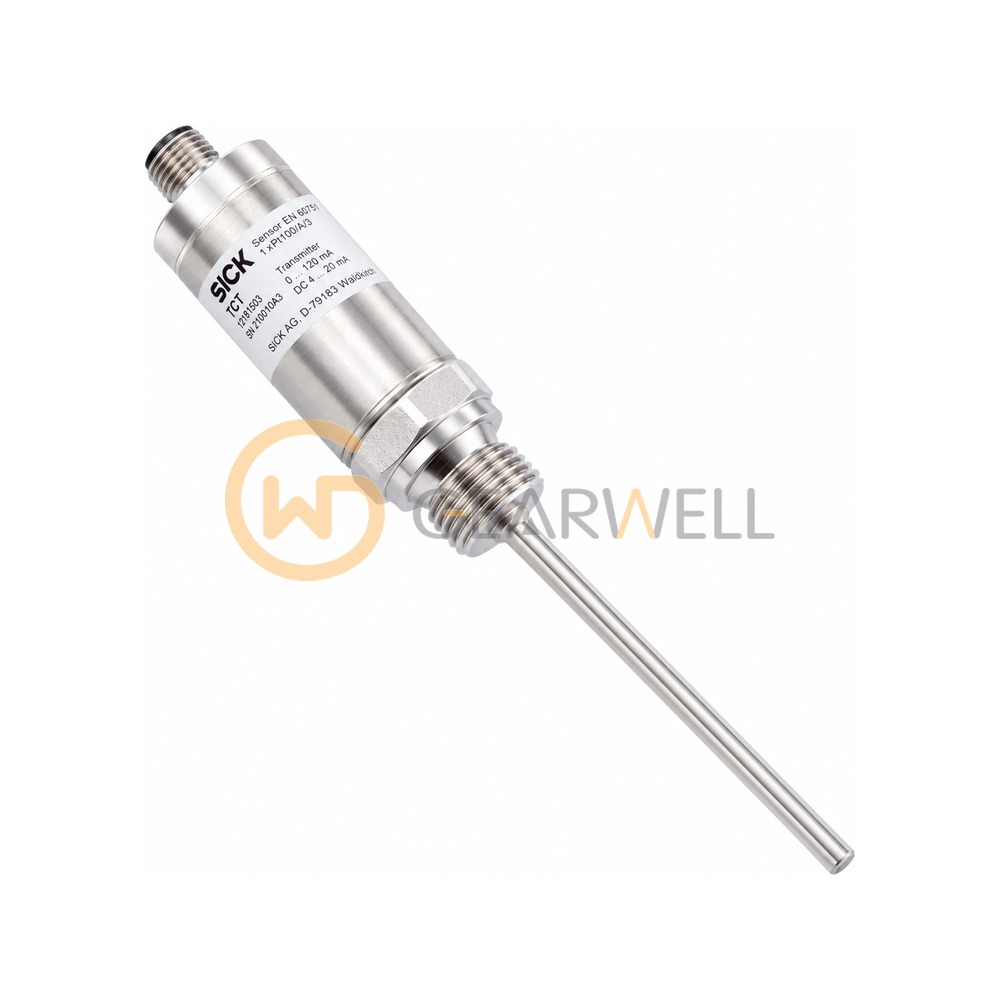

SICK 6043305 TCT-1PBSE1006MZ TCT Pt100 Temperature Sensor
- Brand
- SICK
- Model
- 6043305
- GEARWELL SKU
- GWP-000015187
- Category
- Pressure, Flow & Temperature
Key specifications
- Wetted parts
- Stainless steel 1.4571
- Output signal
- Pt100, 4-wire
- Article number
- 6043305
- Sensor element
- Pt100, class A (IEC 60751)
- Connection type
- M12 round connector, 4-pin
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 6043305 TCT-1PBSE1006MZ TCT Pt100 Temperature Sensor |
|---|---|
| Brand | SICK |
| Model | 6043305 |
| Category | Pressure, Flow & Temperature |
| Wetted parts | Stainless steel 1.4571 |
| Output signal | Pt100, 4-wire |
| Article number | 6043305 |
| Sensor element | Pt100, class A (IEC 60751) |
| Connection type | M12 round connector, 4-pin |
| Measuring range | -50 ... +250 °C |
| Enclosure rating | IP67 |
| Type designation | TCT-1PBSE1006MZ |
| Process connection | Compression fitting G ½ B, stainless steel ferrule |
| Maximum process pressure | ≤ 100 bar |
| Insertion length / probe diameter | 100 / 6 mm |
