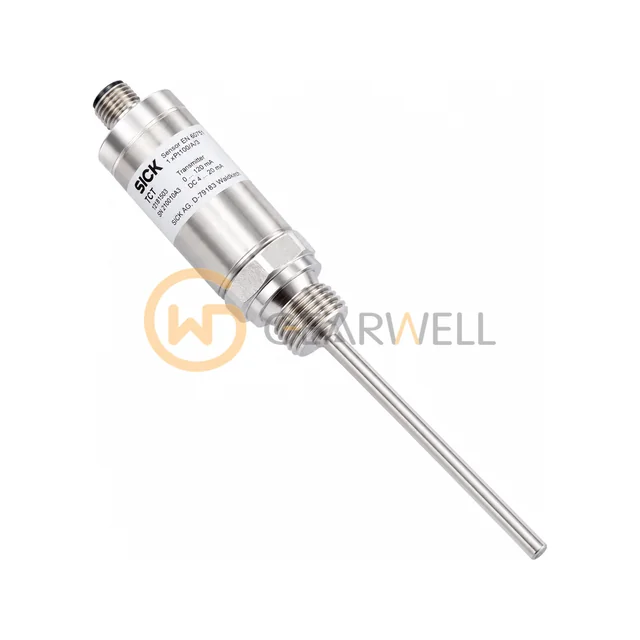

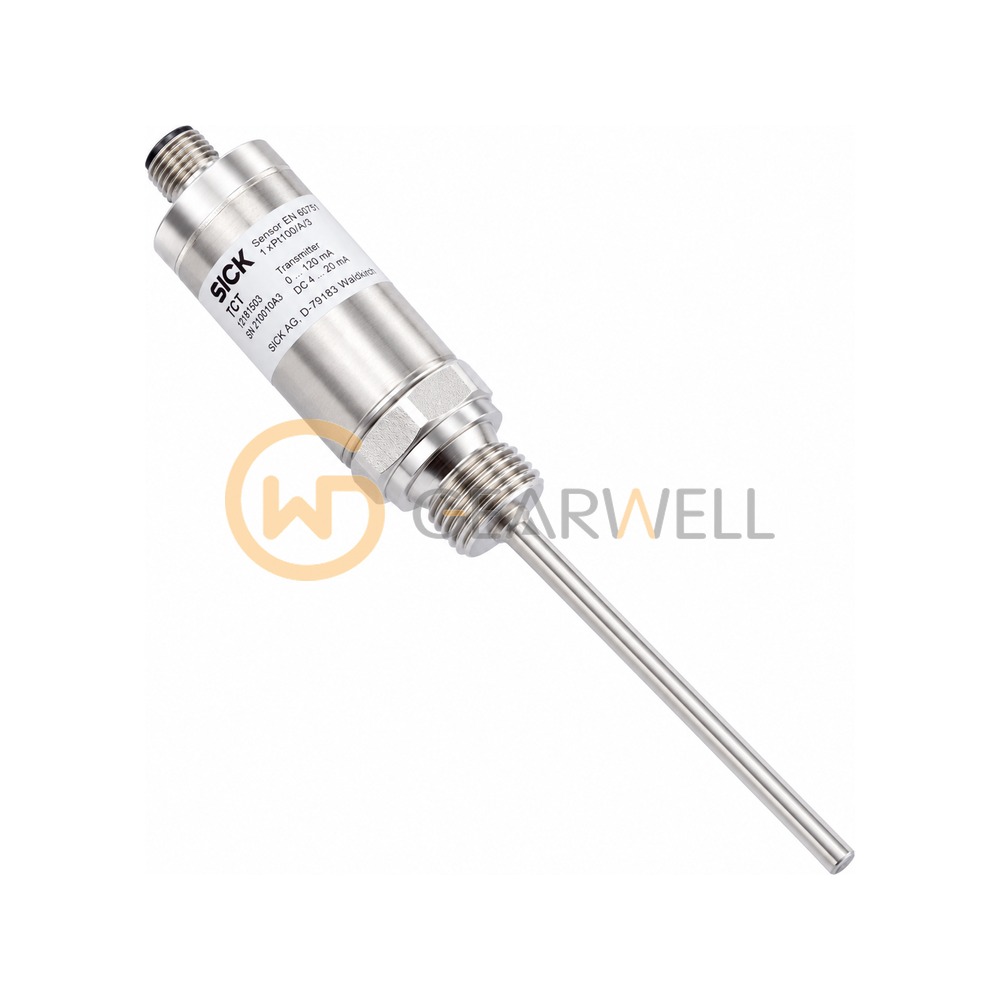

SICK 6043270 TCT-1PAS20253LZ TCT Pt100 Temperature Sensor
- Brand
- SICK
- Model
- 6043270
- GEARWELL SKU
- GWP-000015186
- Category
- Pressure, Flow & Temperature
Key specifications
- Wetted parts
- Stainless steel 1.4571
- Output signal
- Pt100, 4-wire
- Article number
- 6043270
- Sensor element
- Pt100, class A (IEC 60751)
- Connection type
- L-connector (DIN EN 175301-803 A), 4-pin
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 6043270 TCT-1PAS20253LZ TCT Pt100 Temperature Sensor |
|---|---|
| Brand | SICK |
| Model | 6043270 |
| Category | Pressure, Flow & Temperature |
| Wetted parts | Stainless steel 1.4571 |
| Output signal | Pt100, 4-wire |
| Article number | 6043270 |
| Sensor element | Pt100, class A (IEC 60751) |
| Connection type | L-connector (DIN EN 175301-803 A), 4-pin |
| Measuring range | -50 ... +150 °C |
| Enclosure rating | IP65 |
| Type designation | TCT-1PAS20253LZ |
| Process connection | Compression fitting ½'' NPT, CrNi stainless steel ferrule |
| Maximum process pressure | ≤ 100 bar |
| Insertion length / probe diameter | 25 / 3 mm |
