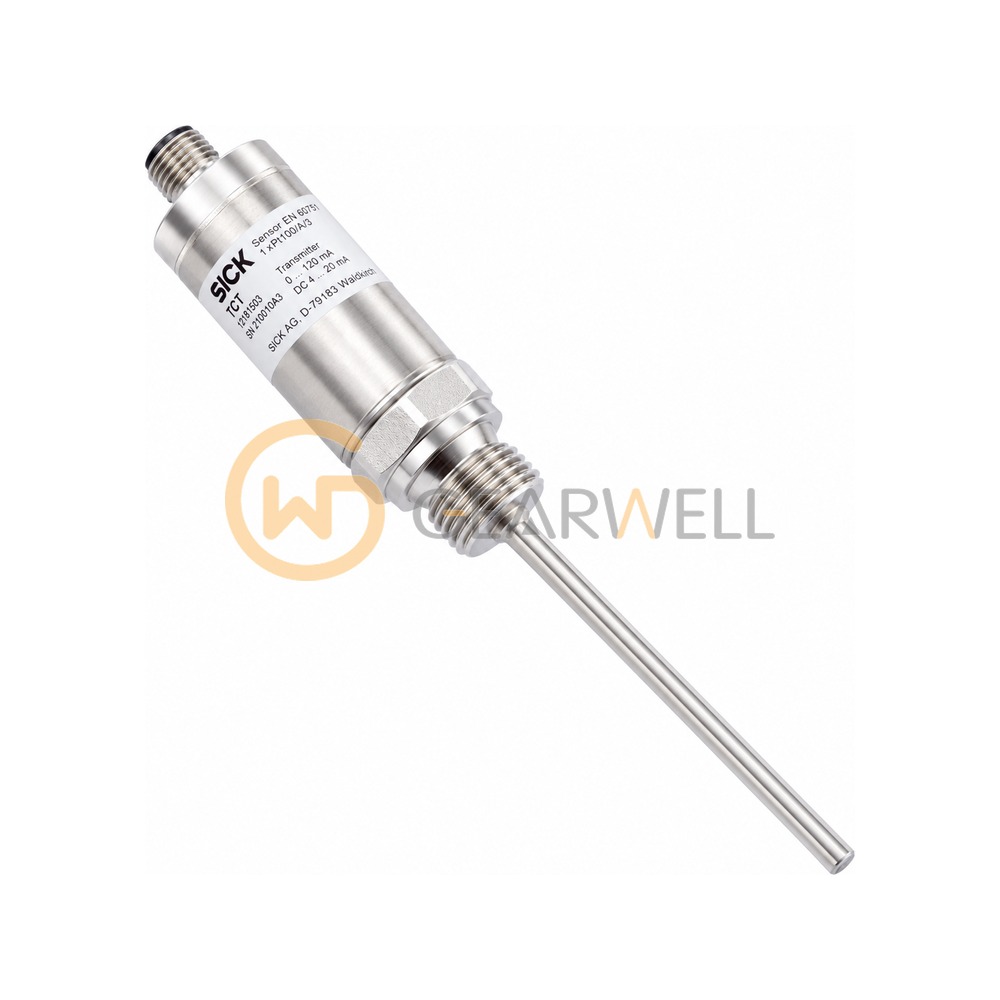

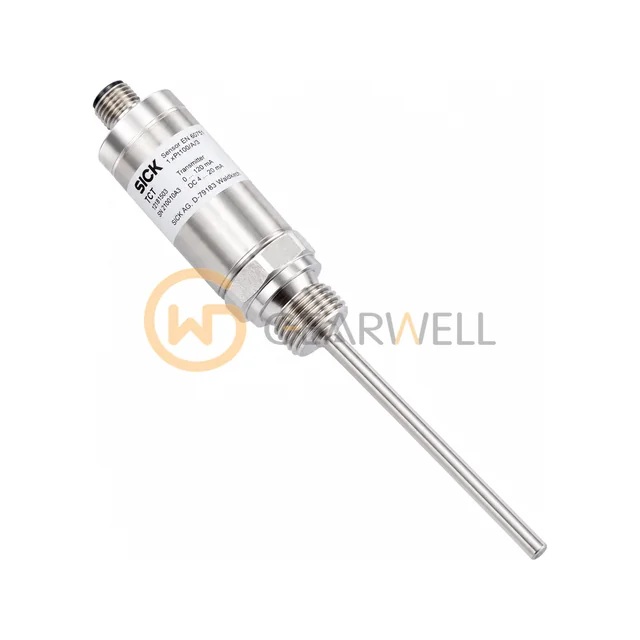

SICK 6043210 TCT-1AAG10253MZ TCT Temperature Transmitter
- Brand
- SICK
- Model
- 6043210
- GEARWELL SKU
- GWP-000015184
- Category
- Pressure, Flow & Temperature
Key specifications
- Wetted parts
- Stainless steel 1.4571
- Output signal
- 4 ... 20 mA, 2-wire
- Article number
- 6043210
- Sensor element
- Pt1000, class A (IEC 60751)
- Supply voltage
- 10 ... 35 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 6043210 TCT-1AAG10253MZ TCT Temperature Transmitter |
|---|---|
| Brand | SICK |
| Model | 6043210 |
| Category | Pressure, Flow & Temperature |
| Wetted parts | Stainless steel 1.4571 |
| Output signal | 4 ... 20 mA, 2-wire |
| Article number | 6043210 |
| Sensor element | Pt1000, class A (IEC 60751) |
| Supply voltage | 10 ... 35 V DC |
| Connection type | M12 round connector, 4-pin |
| Measuring range | -50 ... +150 °C |
| Enclosure rating | IP67 |
| Type designation | TCT-1AAG10253MZ |
| Process connection | Thread G ¼ B |
| Maximum process pressure | ≤ 120 bar |
| Insertion length / probe diameter | 25 / 3 mm |
