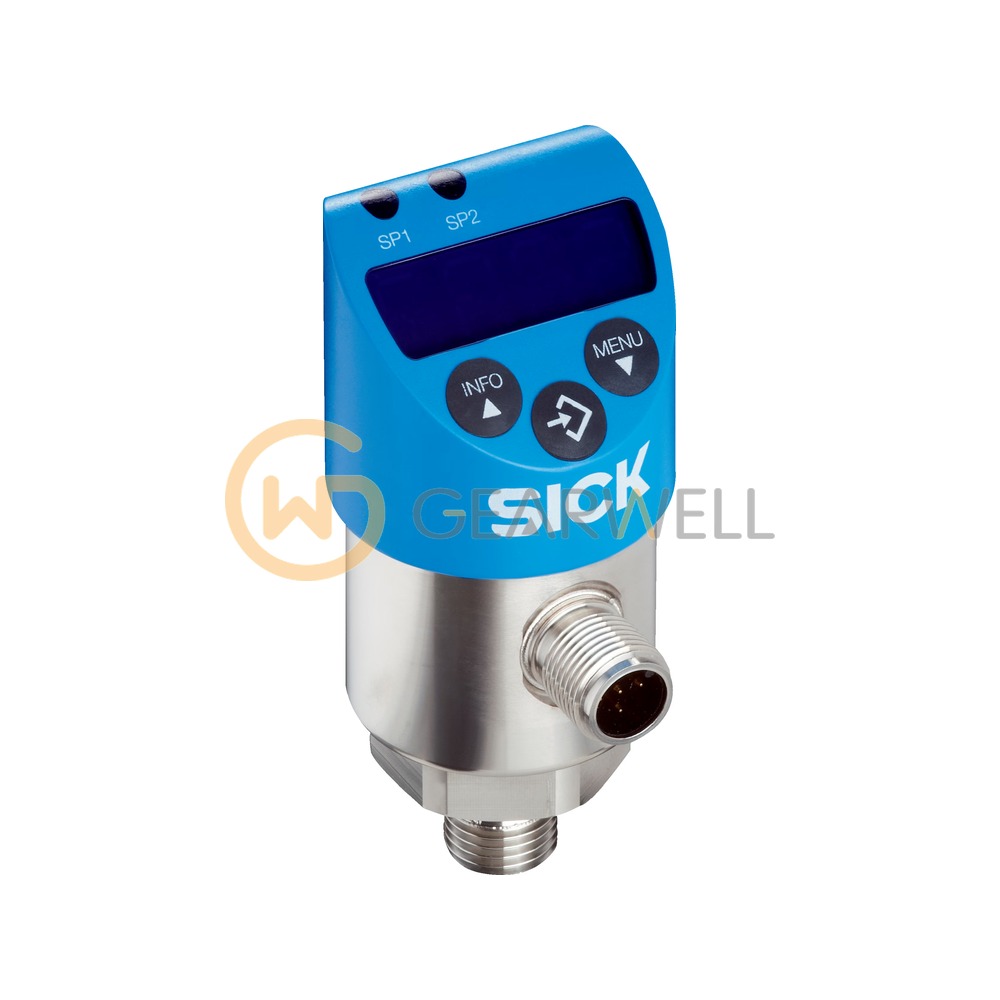

SICK 6039823 PBS-CB010SGESS0D5A0Z PBS Pressure Switch
- Brand
- SICK
- Model
- 6039823
- GEARWELL SKU
- GWP-000013795
- Category
- Pressure, Flow & Temperature
Key specifications
- Accuracy
- ≤ ±1 % of span
- Wetted parts
- Stainless steel 316L
- Output signal
- 2 x PNP + 4 ... 20 mA
- Pressure type
- Compound pressure
- Article number
- 6039823
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 6039823 PBS-CB010SGESS0D5A0Z PBS Pressure Switch |
|---|---|
| Brand | SICK |
| Model | 6039823 |
| Category | Pressure, Flow & Temperature |
| Accuracy | ≤ ±1 % of span |
| Wetted parts | Stainless steel 316L |
| Output signal | 2 x PNP + 4 ... 20 mA |
| Pressure type | Compound pressure |
| Article number | 6039823 |
| Supply voltage | 15 ... 35 V DC |
| Connection type | Round connector M12 x 1, 5-pin |
| Measuring range | -1 ... 9 bar |
| Type designation | PBS-CB010SGESS0D5A0Z |
| Process connection | G ½ B (EN 837) |
| Process temperature | -20 ... +85 °C |
