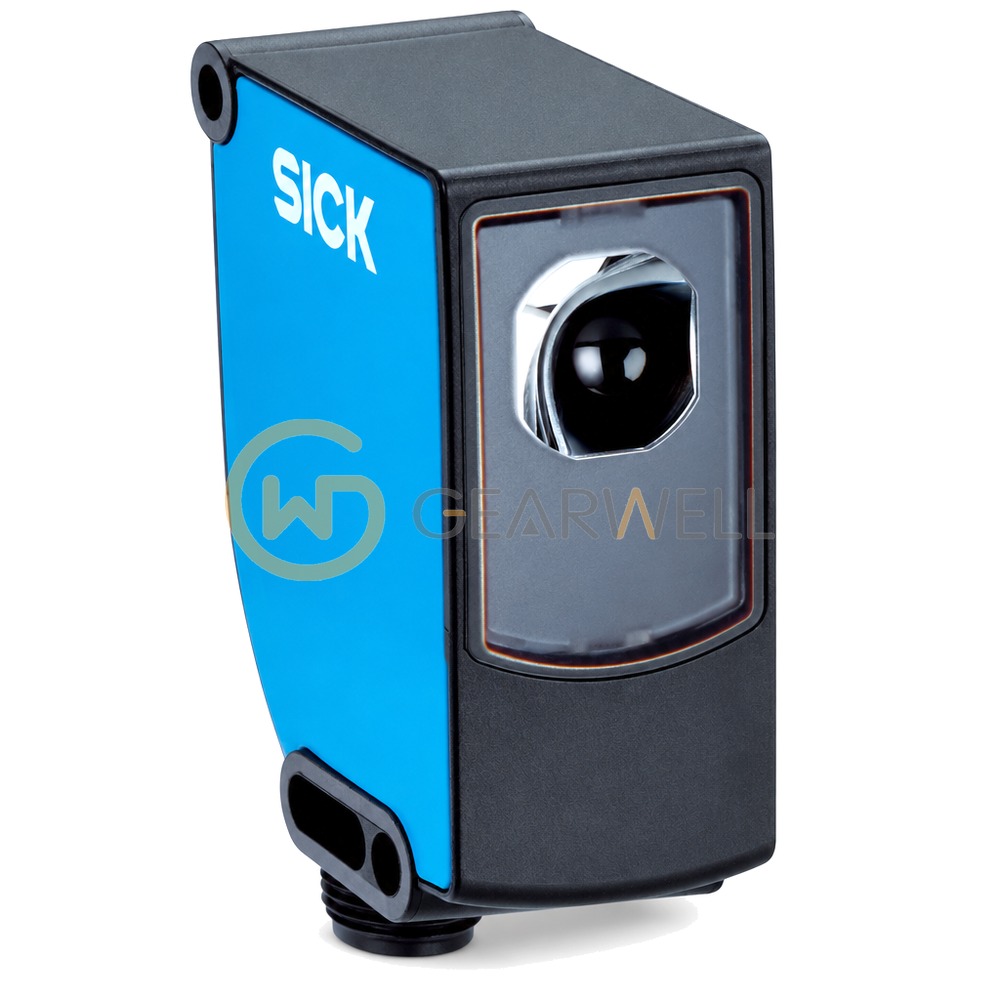

SICK 1219611 KTS Contrast Sensor
- Brand
- SICK
- Model
- 1219611
- GEARWELL SKU
- GWP-000027729
- Category
- Proximity & Photoelectric Sensors
Key specifications
- MTTFd
- 291 years
- Jitter
- 10 µs
- Weight
- 68 g
- Teach-in
- 2 teach-in buttons
- Connection
- Male connector M12, 4-pin
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 1219611 KTS Contrast Sensor |
|---|---|
| Brand | SICK |
| Model | 1219611 |
| Category | Proximity & Photoelectric Sensors |
| MTTFd | 291 years |
| Jitter | 10 µs |
| Weight | 68 g |
| Teach-in | 2 teach-in buttons |
| Connection | Male connector M12, 4-pin |
| Shock load | IEC 60068-2-27 (30 g / 11 ms) |
| Memory time | 35 ms, non-volatile |
| Wave length | 470 / 525 / 625 nm |
| Light source | LED, RGB |
| Response time | 20 µs |
| Device version | Easy Teach |
| Supply voltage | 10.8 ... 28.8 V DC |
| UL file number | E181493 |
| Light spot size | 1.2 x 3.9 mm |
| Optics material | COP |
| Residual ripple | ≤ 5 Vpp |
| Enclosure rating | IP67 |
| Housing material | VISTAL |
| Protection class | III |
| Sensing distance | ≤ 13 mm (tolerance ± 3 mm) |
| Switching output | NPN (HIGH = UV / LOW ≤ 3 V) |
| Specification note | Specifications from supplier data; please verify against the nameplate before ordering. |
| Switching function | Light/dark switching |
| Current consumption | < 100 mA |
| Output current Imax | 100 mA |
| Storage temperature | -25 ... +75 °C |
| Switching frequency | 25 kHz |
| Dimensions (W x H x D) | 26 x 62 x 47.5 mm |
| Light spot orientation | Longitudinal |
| Ambient operating temperature | -20 ... +60 °C |
