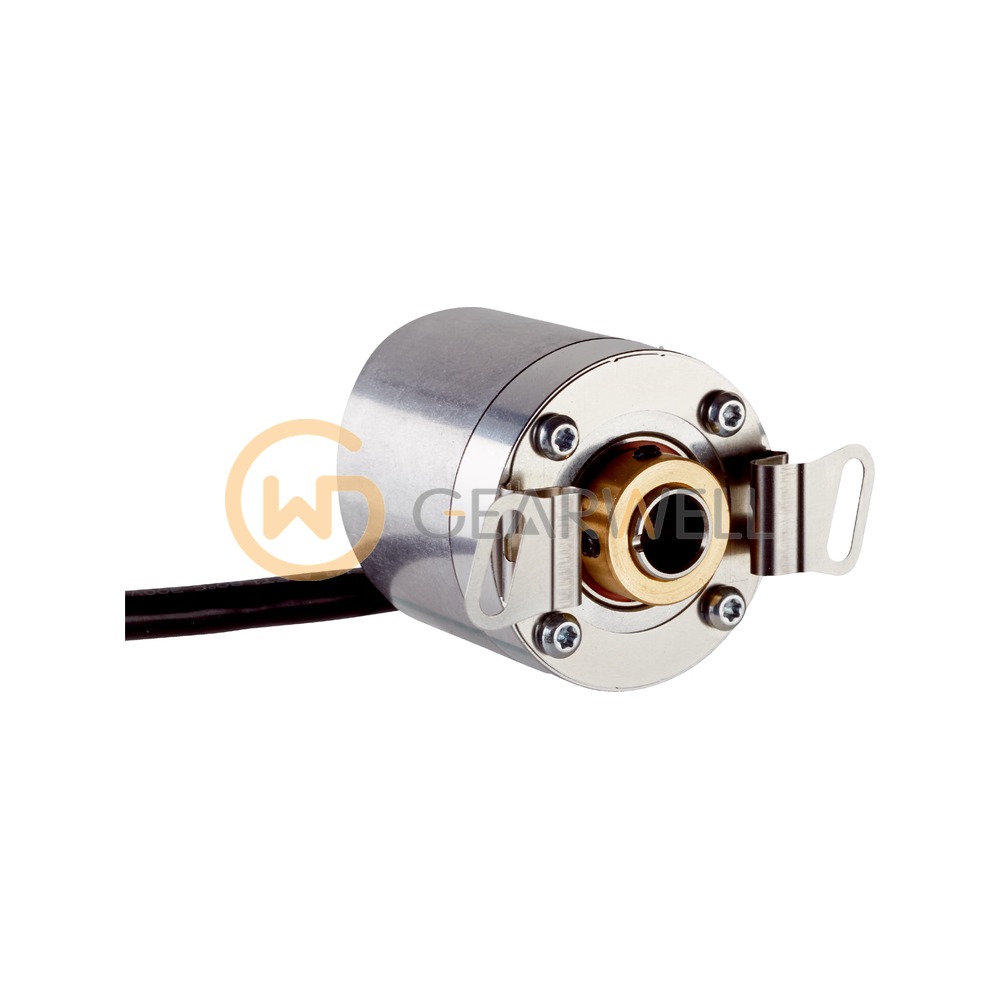

SICK 1060534 DBS36E-BBEK01024 Incremental Encoder
- Brand
- SICK
- Model
- 1060534
- GEARWELL SKU
- GWP-000013768
- Category
- Encoders & Position
Key specifications
- Article number
- 1060534
- Supply voltage
- 7-30 V V
- Connection type
- Cable, 8-wire, universal, 1.5 m
- Enclosure rating
- IP65
- Output frequency
- ≤ 300 kHz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 1060534 DBS36E-BBEK01024 Incremental Encoder |
|---|---|
| Brand | SICK |
| Model | 1060534 |
| Category | Encoders & Position |
| Article number | 1060534 |
| Supply voltage | 7-30 V V |
| Connection type | Cable, 8-wire, universal, 1.5 m |
| Enclosure rating | IP65 |
| Output frequency | ≤ 300 kHz |
| Type designation | DBS36E-BBEK01024 |
| Mechanical design | Blind hollow shaft, 8 mm Front clamp |
| Operating temperature | –20 °C ... +85 °C, –35 °C ... +95 °C on request |
| Pulses per revolution | 1,024 |
| Communication interface | HTL / Push-Pull |
