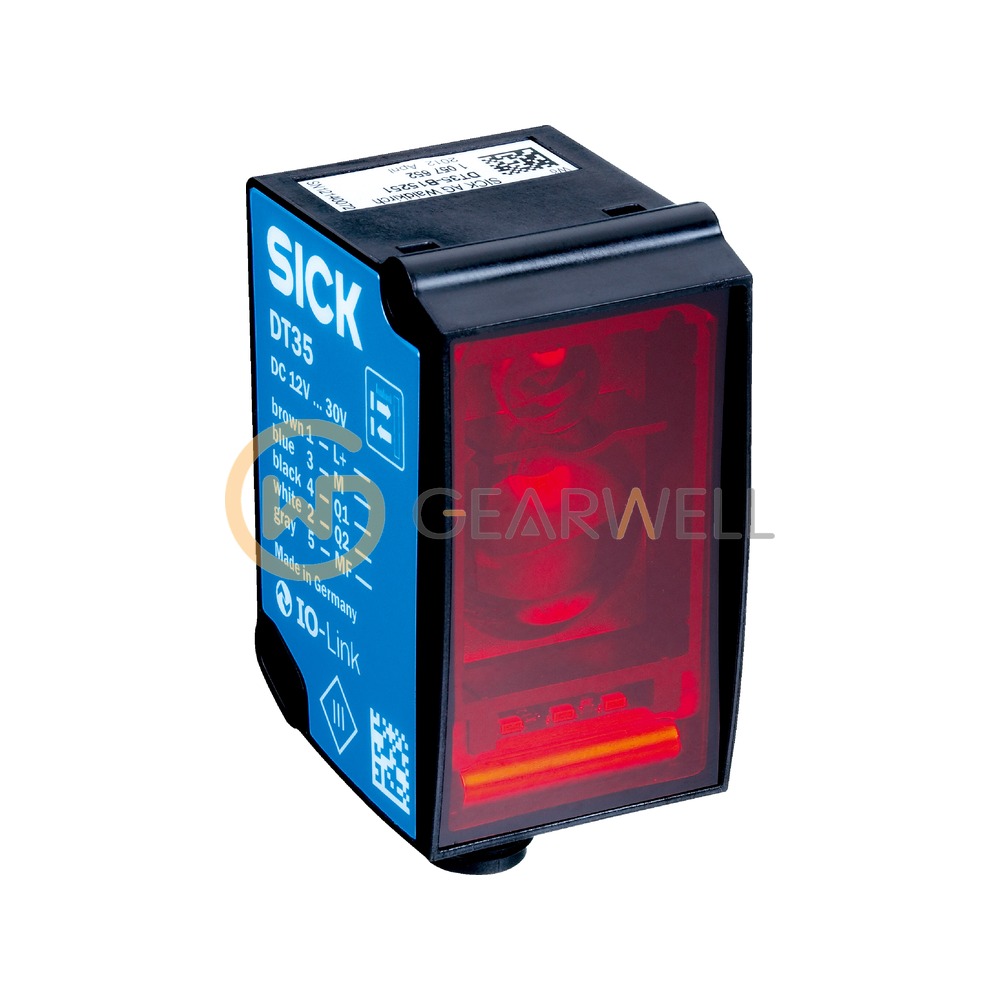

SICK 1057652 DT35-B15251 Laser Distance Sensor
- Brand
- SICK
- Model
- 1057652
- GEARWELL SKU
- GWP-000009612
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Type code
- DT35-B15251
- Laser class
- 2
- Light source
- Laser, red
- Digital output
- 1 ... 2 x push-pull: PNP/NPN
- Measuring range
- 50 mm ... 12,000 mm, 90% remission factor, 50 mm ... 5,300 mm, 18% remission factor, 50 mm ... 3,100 mm, 6% remission factor
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 1057652 DT35-B15251 Laser Distance Sensor |
|---|---|
| Brand | SICK |
| Model | 1057652 |
| Category | Proximity & Photoelectric Sensors |
| Type code | DT35-B15251 |
| Laser class | 2 |
| Light source | Laser, red |
| Digital output | 1 ... 2 x push-pull: PNP/NPN |
| Measuring range | 50 mm ... 12,000 mm, 90% remission factor, 50 mm ... 5,300 mm, 18% remission factor, 50 mm ... 3,100 mm, 6% remission factor |
| Minimum response time | 2.5 ms |
| Type of analog output | Current output / voltage output |
| Multifunctional input (MF) | 1 x |
