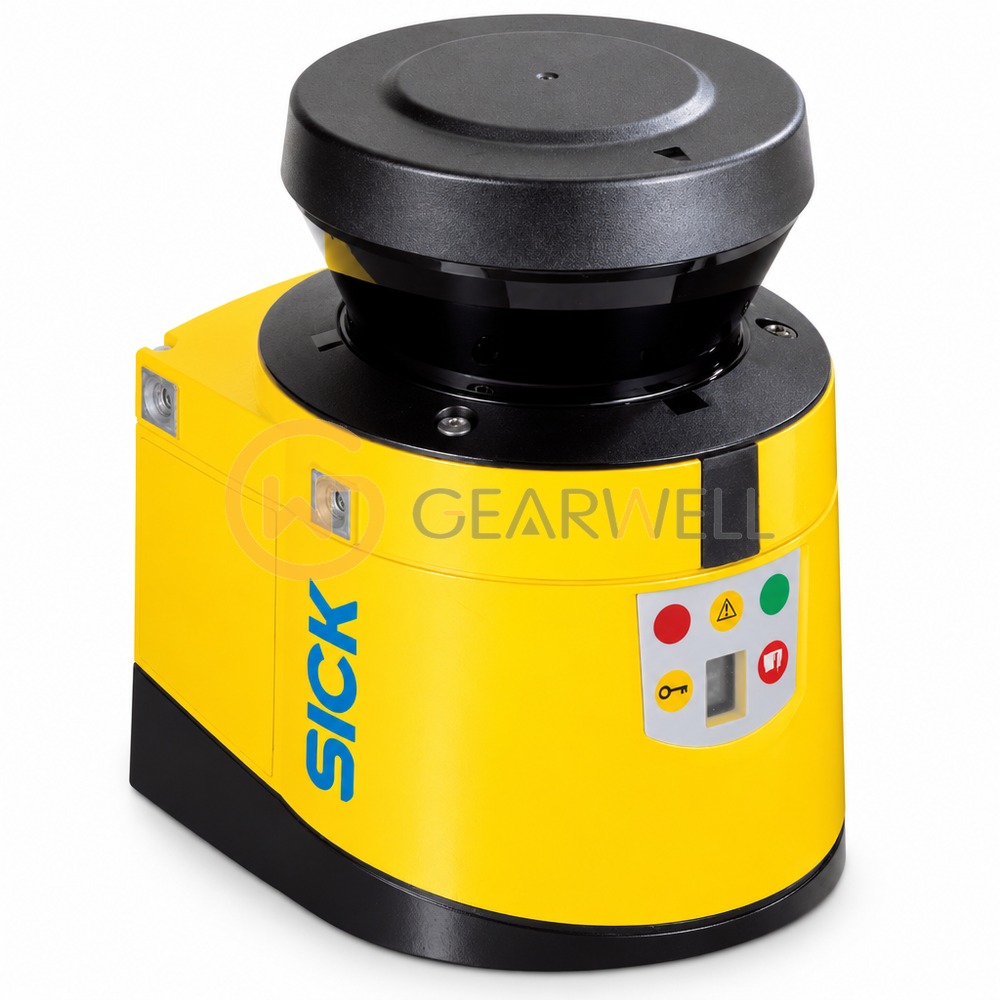

SICK 1056428 S300 Safety Laser Scanner
- Brand
- SICK
- Model
- 1056428
- GEARWELL SKU
- GWP-000027725
- Category
- Machine Safety & Vision
Key specifications
- PFHd
- 8.0 x 10^-8
- Type
- Type 3 (IEC 61496)
- Weight
- 1.2 kg
- Version
- Sensor without system plug
- Connection
- System plug, with or without connecting cable
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 1056428 S300 Safety Laser Scanner |
|---|---|
| Brand | SICK |
| Model | 1056428 |
| Category | Machine Safety & Vision |
| PFHd | 8.0 x 10^-8 |
| Type | Type 3 (IEC 61496) |
| Weight | 1.2 kg |
| Version | Sensor without system plug |
| Connection | System plug, with or without connecting cable |
| Laser class | 1 (21 CFR 1040.10 and 1040.11, IEC 60825-1) |
| Light source | Pulsed laser diode, 905 nm |
| Configuration | PC with CDS (Configuration & Diagnostic Software) |
| Housing color | RAL 1021 (rape yellow) |
| Response time | 80 ms |
| Universal I/O | 5 |
| Data interface | RS-422, ≤ 500 kBaud |
| Field set type | Triple field |
| Scanning angle | 270 ° |
| Supply voltage | 24 V DC (16.8 ... 30 V DC) |
| Mission time (TM) | 20 years (EN ISO 13849) |
| Enclosure rating | IP65 (EN 60529) |
| Housing material | Aluminum die-cast |
| Protection class | III (EN 50178, EN 60950) |
| Performance level | PL d (EN ISO 13849) |
| Angular resolution | 0.5 ° |
| Diagnostic outputs | 3 x 100 mA |
| Product sub-family | S300 Advanced |
| Specification note | Specifications from supplier data; please verify against the nameplate before ordering. |
| Current consumption | 0.33 A / 1.7 A |
| Safety outputs (OSSD) | 2 x 250 mA |
| Storage temperature | -25 ... +50 °C |
| Warning field range | 8 m (at 15% reflectance) |
| Dimensions (W x H x D) | 102 x 152 x 106 mm |
| Number of field sets | 4 |
| Optics cover material | Polycarbonate |
| Static control inputs | 2 |
| Protective field range | 3 m |
| Safety integrity level | SIL 2 (IEC 61508) |
| Number of stored fields | 12 |
| Resolution (configurable) | 30 / 40 / 50 / 70 / 150 mm |
| Distance measuring range | 30 m |
| Number of monitoring cases | 4 |
| Ambient operating temperature | -10 ... +50 °C |
| Static control inputs with EFI | 5 |
| Configuration and diagnostic interface | RS-232 |
