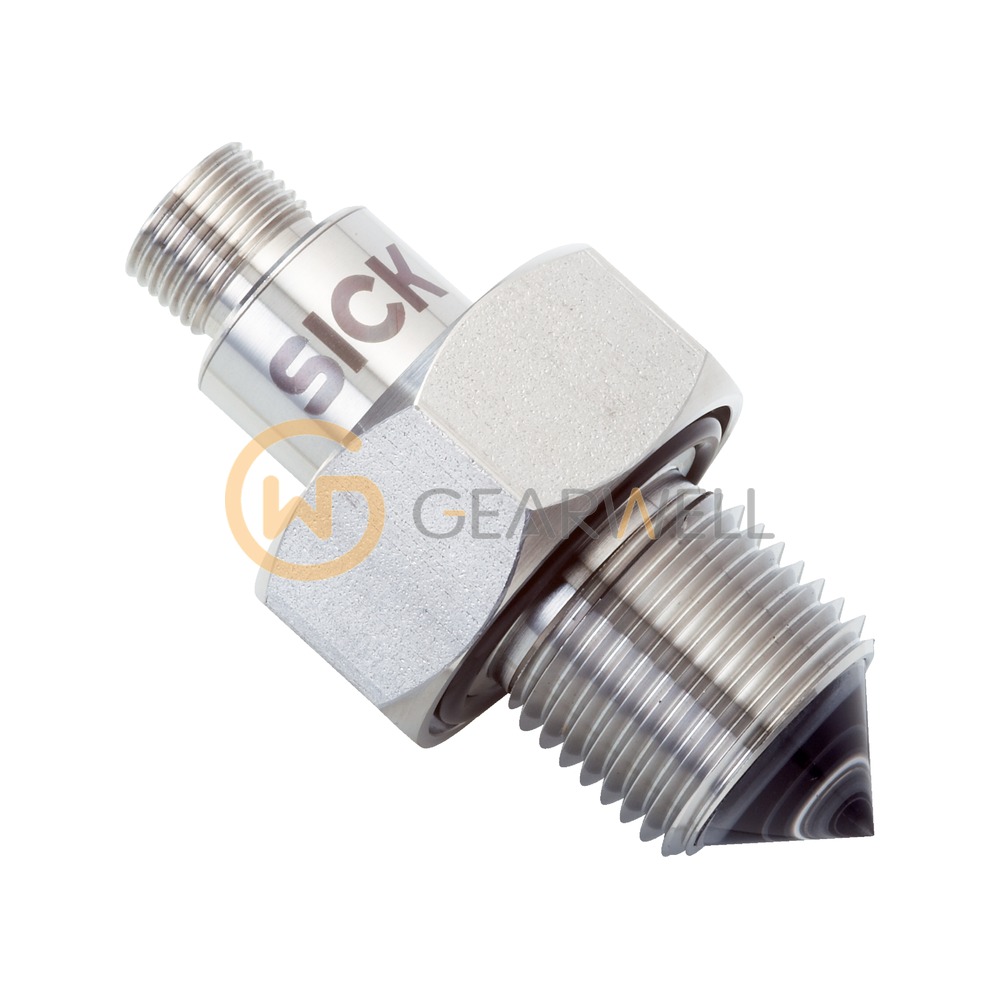

SICK 1052272 MHF15-21NG1NSM MHF15 Optical Level Switch
- Brand
- SICK
- Model
- 1052272
- GEARWELL SKU
- GWP-000013764
- Category
- Pressure, Flow & Temperature
Key specifications
- Output signal
- 1 x NPN
- Article number
- 1052272
- Supply voltage
- 10-30 V DC
- Switching mode
- Normally closed
- Connection type
- M12 round connector, 4-pin
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 1052272 MHF15-21NG1NSM MHF15 Optical Level Switch |
|---|---|
| Brand | SICK |
| Model | 1052272 |
| Category | Pressure, Flow & Temperature |
| Output signal | 1 x NPN |
| Article number | 1052272 |
| Supply voltage | 10-30 V DC |
| Switching mode | Normally closed |
| Connection type | M12 round connector, 4-pin |
| Enclosure rating | IP67, IP69K |
| Process pressure | -0.5 ... 16 bar |
| Type designation | MHF15-21NG1NSM |
| Process connection | G 1/2 |
| Process temperature | -25 ... +55 °C |
