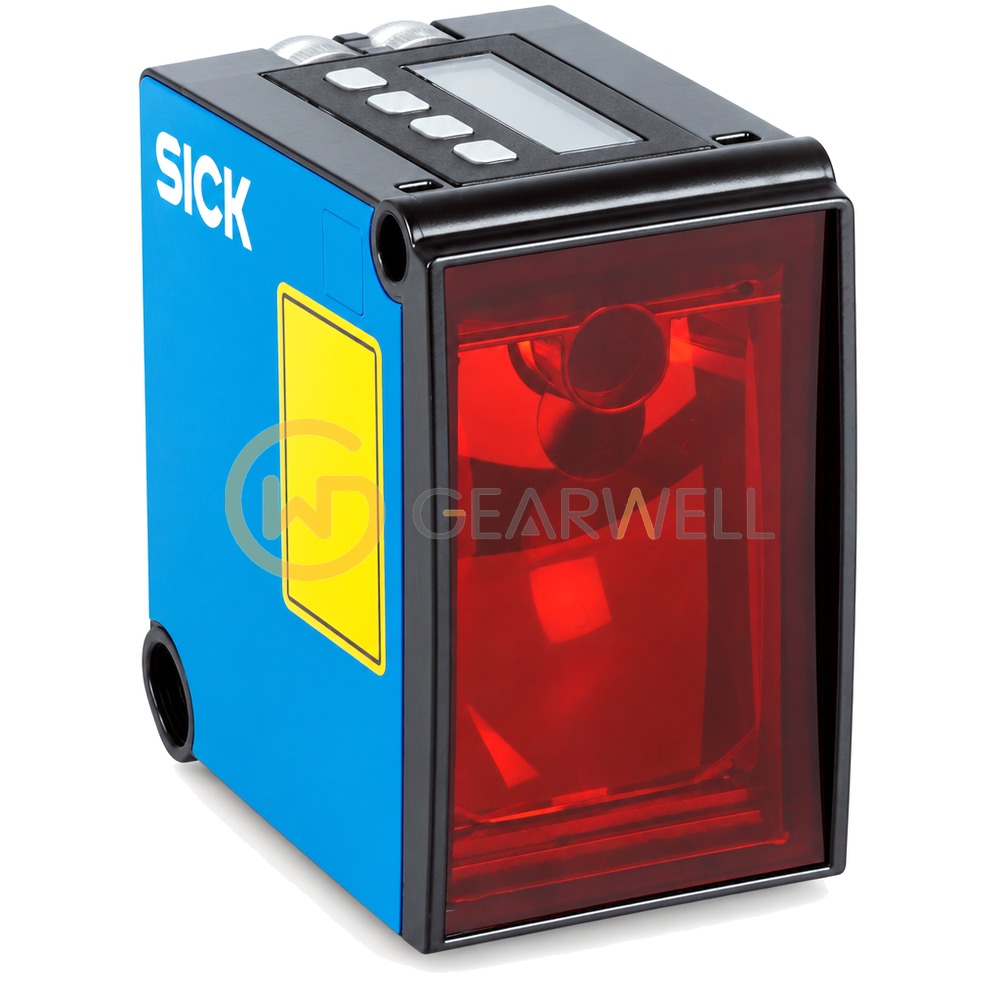

SICK 1044369 Dx50 Laser Distance Sensor

Key specifications

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	SICK 1044369 Dx50 Laser Distance Sensor
Brand	SICK
Model	1044369
Category	Proximity & Photoelectric Sensors
MTTFd	101 years
Target	Natural objects
Weight	200 g
Display	LC display, 2 x LED
Accuracy	± 10 mm
Connection	Male connector M12, 5-pin
Resolution	16 bit
Laser class	2 (IEC 60825-1:2014, EN 60825-1:2014)
Output time	≥ 4 ms
Light source	Laser, visible red light
Analog output	Current output 4 ... 20 mA, ≤ 300 Ω
Repeatability	≥ 2.5 mm
Response time	20 ... 30 ms
Supply voltage	10 ... 30 V DC
Measuring range	200 ... 10,000 (90% remission); 200 ... 6,500 (18% remission); 200 ... 4,000 (6% remission) mm
Residual ripple	≤ 5 Vpp
Enclosure rating	IP65
Housing material	Metal (zinc die-cast)
Protection class	III
Power consumption	≤ 2.1 W
Max. output current	≤ 100 mA
Specification note	Specifications from supplier data; please verify against the nameplate before ordering.
Initialization time	≤ 250 ms
Storage temperature	-40 ... +75 °C
Dimensions (W x H x D)	36.1 x 62.7 x 57.7 mm
Front screen material	Plastic (PMMA)
Ambient light immunity	40,000 lx
Typical light spot size	15 x 15 mm at 10 m
Multifunctional input (MF)	1
Ambient operating temperature	-30 ... +65 °C
