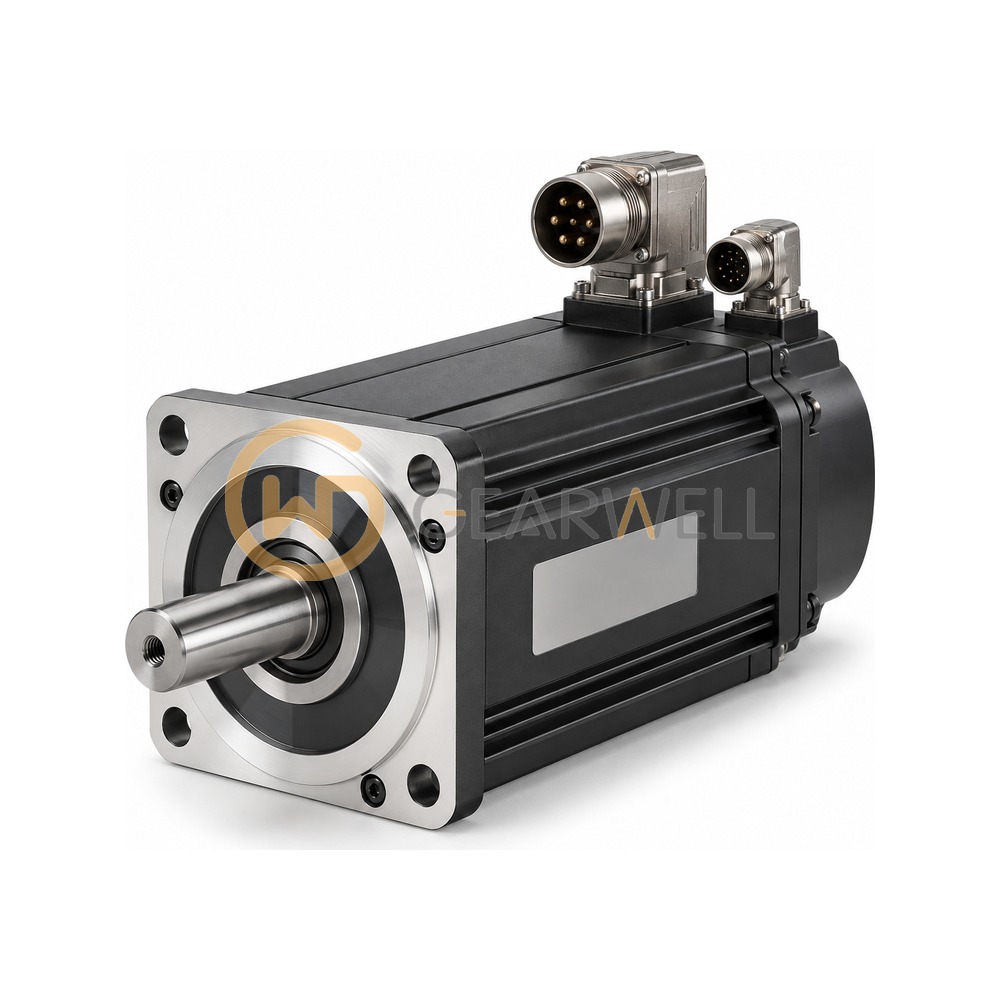

SEW-EURODRIVE CMP63M/KY/ES1H/SM1 CMP Synchronous Servomotor
- Brand
- SEW-EURODRIVE
- Model
- CMP63M/KY/ES1H/SM1
- GEARWELL SKU
- GWP-000013311
- Category
- Servo Systems
Key specifications
- Motor size
- CMP63M (63 = size, M = medium)
- Encoder /ES1H
- HIPERFACE single-turn, 1024 sin/cos periods, 15-bit
- Connection /SM1
- SM plug connector for motor without brake (SB = brake motor); digit "1" as collected
- Static torque M0
- 5.3 Nm
- Rated speed options
- 3000 / 4500 / 6000 rpm (not given in collected code; specify on order)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SEW-EURODRIVE CMP63M/KY/ES1H/SM1 CMP Synchronous Servomotor |
|---|---|
| Brand | SEW-EURODRIVE |
| Model | CMP63M/KY/ES1H/SM1 |
| Category | Servo Systems |
| Motor size | CMP63M (63 = size, M = medium) |
| Encoder /ES1H | HIPERFACE single-turn, 1024 sin/cos periods, 15-bit |
| Connection /SM1 | SM plug connector for motor without brake (SB = brake motor); digit "1" as collected |
| Static torque M0 | 5.3 Nm |
| Rated speed options | 3000 / 4500 / 6000 rpm (not given in collected code; specify on order) |
| Max. limit torque Mmax | 21.4 Nm |
| Temperature sensor /KY | KY semiconductor temperature sensor (later replaced by /PK) |
| Mass moment of inertia Jmot | 1.92 kgcm² |
