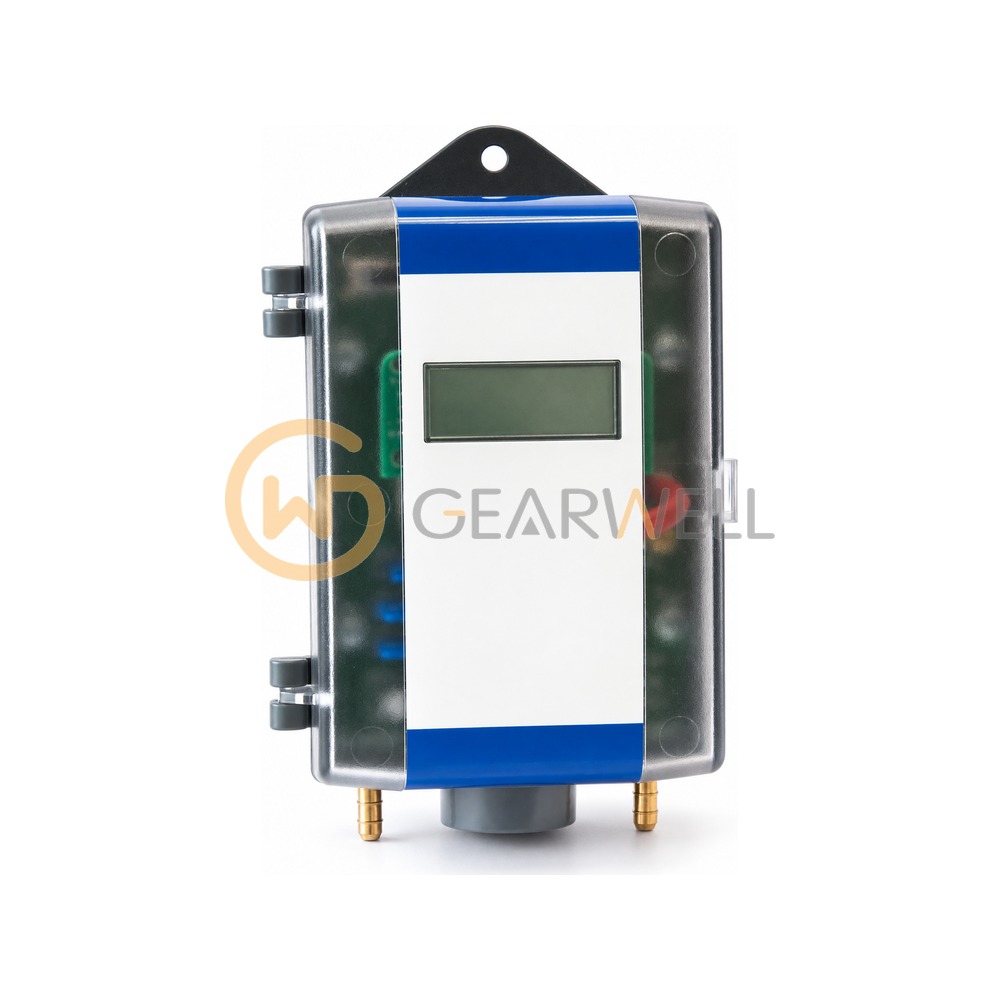

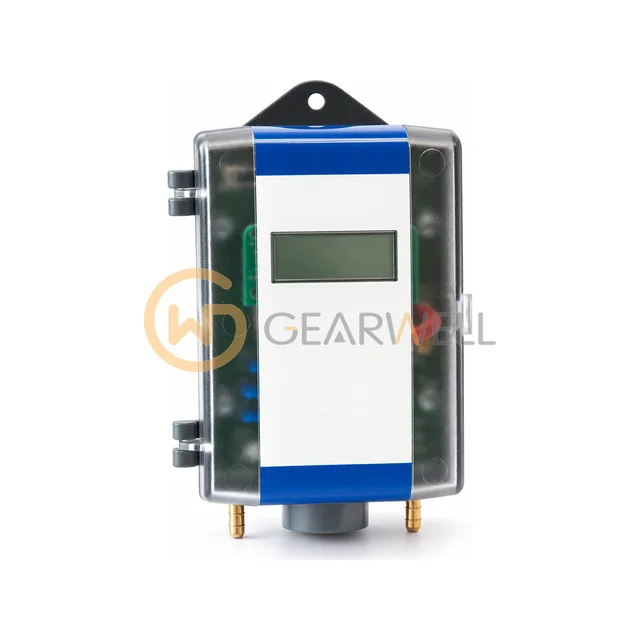

Setra MRGDA MRG Multi-Range Differential Pressure Transducer
- Brand
- Setra
- Model
- MRGDA
- GEARWELL SKU
- GWP-000015188
- Category
- Pressure, Flow & Temperature
Key specifications
- Excitation
- 13-30 VDC / 18-24 VAC (voltage output); 13-30 VDC (4-20 mA)
- Accuracy RSS
- ±1.0 % FS
- Housing rating
- IP67
- Pressure fitting
- 3/16 in. O.D. barbed brass
- Configuration (code D)
- DIN rail
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Setra MRGDA MRG Multi-Range Differential Pressure Transducer |
|---|---|
| Brand | Setra |
| Model | MRGDA |
| Category | Pressure, Flow & Temperature |
| Excitation | 13-30 VDC / 18-24 VAC (voltage output); 13-30 VDC (4-20 mA) |
| Accuracy RSS | ±1.0 % FS |
| Housing rating | IP67 |
| Pressure fitting | 3/16 in. O.D. barbed brass |
| Configuration (code D) | DIN rail |
| Operating temperature | 0 to 50 °C |
| Field selectable ranges | 0.5 / 1.0 / 2.5 / 5.0 in. W.C. (100 / 250 / 500 / 1000 Pa), uni- or bidirectional |
| Output (field selectable) | 0-5 V, 0-10 V (3-wire), 4-20 mA (2-wire) |
| Electrical fitting (code A) | 1/2 in. conduit |
