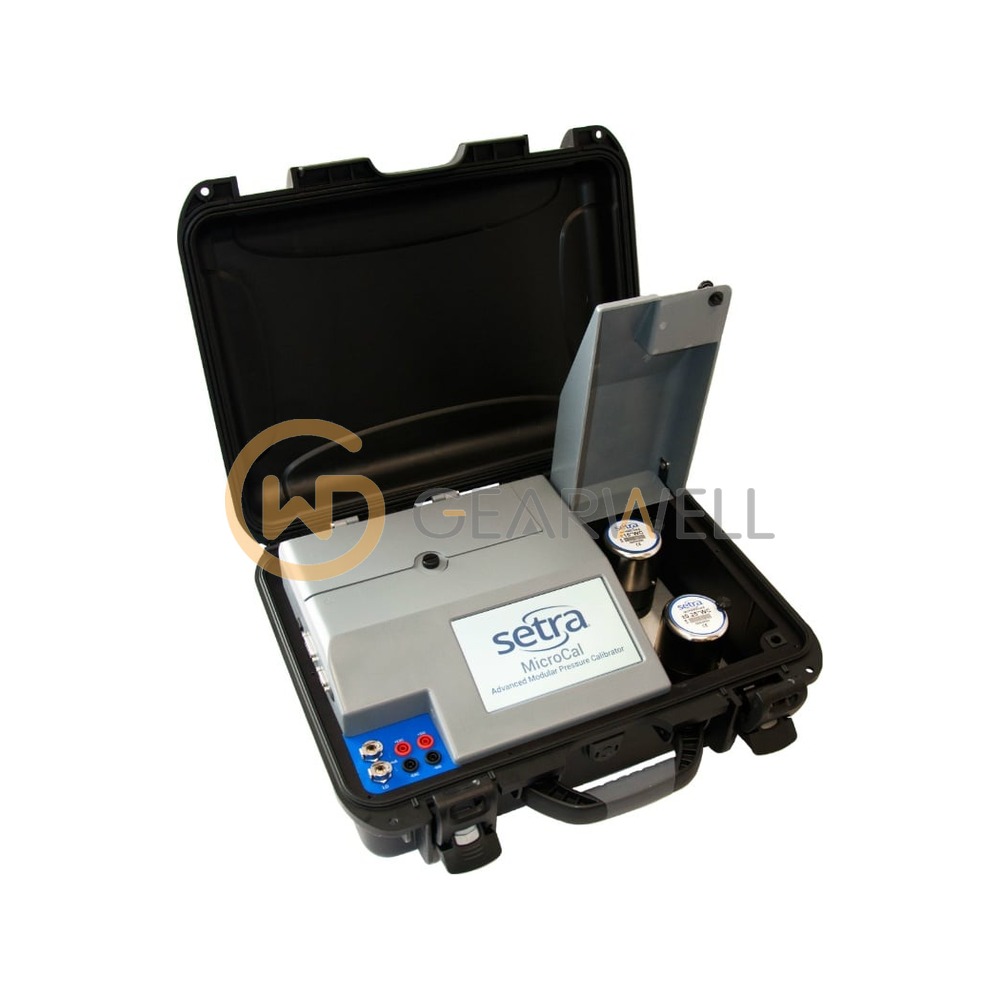

Setra MCALLNL MicroCal Automated Pressure Calibrator
- Brand
- Setra
- Model
- MCALLNL
- GEARWELL SKU
- GWP-000014030
- Category
- Test & Measurement
Key specifications
- Power
- 24 VDC (110/220 V adapter included)
- Battery
- Li-ion 6.75 Ah, up to 8 h
- Display
- 7 in. touchscreen
- Code suffix "L"
- as collected (seller describes it as LEMO connector option); not listed in the official model-number table
- Communications
- RS232
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Setra MCALLNL MicroCal Automated Pressure Calibrator |
|---|---|
| Brand | Setra |
| Model | MCALLNL |
| Category | Test & Measurement |
| Power | 24 VDC (110/220 V adapter included) |
| Battery | Li-ion 6.75 Ah, up to 8 h |
| Display | 7 in. touchscreen |
| Code suffix "L" | as collected (seller describes it as LEMO connector option); not listed in the official model-number table |
| Communications | RS232 |
| Required accessory | At least one MCPM pressure reference module |
| Pressure control range (code L) | Low, up to 0-30 in. W.C. |
| Electro-pneumatic interface (code N) | Standard user interface with 6 ft tubing |
| Pressure uncertainty, high range (max range >=1 in. W.C.) | ±0.1% reading ±0.016% FS |
