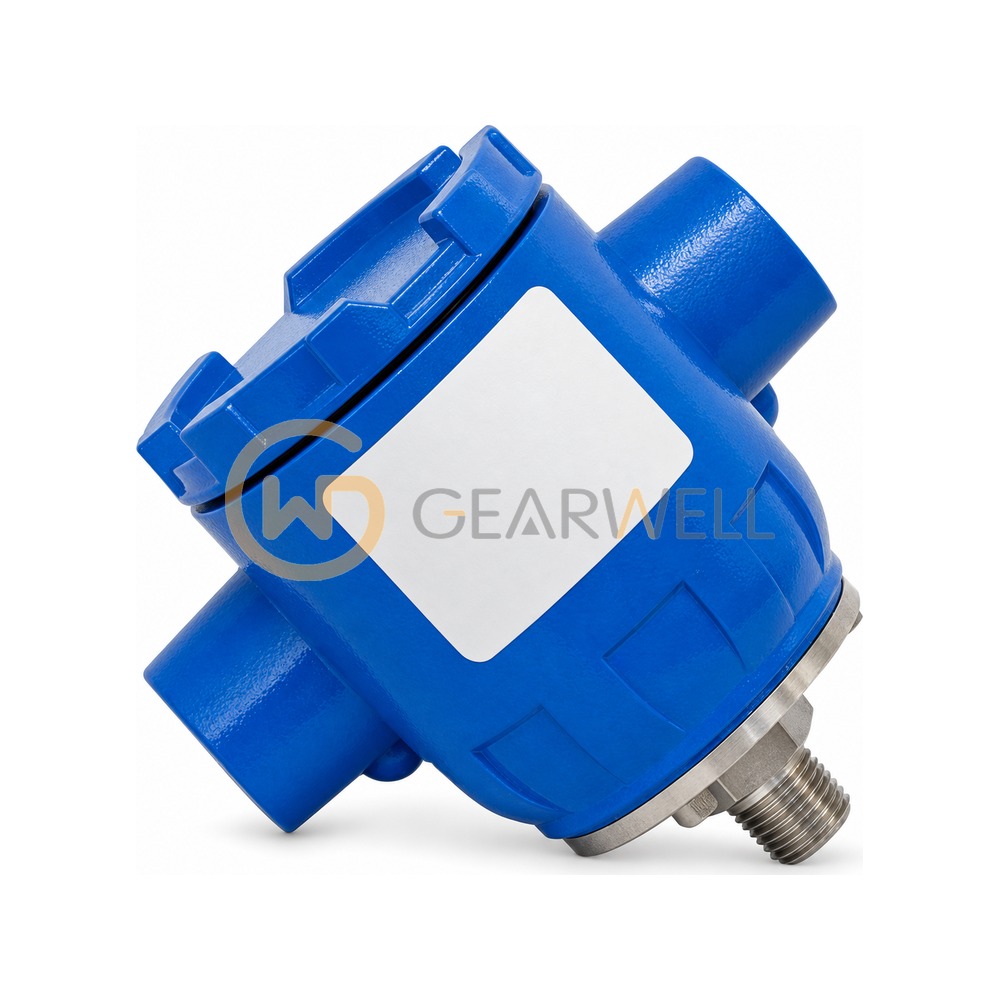

Setra 2561010BG2M11C Model 256 Pressure Transducer
- Brand
- Setra
- Model
- 2561010BG2M11C
- GEARWELL SKU
- GWP-000016485
- Category
- Pressure, Flow & Temperature
Key specifications
- Option
- C = Calibration certificate
- Output
- 11 = 4-20 mA
- Enclosure
- Die-cast aluminum, NEMA 4/IP65
- Model code
- 2561 = Model 256
- Range code
- 010B (bar range code; the data-sheet table line prints 0 to 8)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Setra 2561010BG2M11C Model 256 Pressure Transducer |
|---|---|
| Brand | Setra |
| Model | 2561010BG2M11C |
| Category | Pressure, Flow & Temperature |
| Option | C = Calibration certificate |
| Output | 11 = 4-20 mA |
| Enclosure | Die-cast aluminum, NEMA 4/IP65 |
| Model code | 2561 = Model 256 |
| Range code | 010B (bar range code; the data-sheet table line prints 0 to 8) |
| Pressure type | G = Gauge |
| Pressure fitting | 2M = 1/4" NPT male |
| Operating temperature | -40 to +85 °C |
