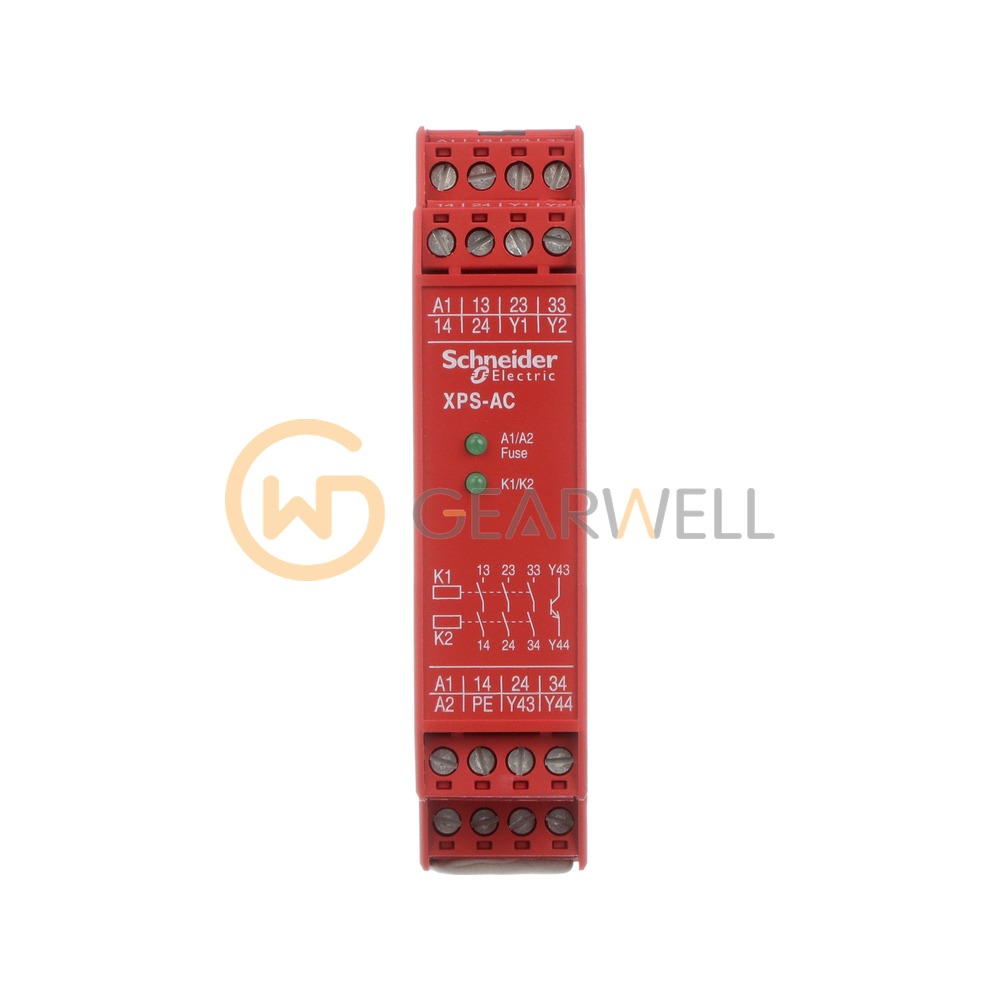

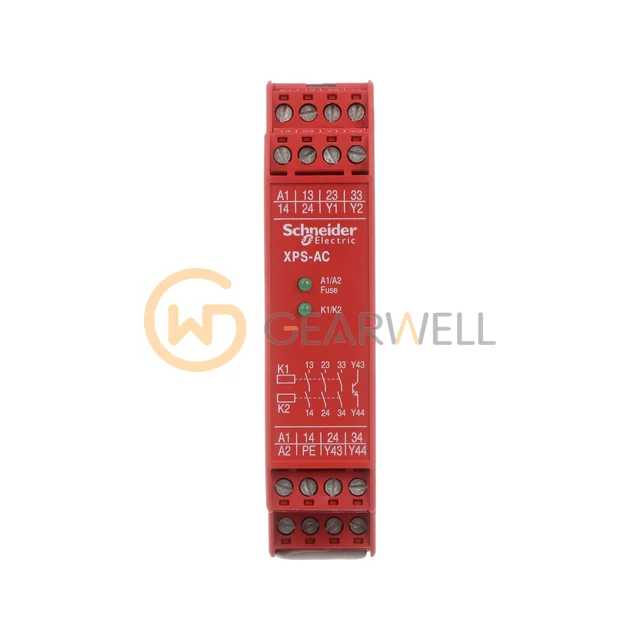

Schneider Electric XPSAC3421P Preventa XPS Safety Relay Module
- Brand
- Schneider Electric
- Model
- XPSAC3421P
- GEARWELL SKU
- GWP-000007429
- Category
- Machine Safety & Vision
Key specifications
- Output type
- Relay instantaneous opening, 3 NO circuit(s), volt-free
- Safety level
- Can reach PL e/category 4 conforming to ISO 13849-1, Can reach SILCL 3 conforming to IEC 62061
- Type of start
- Unmonitored
- Function of module
- Switch monitoring, Emergency stop
- Safety module name
- XPSAC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric XPSAC3421P Preventa XPS Safety Relay Module |
|---|---|
| Brand | Schneider Electric |
| Model | XPSAC3421P |
| Category | Machine Safety & Vision |
| Output type | Relay instantaneous opening, 3 NO circuit(s), volt-free |
| Safety level | Can reach PL e/category 4 conforming to ISO 13849-1, Can reach SILCL 3 conforming to IEC 62061 |
| Type of start | Unmonitored |
| Function of module | Switch monitoring, Emergency stop |
| Safety module name | XPSAC |
| Connections - terminals | Captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² flexible with cab |
| Safety reliability data | MTTFd = 210.4 years conforming to ISO 13849-1 |
| Safety module application | For emergency stop and switch monitoring |
