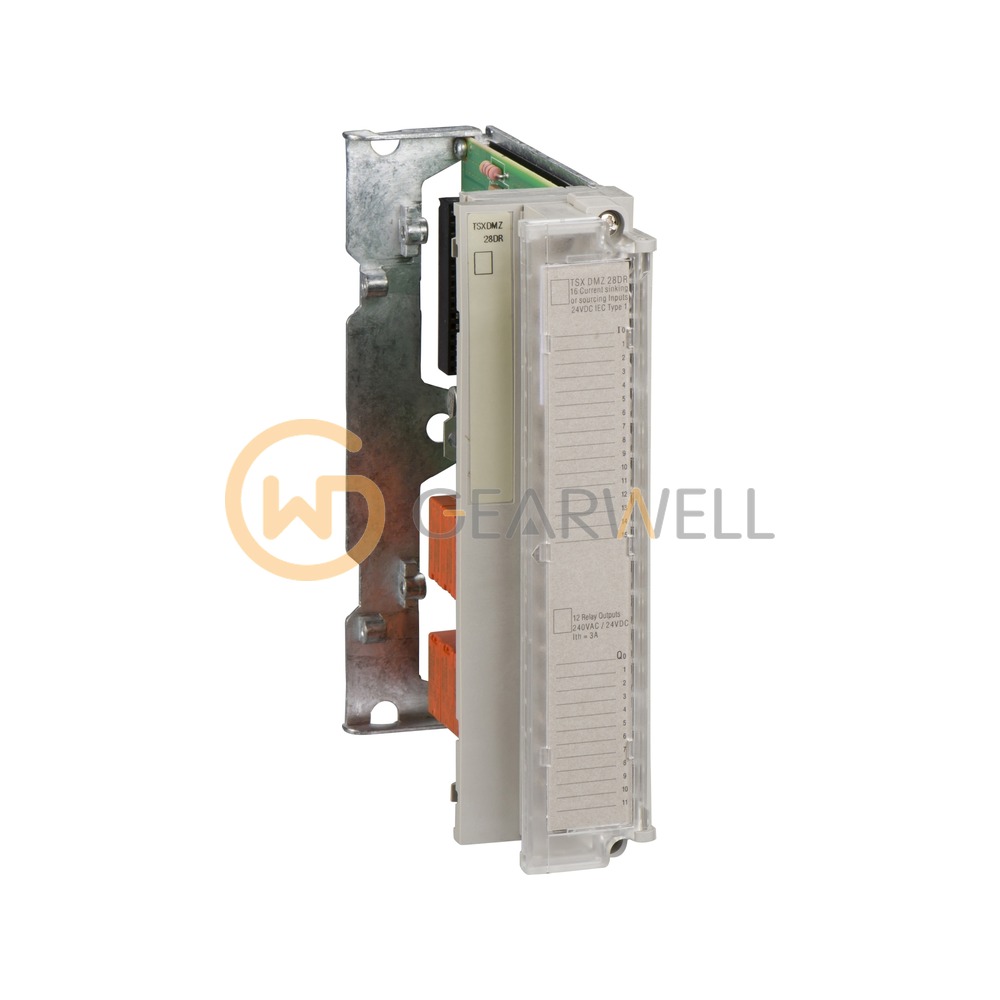

Schneider Electric TSXDMZ28DR Discrete Relay I/O Base
- Brand
- Schneider Electric
- Model
- TSXDMZ28DR
- GEARWELL SKU
- GWP-000007422
- Category
- PLCs & I/O
Key specifications
- Response time
- 0.1...7.5 ms input at state 0 to state 1, 0.1...7.5 ms input at state 1 to state 0, < 10 ms output
- Input impedance
- 4 Ohm
- Input voltage limits
- <= 8 V at state 1
- Discrete input number
- 16 screw terminal block
- Discrete input current
- 9 MA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric TSXDMZ28DR Discrete Relay I/O Base |
|---|---|
| Brand | Schneider Electric |
| Model | TSXDMZ28DR |
| Category | PLCs & I/O |
| Response time | 0.1...7.5 ms input at state 0 to state 1, 0.1...7.5 ms input at state 1 to state 0, < 10 ms output |
| Input impedance | 4 Ohm |
| Input voltage limits | <= 8 V at state 1 |
| Discrete input number | 16 screw terminal block |
| Discrete input current | 9 MA |
| Discrete input voltage | 24 V DC, discrete input logic: negative |
| Current state 0 guaranteed | <= 1.5 mA |
| Current state 1 guaranteed | >= 2.5 mA |
