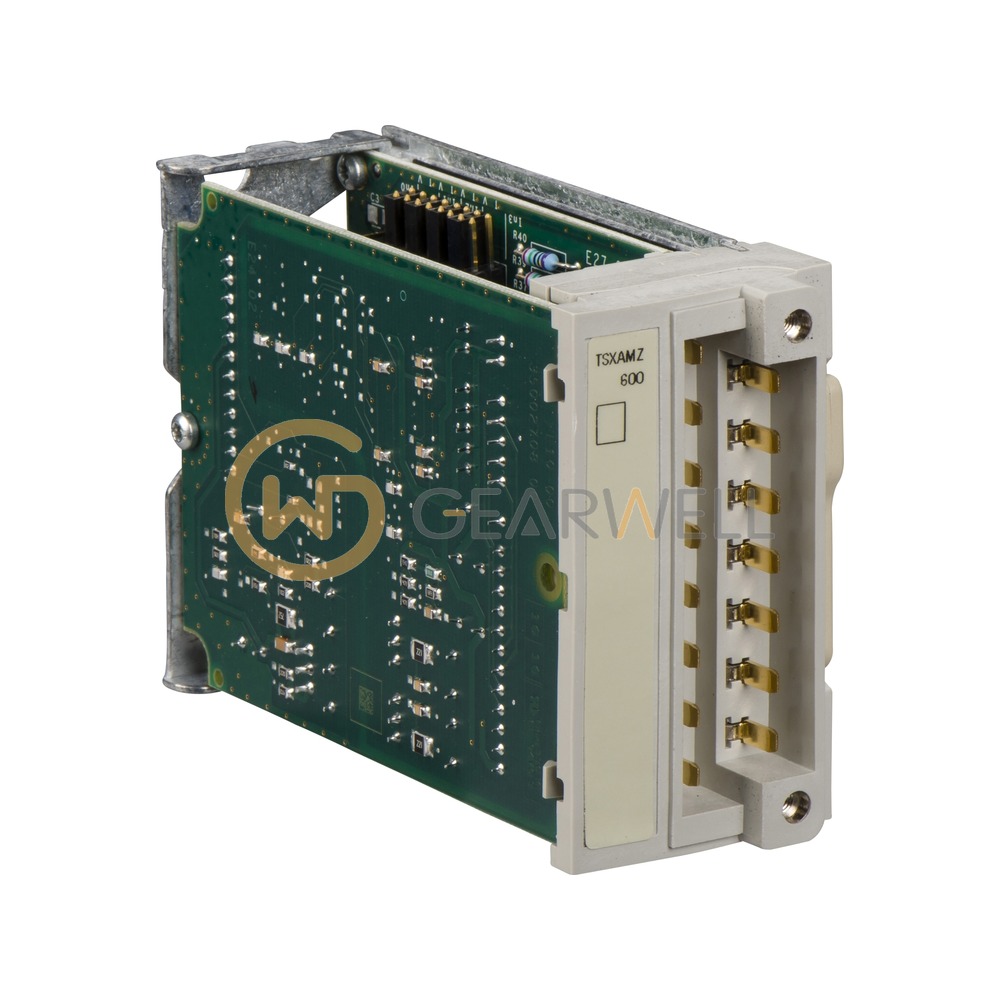

Schneider Electric TSXAMZ600 Modicon TSX Micro Analog I/O Module
- Brand
- Schneider Electric
- Model
- TSXAMZ600
- GEARWELL SKU
- GWP-000007421
- Category
- PLCs & I/O
Key specifications
- Output load
- <= 0.6 Ohm 0...20 mA or 4...20 mA, >= 2 Ohm +/- 10 V or 0...10 V
- Response time
- 400 µs +/- 10 V or 0...10 V, 400 µs 0...20 mA or 4...20 mA, 400 µs +/- 10 V
- Acquisition period
- 16 ms 0...20 mA or 4...20 mA, 16 ms 0...10 V or +/- 10 V
- Number of channels
- 4 input module, 2 output module
- Analogue input type
- 4...20 mA, 0...20 mA, +/- 10 V, 0...10 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric TSXAMZ600 Modicon TSX Micro Analog I/O Module |
|---|---|
| Brand | Schneider Electric |
| Model | TSXAMZ600 |
| Category | PLCs & I/O |
| Output load | <= 0.6 Ohm 0...20 mA or 4...20 mA, >= 2 Ohm +/- 10 V or 0...10 V |
| Response time | 400 µs +/- 10 V or 0...10 V, 400 µs 0...20 mA or 4...20 mA, 400 µs +/- 10 V |
| Acquisition period | 16 ms 0...20 mA or 4...20 mA, 16 ms 0...10 V or +/- 10 V |
| Number of channels | 4 input module, 2 output module |
| Analogue input type | 4...20 mA, 0...20 mA, +/- 10 V, 0...10 V |
| Analogue output type | 4...20 mA, 0...20 mA, 0...10 V, +/- 10 V |
| Measurement resolution | 0...20 mA or 4...20 mA, 0...10 V or +/- 10 V |
| Analog/digital conversion | 11 bits 0...10 V 0...10 V, 11 bits 0...20 mA or 4...20 mA 0...20 mA or 4...20 mA, 11 bits + sign +/- 10 V +/- 10 V |
