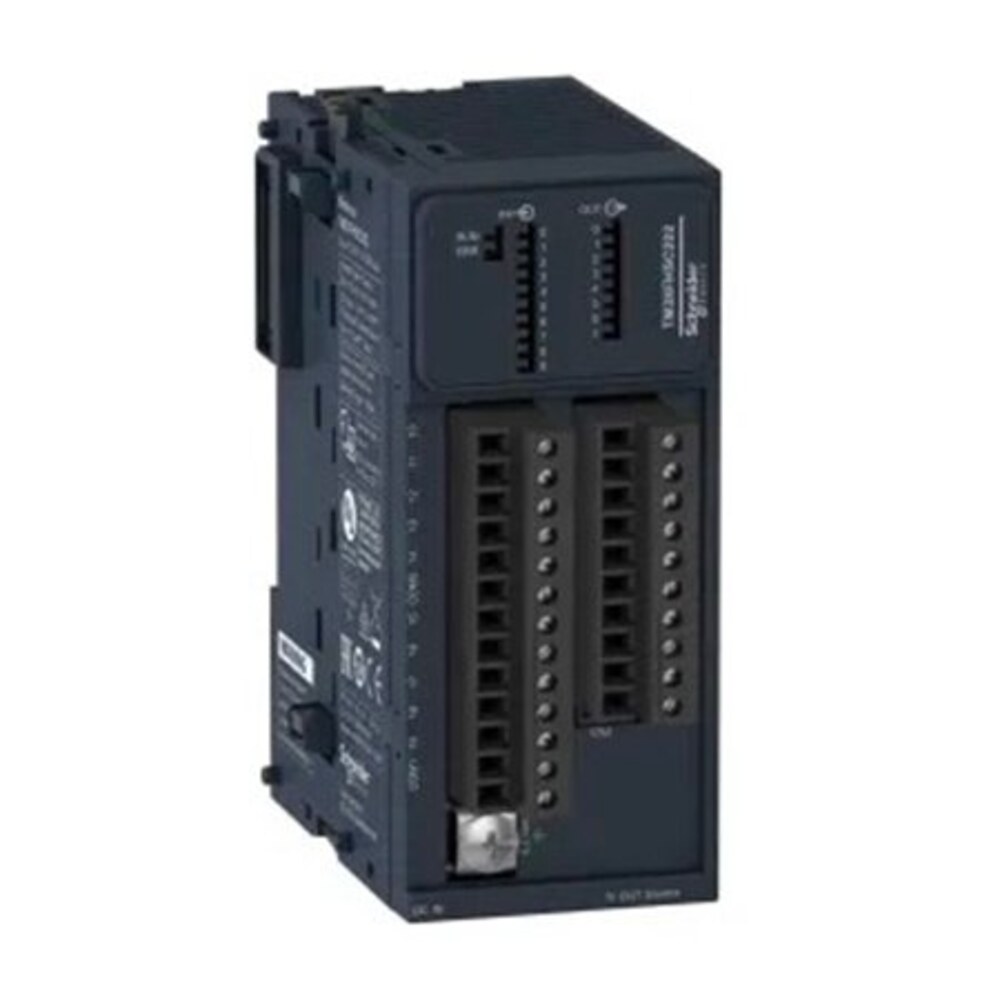

Schneider Electric TM3XFHSC202 I/O Module
- Brand
- Schneider Electric
- Model
- TM3XFHSC202
- GEARWELL SKU
- GWP-000003246
- Category
- Industrial Automation Parts
Key specifications
- Inputs
- 10
- Outputs
- 8
- High-speed counter channels
- 2
- Product type
- Modicon TM3 high-speed counter module
- Terminal type
- Screw terminals
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Schneider Electric TM3XFHSC202 is a Modicon TM3 expert counter module: high-speed counter with event management (on M262), 10 fast inputs, 8 fast outputs, screw terminals. It counts pulses from sensors or processes incremental encoder signals, with up/down counting, period and frequency measurement and reflex outputs; the event management function is available on the Modicon M262 controller when the module sits in one of the first two local slots.
Technical reference
| Product name | Schneider Electric TM3XFHSC202 I/O Module |
|---|---|
| Brand | Schneider Electric |
| Model | TM3XFHSC202 |
| Category | Industrial Automation Parts |
| Inputs | 10 |
| Outputs | 8 |
| High-speed counter channels | 2 |
| Product type | Modicon TM3 high-speed counter module |
| Terminal type | Screw terminals |
| Event management | Supported |
| Controller compatibility | Modicon M221, M241, M251 and M262 |
