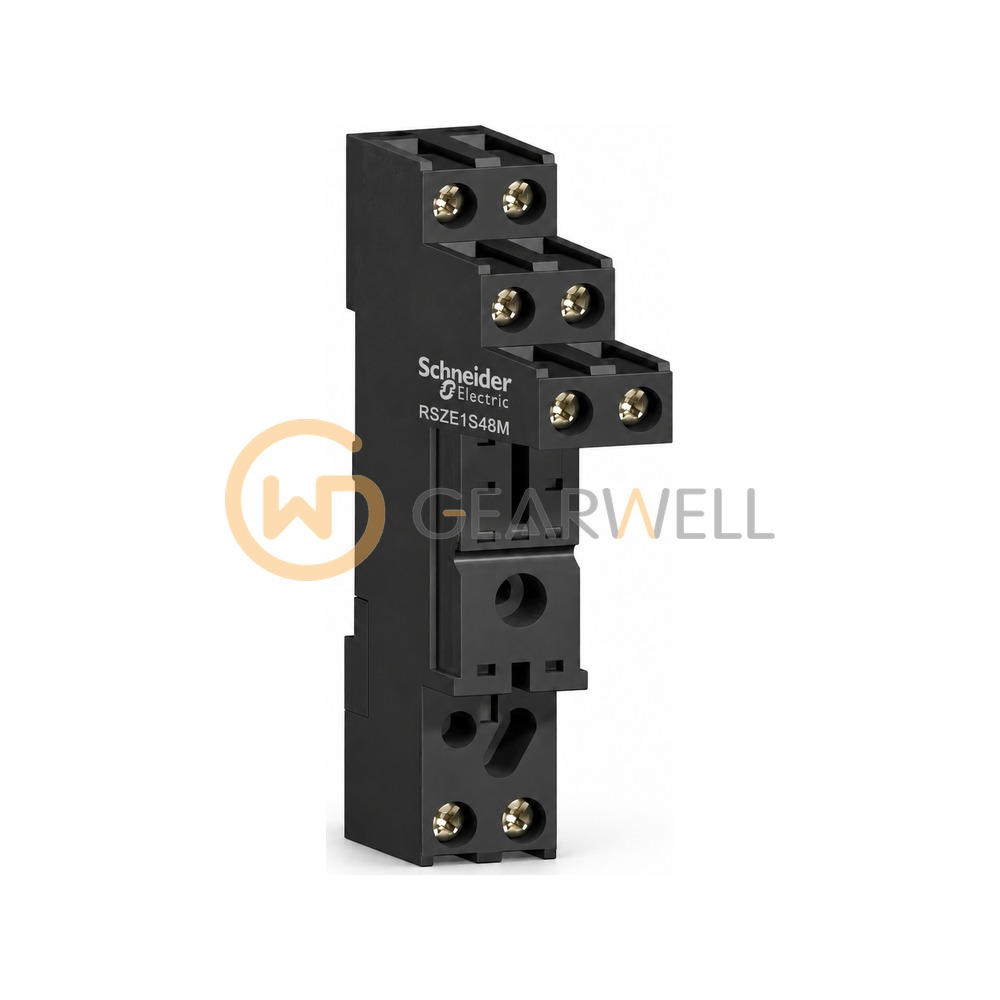

Schneider Electric RSZE1S48M Harmony Electromechanical Relays Socket
- Brand
- Schneider Electric
- Model
- RSZE1S48M
- GEARWELL SKU
- GWP-000010857
- Category
- Relays & Controllers
Key specifications
- Shape of pin
- Flat
- Tightening torque
- < 0.8 N.m for M3 screw(s)
- Connections - terminals
- Screw connectors, 1 x 0.34...1 x 2.5 mm² (22 AWG...14 AWG) flexible with cable end
- Product compatibility
- Plug-in relay RSB with 1 C/O contact at 16 A, Plug-in relay RSB with 2 C/O contact at 8 A
- Contact terminal arrangement
- Separate
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric RSZE1S48M Harmony Electromechanical Relays Socket |
|---|---|
| Brand | Schneider Electric |
| Model | RSZE1S48M |
| Category | Relays & Controllers |
| Shape of pin | Flat |
| Tightening torque | < 0.8 N.m for M3 screw(s) |
| Connections - terminals | Screw connectors, 1 x 0.34...1 x 2.5 mm² (22 AWG...14 AWG) flexible with cable end |
| Product compatibility | Plug-in relay RSB with 1 C/O contact at 16 A, Plug-in relay RSB with 2 C/O contact at 8 A |
| Contact terminal arrangement | Separate |
| [Ue] rated operational voltage | < 250 V AC |
| Contacts type and composition | 2 C/O |
| [Ith] conventional free air thermal current | 10 A |
