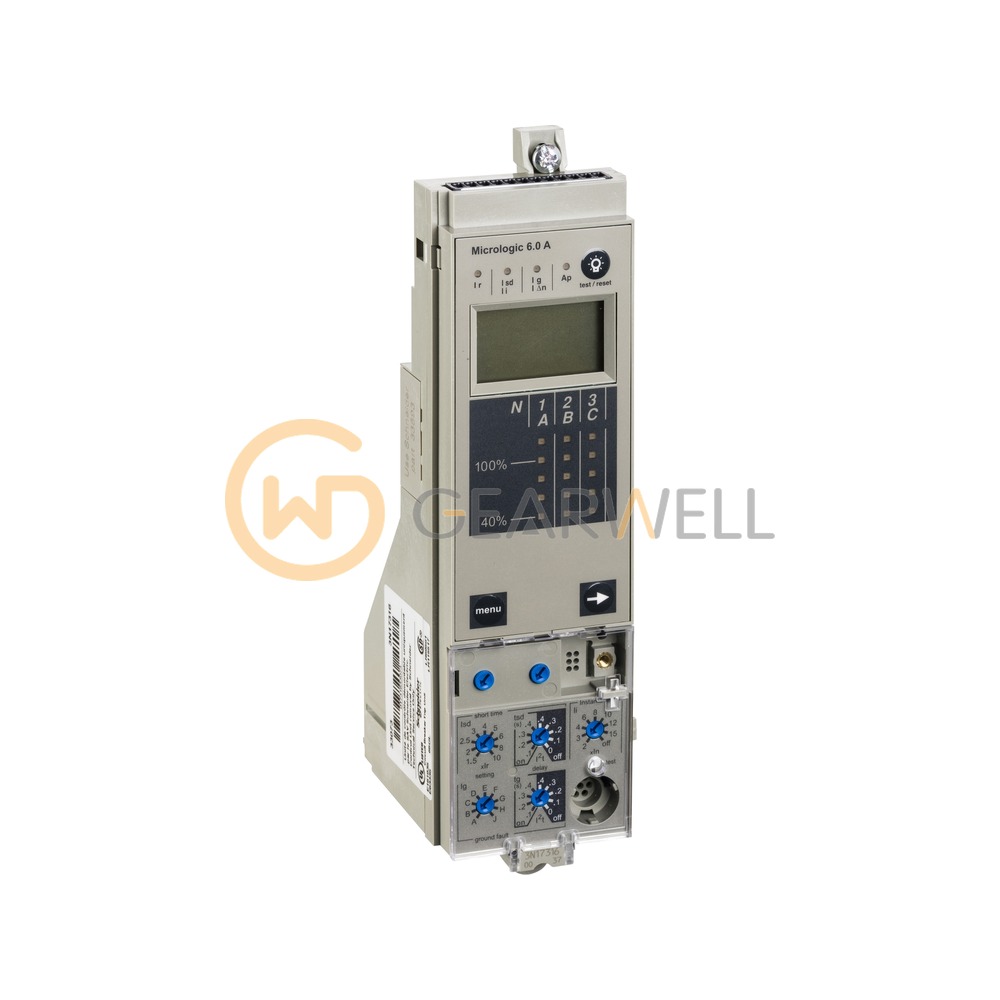

Schneider Electric MicroLogic 6.0 A Electronic trip unit series (MicroLogic 6.0 A)
- Brand
- Schneider Electric
- Model
- MicroLogic 6.0 A
- GEARWELL SKU
- GWP-000011103
- Category
- Circuit Protection
Key specifications
- Number of poles
- 3P; 4P
- Trip unit rating
- 630…6300 A at 50 °C (depends on breaker/sensor)
- Type of measurement
- Ammeter, digital display
- [Ir] long-time pick-up
- 0.4...1 x In
- [Isd] short-time pick-up
- 1.5...10 x Ir
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric MicroLogic 6.0 A Electronic trip unit series (MicroLogic 6.0 A) |
|---|---|
| Brand | Schneider Electric |
| Model | MicroLogic 6.0 A |
| Category | Circuit Protection |
| Number of poles | 3P; 4P |
| Trip unit rating | 630…6300 A at 50 °C (depends on breaker/sensor) |
| Type of measurement | Ammeter, digital display |
| [Ir] long-time pick-up | 0.4...1 x In |
| [Isd] short-time pick-up | 1.5...10 x Ir |
| [Ii] instantaneous pick-up | 2...15 x In; Off |
| Trip unit protection functions | Selective + earth-fault protection (LSIG) |
| Zone selective interlocking ZSI | With |
