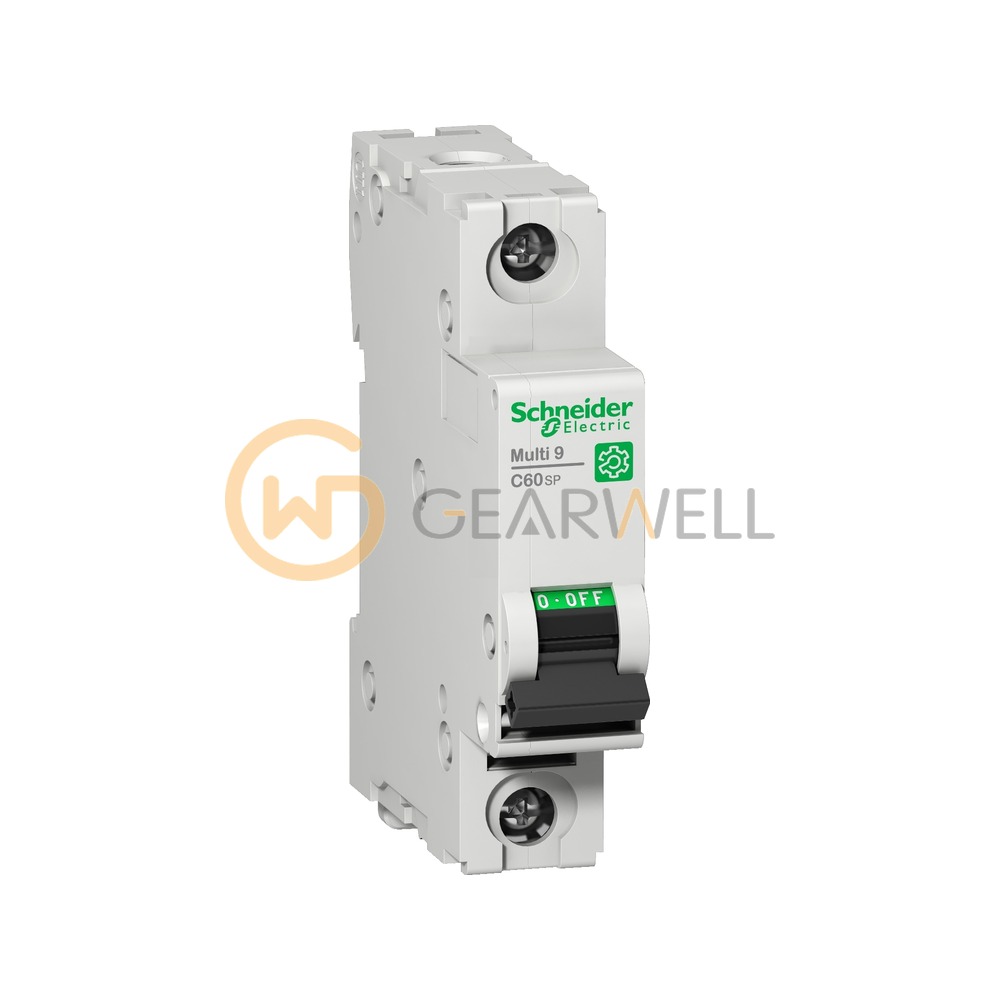

Schneider Electric M9F21113 Multi9 C60 Miniature Circuit Breaker
- Brand
- Schneider Electric
- Model
- M9F21113
- GEARWELL SKU
- GWP-000007371
- Category
- Circuit Protection
Key specifications
- Curve code
- B
- Network type
- DC, AC
- [In] rated current
- 13 A at 25 °C conforming to EN/IEC 60947-2
- Breaking capacity
- 10 KA AIR at 277 V AC conforming to UL 1077
- Poles description
- 1P
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric M9F21113 Multi9 C60 Miniature Circuit Breaker |
|---|---|
| Brand | Schneider Electric |
| Model | M9F21113 |
| Category | Circuit Protection |
| Curve code | B |
| Network type | DC, AC |
| [In] rated current | 13 A at 25 °C conforming to EN/IEC 60947-2 |
| Breaking capacity | 10 KA AIR at 277 V AC conforming to UL 1077 |
| Poles description | 1P |
| Device application | Distribution |
| Trip unit technology | Thermal-magnetic |
| Number of protected poles | 1 |
