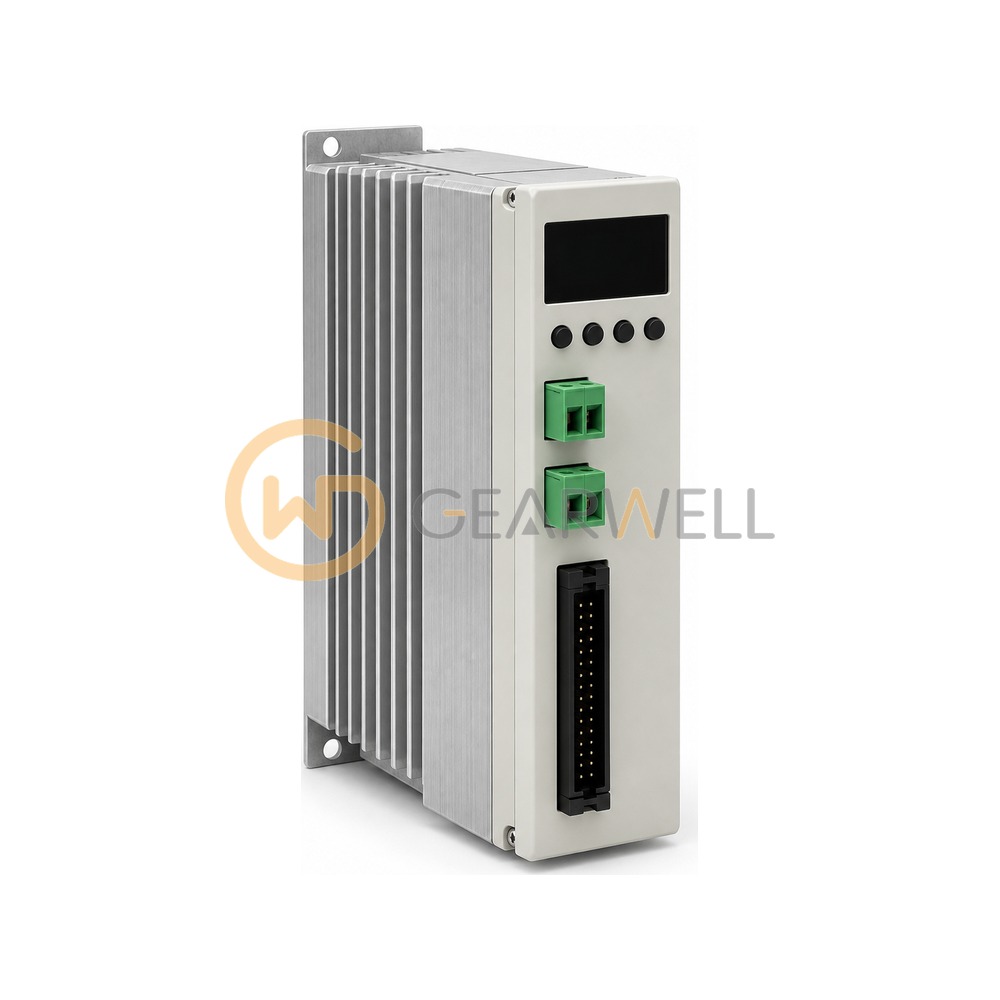

Schneider Electric LXM28AU15M3X Lexium 28 Motion servo drive
- Brand
- Schneider Electric
- Model
- LXM28AU15M3X
- GEARWELL SKU
- GWP-000013011
- Category
- Servo Systems
Key specifications
- Nominal power
- 1.5 KW at 220 V 16 kHz
- Range of product
- Lexium 28
- Output current 3s peak
- 21 A at 220 V
- Communication interface
- CANopen, integrated ; CANmotion, integrated
- [Us] rated supply voltage
- 200...240 V (- 10...15 %) for three phase ; 200...240 V (- 20...15 %) for single phase
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric LXM28AU15M3X Lexium 28 Motion servo drive |
|---|---|
| Brand | Schneider Electric |
| Model | LXM28AU15M3X |
| Category | Servo Systems |
| Nominal power | 1.5 KW at 220 V 16 kHz |
| Range of product | Lexium 28 |
| Output current 3s peak | 21 A at 220 V |
| Communication interface | CANopen, integrated ; CANmotion, integrated |
| [Us] rated supply voltage | 200...240 V (- 10...15 %) for three phase ; 200...240 V (- 20...15 %) for single phase |
| Network number of phases | Three phase ; Single phase |
| Continuous output current | 7 A at 16 kHz |
