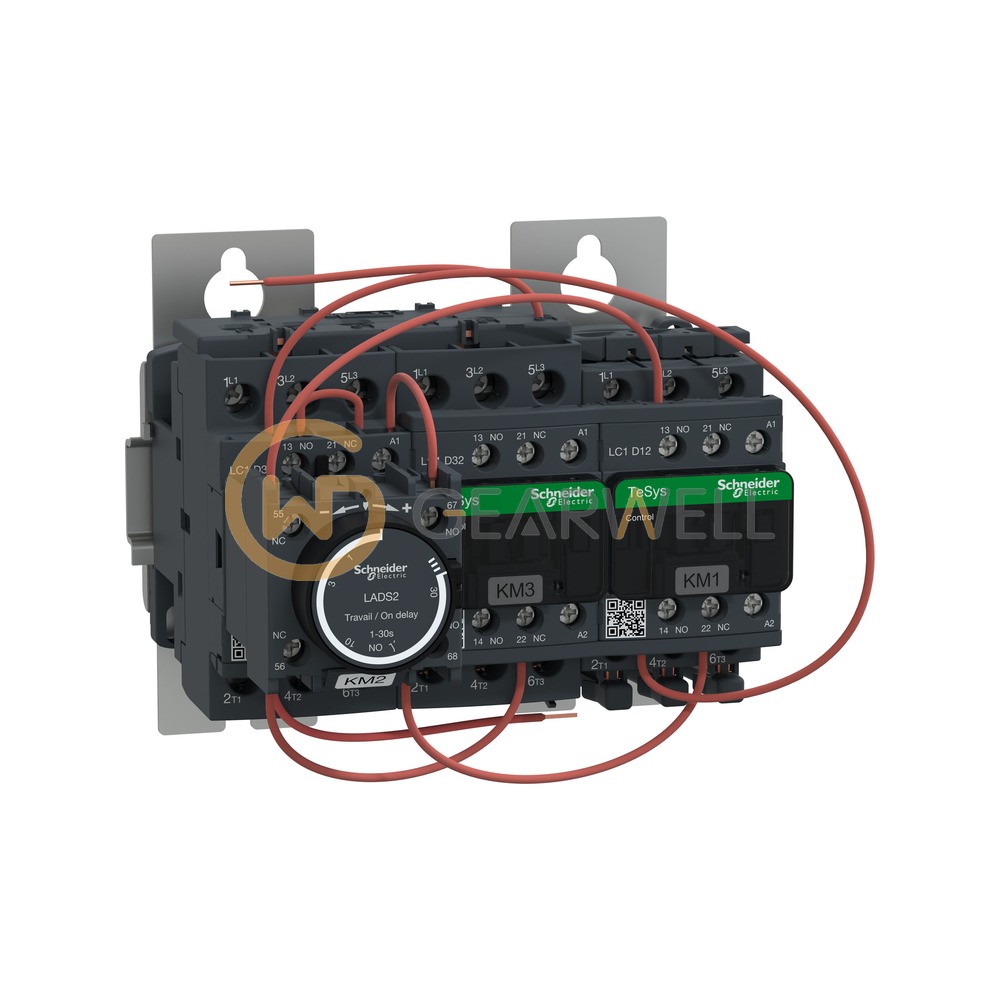

Schneider Electric LC3D32AP7 TeSys D Star-Delta Starter
- Brand
- Schneider Electric
- Model
- LC3D32AP7
- GEARWELL SKU
- GWP-000007366
- Category
- Contactors & Starters
Key specifications
- Motor power kW
- 15 KW at 220/230 V AC 50/60 Hz, 25 KW at 380/400 V AC 50/60 Hz, 30 KW at 415 V AC 50/60 Hz, 30 KW at 440 V AC 50/60 Hz
- Poles description
- 3 x 3P
- Device presentation
- Pre-wired
- Utilisation category
- AC-3
- Contactor application
- Motor control
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric LC3D32AP7 TeSys D Star-Delta Starter |
|---|---|
| Brand | Schneider Electric |
| Model | LC3D32AP7 |
| Category | Contactors & Starters |
| Motor power kW | 15 KW at 220/230 V AC 50/60 Hz, 25 KW at 380/400 V AC 50/60 Hz, 30 KW at 415 V AC 50/60 Hz, 30 KW at 440 V AC 50/60 Hz |
| Poles description | 3 x 3P |
| Device presentation | Pre-wired |
| Utilisation category | AC-3 |
| Contactor application | Motor control |
| Pole contact composition | 3 x 3 NO |
| [Ie] rated operational current | 32 A (at <60 °C) at <= 440 V AC AC-3 for power circuit |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz |
