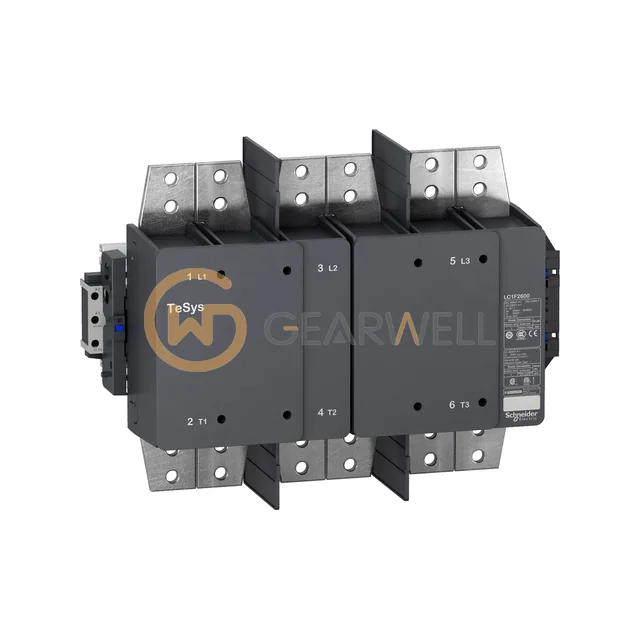

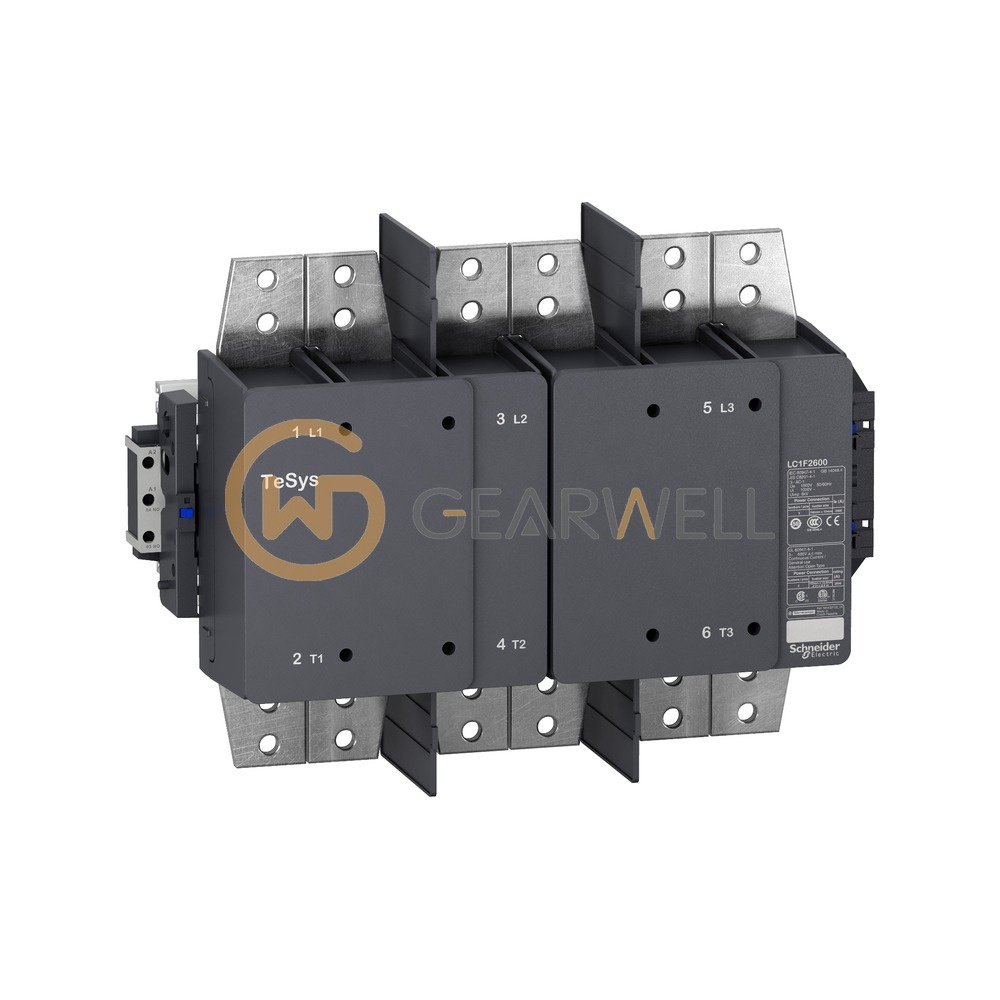

Schneider Electric LC1F2600F7 TeSys F Contactor
- Brand
- Schneider Electric
- Model
- LC1F2600F7
- GEARWELL SKU
- GWP-000007361
- Category
- Contactors & Starters
Key specifications
- Poles description
- 3P
- Utilisation category
- AC-1
- Contactor application
- Resistive load
- [Uc] control circuit voltage
- 110 V AC 40...400 Hz
- [Ie] rated operational current
- 2600 A (at <60 °C) AC AC-1
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric LC1F2600F7 TeSys F Contactor |
|---|---|
| Brand | Schneider Electric |
| Model | LC1F2600F7 |
| Category | Contactors & Starters |
| Poles description | 3P |
| Utilisation category | AC-1 |
| Contactor application | Resistive load |
| [Uc] control circuit voltage | 110 V AC 40...400 Hz |
| [Ie] rated operational current | 2600 A (at <60 °C) AC AC-1 |
| [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 KV |
| [Ith] conventional free air thermal current | 2600 A (at 60 °C) |
