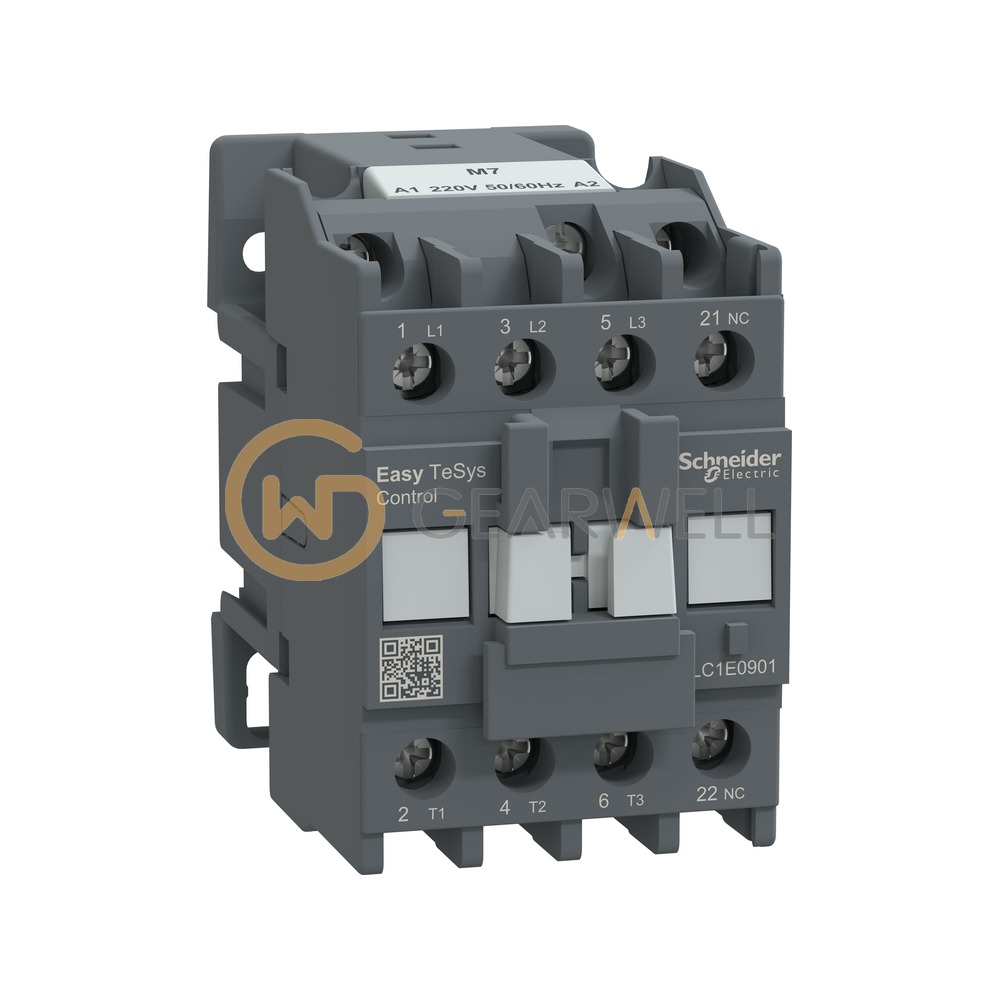

Schneider Electric LC1E0901M7 Easy TeSys Contactor
- Brand
- Schneider Electric
- Model
- LC1E0901M7
- GEARWELL SKU
- GWP-000007360
- Category
- Contactors & Starters
Key specifications
- Motor power kW
- 2.2 KW at 220/230 V AC 50/60 Hz
- Poles description
- 3P
- Utilisation category
- AC-3, AC-3e, AC-1
- Contactor application
- Motor control, Resistive load
- Pole contact composition
- 3 NO
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric LC1E0901M7 Easy TeSys Contactor |
|---|---|
| Brand | Schneider Electric |
| Model | LC1E0901M7 |
| Category | Contactors & Starters |
| Motor power kW | 2.2 KW at 220/230 V AC 50/60 Hz |
| Poles description | 3P |
| Utilisation category | AC-3, AC-3e, AC-1 |
| Contactor application | Motor control, Resistive load |
| Pole contact composition | 3 NO |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| [Ie] rated operational current | 9 A (at <55 °C) at <= 440 V AC AC-3 for power circuit |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
