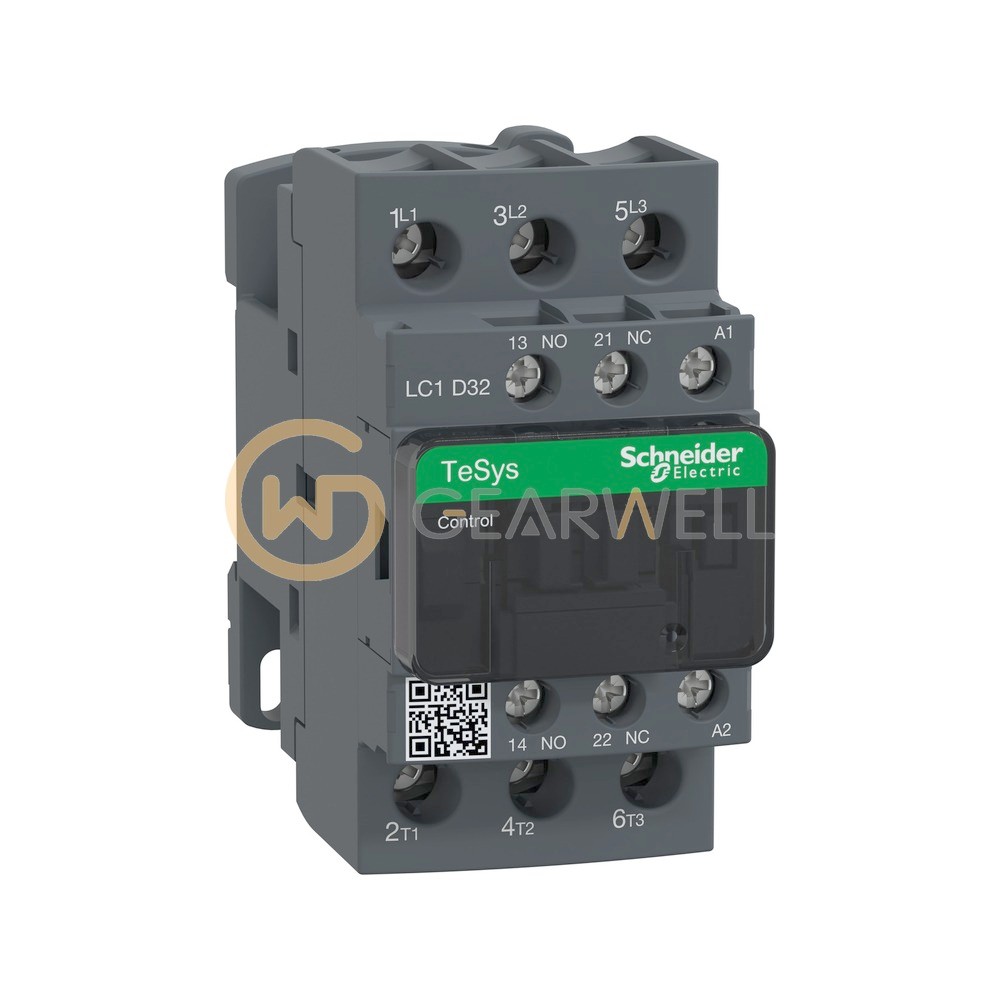

Schneider Electric LC1D32M7C TeSys Deca Contactor
- Brand
- Schneider Electric
- Model
- LC1D32M7C
- GEARWELL SKU
- GWP-000013913
- Category
- Contactors & Starters
Key specifications
- Poles description
- 3P
- Utilisation category
- AC-4; AC-1; AC-3
- Contactor application
- Motor control; Resistive load
- [Uc] control circuit voltage
- 220 V AC 50/60 Hz
- [Ie] rated operational current
- 32 A (at <60 °C) at <= 440 V AC AC-3 for power circuit; 50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit; 32 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric LC1D32M7C TeSys Deca Contactor |
|---|---|
| Brand | Schneider Electric |
| Model | LC1D32M7C |
| Category | Contactors & Starters |
| Poles description | 3P |
| Utilisation category | AC-4; AC-1; AC-3 |
| Contactor application | Motor control; Resistive load |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| [Ie] rated operational current | 32 A (at <60 °C) at <= 440 V AC AC-3 for power circuit; 50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit; 32 A (at <60 °C) at <= 440 V AC AC-3e for power circuit |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz; Power circuit: <= 225 V DC |
