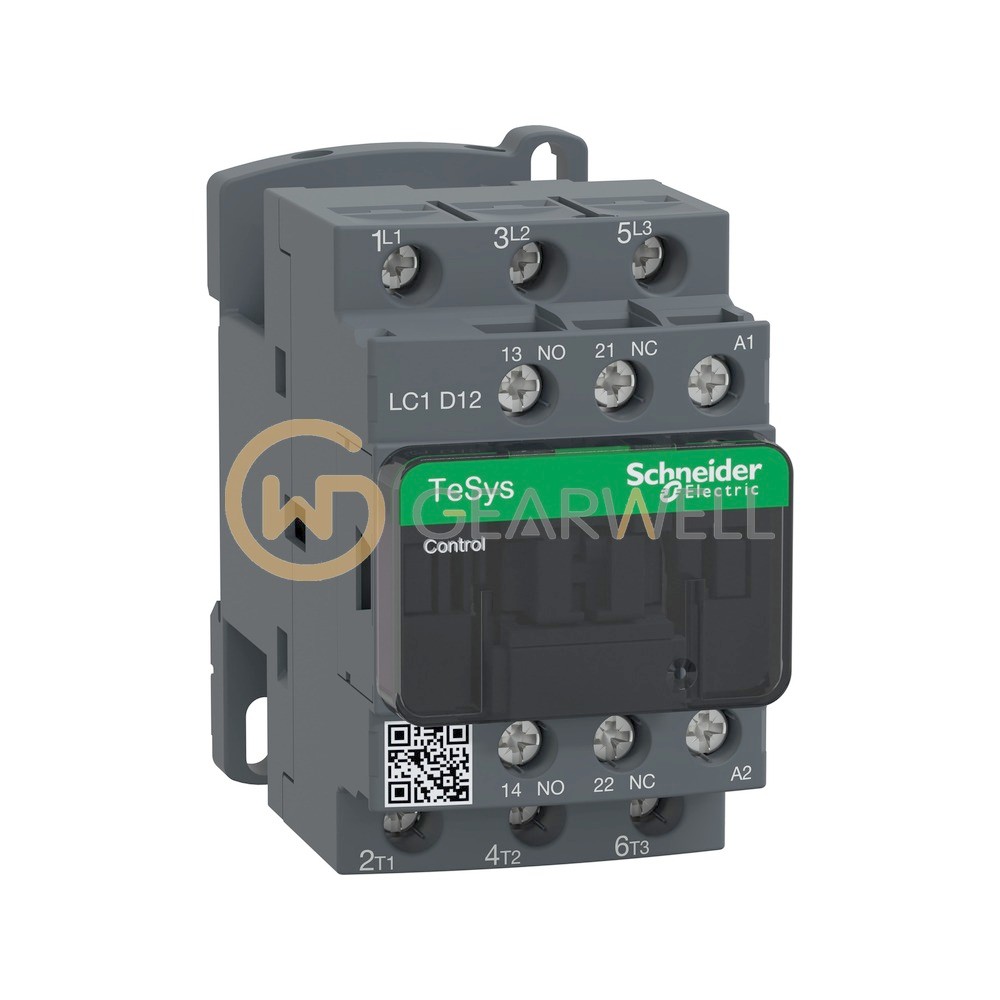

Schneider Electric LC1D12Q7 TeSys Deca Advanced Contactor
- Brand
- Schneider Electric
- Model
- LC1D12Q7
- GEARWELL SKU
- GWP-000007314
- Category
- Contactors & Starters
Key specifications
- Motor power hp
- 0.5 Hp at 115 V AC 50/60 Hz for 1 phase motors
- Motor power kW
- 3 KW at 220/230 V AC 50/60 Hz (AC-3)
- Poles description
- 3P
- Utilisation category
- AC-3, AC-3e, AC-1, AC-4
- Contactor application
- Resistive load, Motor control
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric LC1D12Q7 TeSys Deca Advanced Contactor |
|---|---|
| Brand | Schneider Electric |
| Model | LC1D12Q7 |
| Category | Contactors & Starters |
| Motor power hp | 0.5 Hp at 115 V AC 50/60 Hz for 1 phase motors |
| Motor power kW | 3 KW at 220/230 V AC 50/60 Hz (AC-3) |
| Poles description | 3P |
| Utilisation category | AC-3, AC-3e, AC-1, AC-4 |
| Contactor application | Resistive load, Motor control |
| [Uc] control circuit voltage | 380 V AC 50/60 Hz |
| [Ie] rated operational current | 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz, Power circuit: <= 300 V DC |
