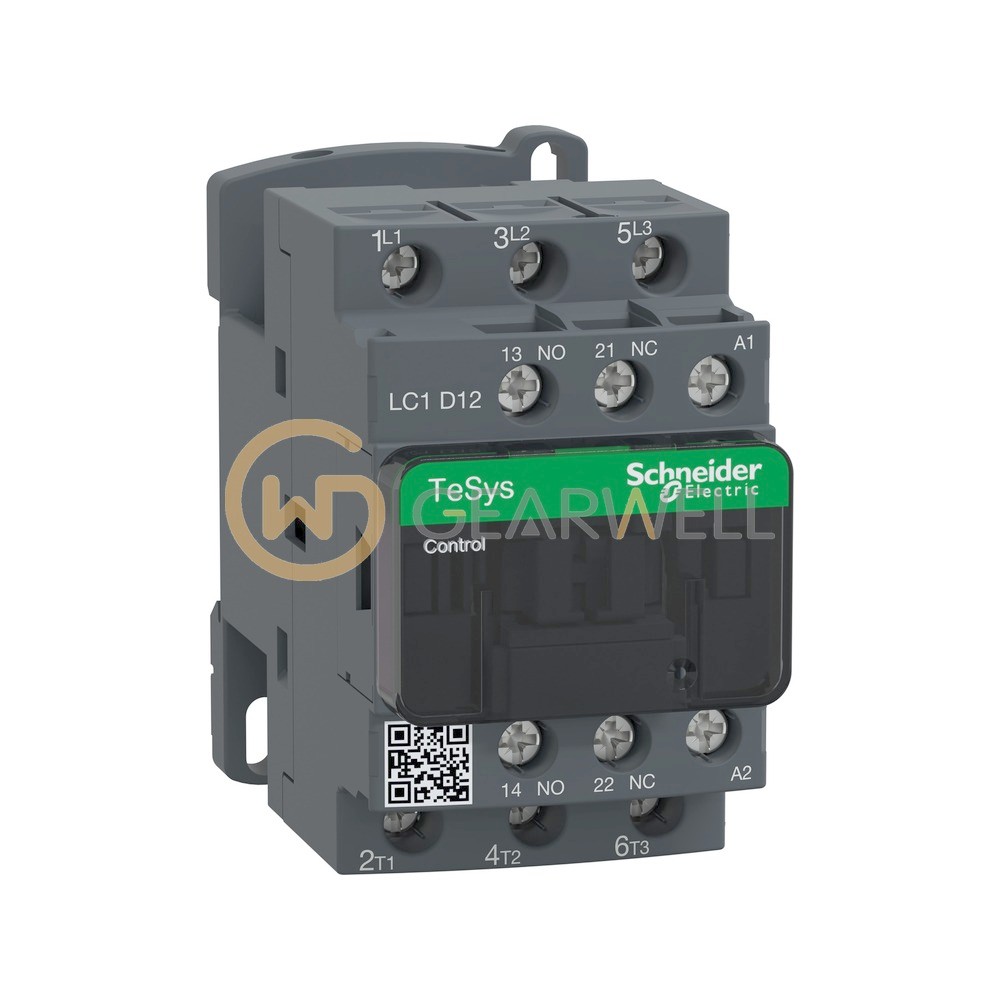

Schneider Electric LC1D12CC7C TeSys Deca Contactor
- Brand
- Schneider Electric
- Model
- LC1D12CC7C
- GEARWELL SKU
- GWP-000007309
- Category
- Contactors & Starters
Key specifications
- Motor power kW
- 7.5 KW at 500 V AC 50/60 Hz (AC-3)
- Poles description
- 3P
- Utilisation category
- AC-4, AC-1, AC-3, AC-3e
- Contactor application
- Motor control, Resistive load
- Pole contact composition
- 3 NO
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric LC1D12CC7C TeSys Deca Contactor |
|---|---|
| Brand | Schneider Electric |
| Model | LC1D12CC7C |
| Category | Contactors & Starters |
| Motor power kW | 7.5 KW at 500 V AC 50/60 Hz (AC-3) |
| Poles description | 3P |
| Utilisation category | AC-4, AC-1, AC-3, AC-3e |
| Contactor application | Motor control, Resistive load |
| Pole contact composition | 3 NO |
| [Uc] control circuit voltage | 36 V AC 50/60 Hz |
| [Ie] rated operational current | 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz, Power circuit: <= 300 V DC |
