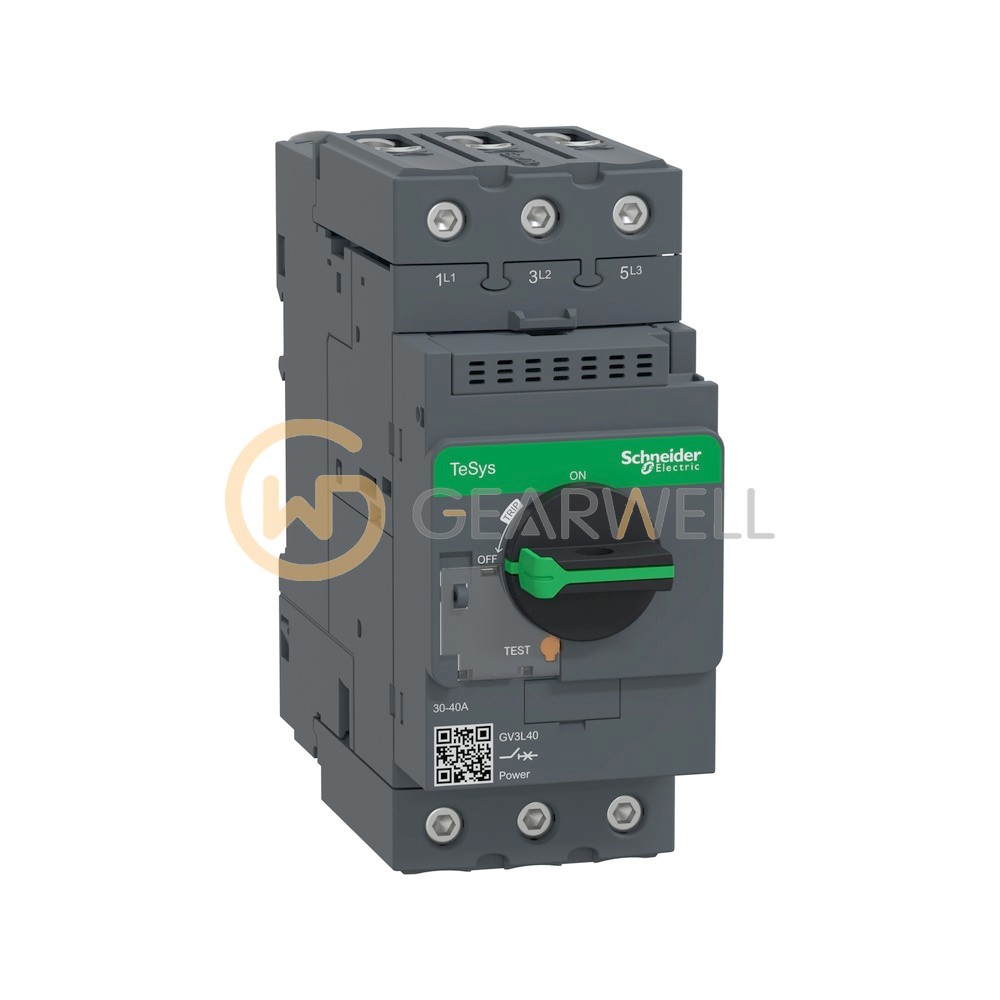

Schneider Electric GV3L40 Motor Circuit Breaker (Magnetic)

Key specifications

Control Type: Rotary handle
Motor power kW: 18.5 kW 400/415 V AC 50/60 Hz; 22 kW 500 V AC 50/60 Hz; 37 kW 690 V AC 50/60 Hz
Breaking capacity: 100 kA Icu 230/240 V AC 50/60 Hz; 50 kA Icu 400/415 V AC 50/60 Hz; 50 kA Icu 440 V AC 50/60 Hz; 12 kA Icu 500 V AC 50/60 Hz; 6 kA Icu 690 V AC 50/60 Hz
Device short name: GV3L
Poles description: 3P

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Schneider Electric GV3L40 Motor Circuit Breaker (Magnetic)
Brand	Schneider Electric
Model	GV3L40
Category	Circuit Protection
Control Type	Rotary handle
Motor power kW	18.5 kW 400/415 V AC 50/60 Hz; 22 kW 500 V AC 50/60 Hz; 37 kW 690 V AC 50/60 Hz
Breaking capacity	100 kA Icu 230/240 V AC 50/60 Hz; 50 kA Icu 400/415 V AC 50/60 Hz; 50 kA Icu 440 V AC 50/60 Hz; 12 kA Icu 500 V AC 50/60 Hz; 6 kA Icu 690 V AC 50/60 Hz
Device short name	GV3L
Poles description	3P
Trip unit technology	Magnetic
