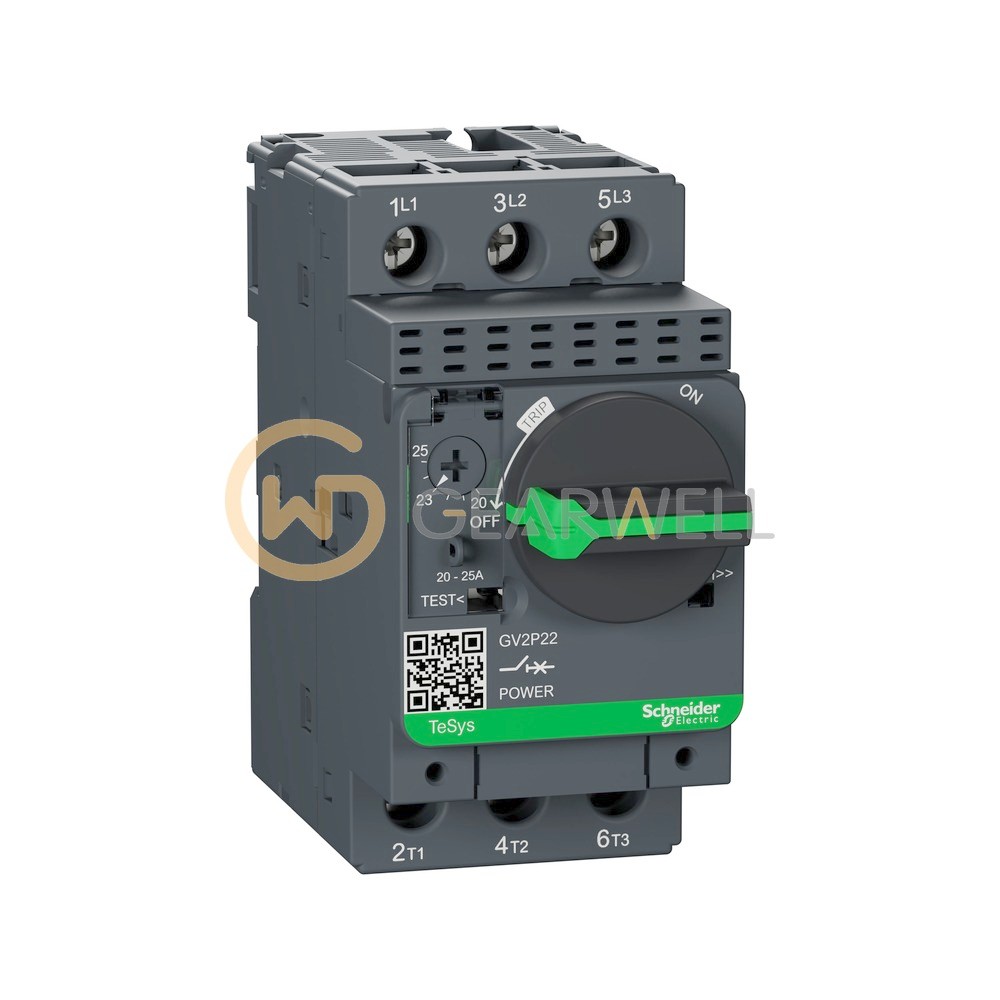

Schneider Electric GV2P22 TeSys Deca Motor Circuit Breaker
- Brand
- Schneider Electric
- Model
- GV2P22
- GEARWELL SKU
- GWP-000007291
- Category
- Circuit Protection
Key specifications
- Network type
- AC
- Motor power kW
- 11 KW at 400/415 V AC 50/60 Hz, 15 KW at 500 V AC 50/60 Hz
- Breaking capacity
- 100 KA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
- Network frequency
- 50/60 Hz conforming to IEC 60947-2
- Poles description
- 3P
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric GV2P22 TeSys Deca Motor Circuit Breaker |
|---|---|
| Brand | Schneider Electric |
| Model | GV2P22 |
| Category | Circuit Protection |
| Network type | AC |
| Motor power kW | 11 KW at 400/415 V AC 50/60 Hz, 15 KW at 500 V AC 50/60 Hz |
| Breaking capacity | 100 KA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| Network frequency | 50/60 Hz conforming to IEC 60947-2 |
| Poles description | 3P |
| Device application | Motor protection |
| Trip unit technology | Thermal-magnetic |
| Utilisation category | Category A conforming to IEC 60947-2, AC-3 conforming to IEC 60947-4-1, AC-3e conforming to IEC 60947-4-1 |
