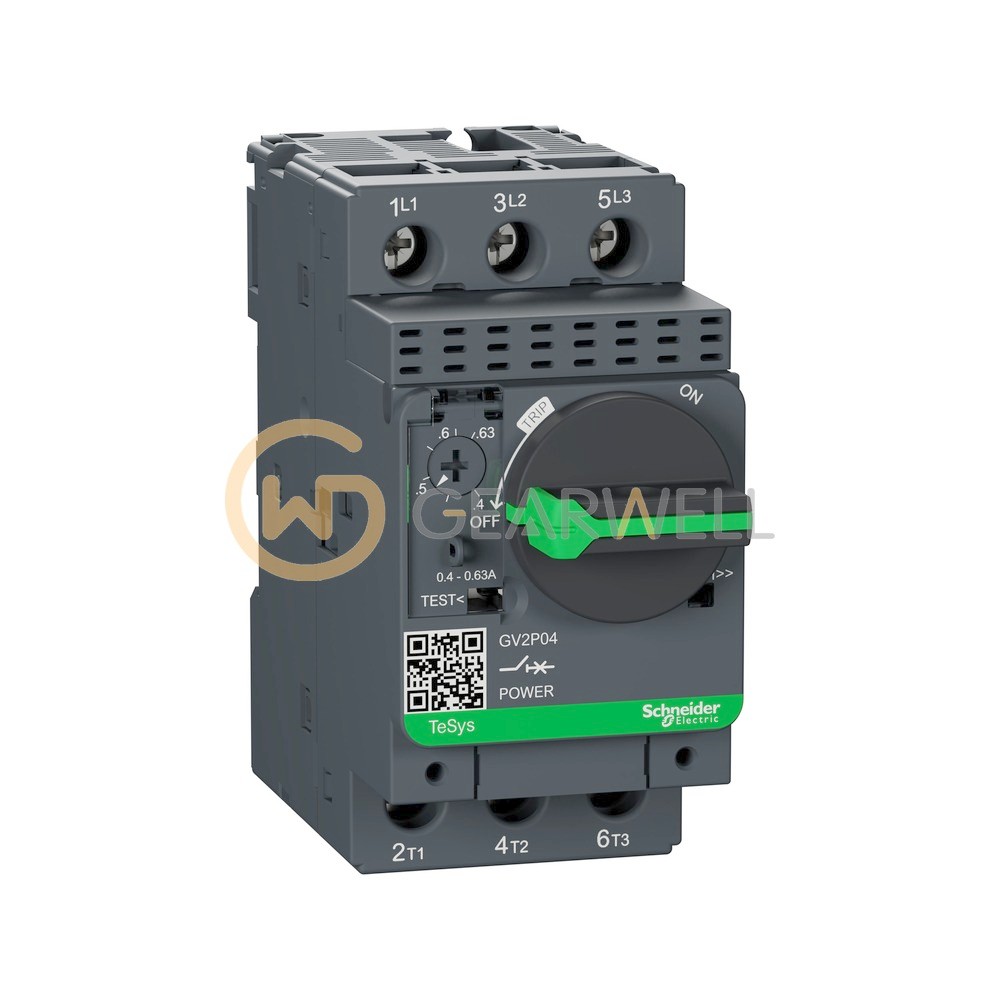

Schneider Electric GV2P04 TeSys Deca Motor Circuit Breaker

Key specifications

Network type: AC
Motor power kW: 0.12 KW at 400/415 V AC 50/60 Hz, 0.18 KW at 400/415 V AC 50/60 Hz, 0.37 KW at 690 V AC 50/60 Hz
Breaking capacity: 100 KA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
Network frequency: 50/60 Hz conforming to IEC 60947-2
Poles description: 3P

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Schneider Electric GV2P04 TeSys Deca Motor Circuit Breaker
Brand	Schneider Electric
Model	GV2P04
Category	Circuit Protection
Network type	AC
Motor power kW	0.12 KW at 400/415 V AC 50/60 Hz, 0.18 KW at 400/415 V AC 50/60 Hz, 0.37 KW at 690 V AC 50/60 Hz
Breaking capacity	100 KA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
Network frequency	50/60 Hz conforming to IEC 60947-2
Poles description	3P
Device application	Motor protection
Trip unit technology	Thermal-magnetic
Utilisation category	Category A conforming to IEC 60947-2, AC-3 conforming to IEC 60947-4-1, AC-3e conforming to IEC 60947-4-1
