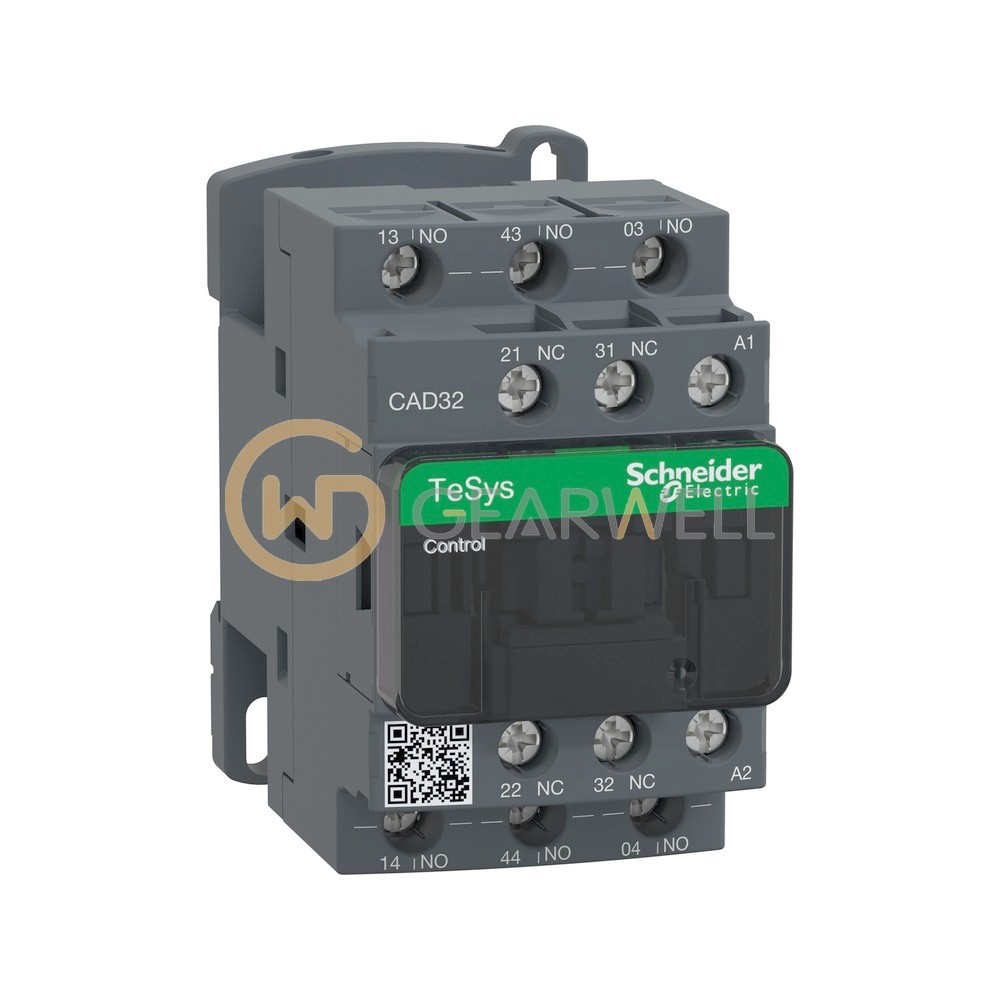

Schneider Electric CAD32V7C TeSys D Control Relay
- Brand
- Schneider Electric
- Model
- CAD32V7C
- GEARWELL SKU
- GWP-000007278
- Category
- Relays & Controllers
Key specifications
- Operating time
- 12...22 ms coil energisation and NO closing
- Utilisation category
- AC-14, AC-15, DC-13
- Contactor application
- Control circuit
- Mechanical durability
- 30 Mcycles
- Maximum operating rate
- 180 Cyc/Mn
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric CAD32V7C TeSys D Control Relay |
|---|---|
| Brand | Schneider Electric |
| Model | CAD32V7C |
| Category | Relays & Controllers |
| Operating time | 12...22 ms coil energisation and NO closing |
| Utilisation category | AC-14, AC-15, DC-13 |
| Contactor application | Control circuit |
| Mechanical durability | 30 Mcycles |
| Maximum operating rate | 180 Cyc/Mn |
| Pole contact composition | 3 NO + 2 NC |
| [Uc] control circuit voltage | 400 V AC 50/60 Hz |
| [Ue] rated operational voltage | <= 690 V AC 25...400 Hz |
