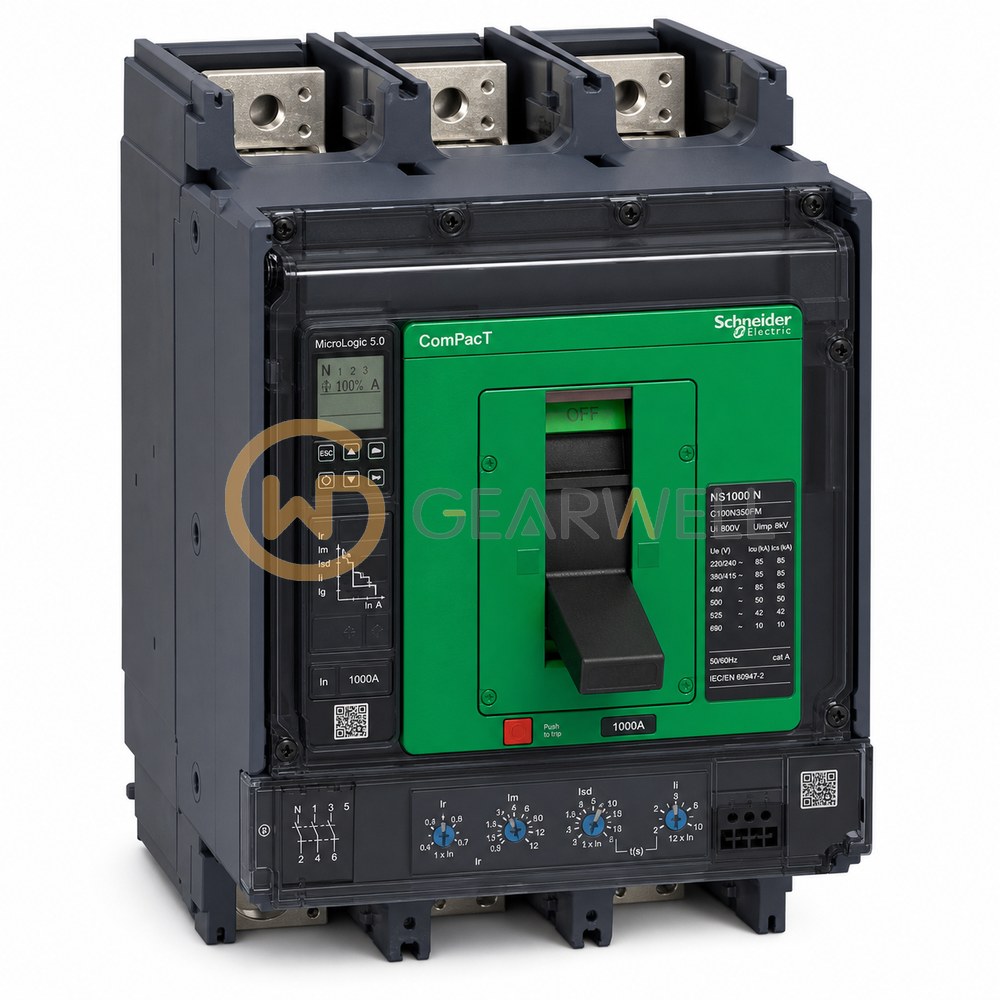

Schneider Electric C100N350FM NS1000N 1000 A 3-Pole Circuit Breaker
- Brand
- Schneider Electric
- Model
- C100N350FM
- GEARWELL SKU
- GWP-000001732
- Category
- Circuit Protection
Key specifications
- Poles
- 3P
- Trip unit
- MicroLogic 5.0
- Product type
- ComPacT NS molded-case circuit breaker
- Rated current
- 1000 A at 50 °C
- Body dimensions (H × W × D)
- 327 × 210 × 147 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric C100N350FM NS1000N 1000 A 3-Pole Circuit Breaker |
|---|---|
| Brand | Schneider Electric |
| Model | C100N350FM |
| Category | Circuit Protection |
| Poles | 3P |
| Trip unit | MicroLogic 5.0 |
| Product type | ComPacT NS molded-case circuit breaker |
| Rated current | 1000 A at 50 °C |
| Body dimensions (H × W × D) | 327 × 210 × 147 mm |
| Ultimate breaking capacity (Icu) | 50 kA at 380/415 V AC, 50/60 Hz (IEC 60947-2) |
| Device short name | NS1000N |
| Protection functions | LSI: long-time overload, short-time and instantaneous short-circuit protection |
| Rated insulation voltage (Ui) | 800 V AC, 50/60 Hz (IEC 60947-2) |
| Rated impulse withstand voltage (Uimp) | 8 kV (IEC 60947-2) |
| Rated operational voltage (Ue) | 690 V AC, 50/60 Hz |
| Installation and operation | Fixed, manually operated |
