Schneider Electric ATV630U07N4 Variable Frequency Drive
- Brand
- Schneider Electric
- Model
- ATV630U07N4
- GEARWELL SKU
- GWP-000006589
- Category
- Variable Frequency Drives
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

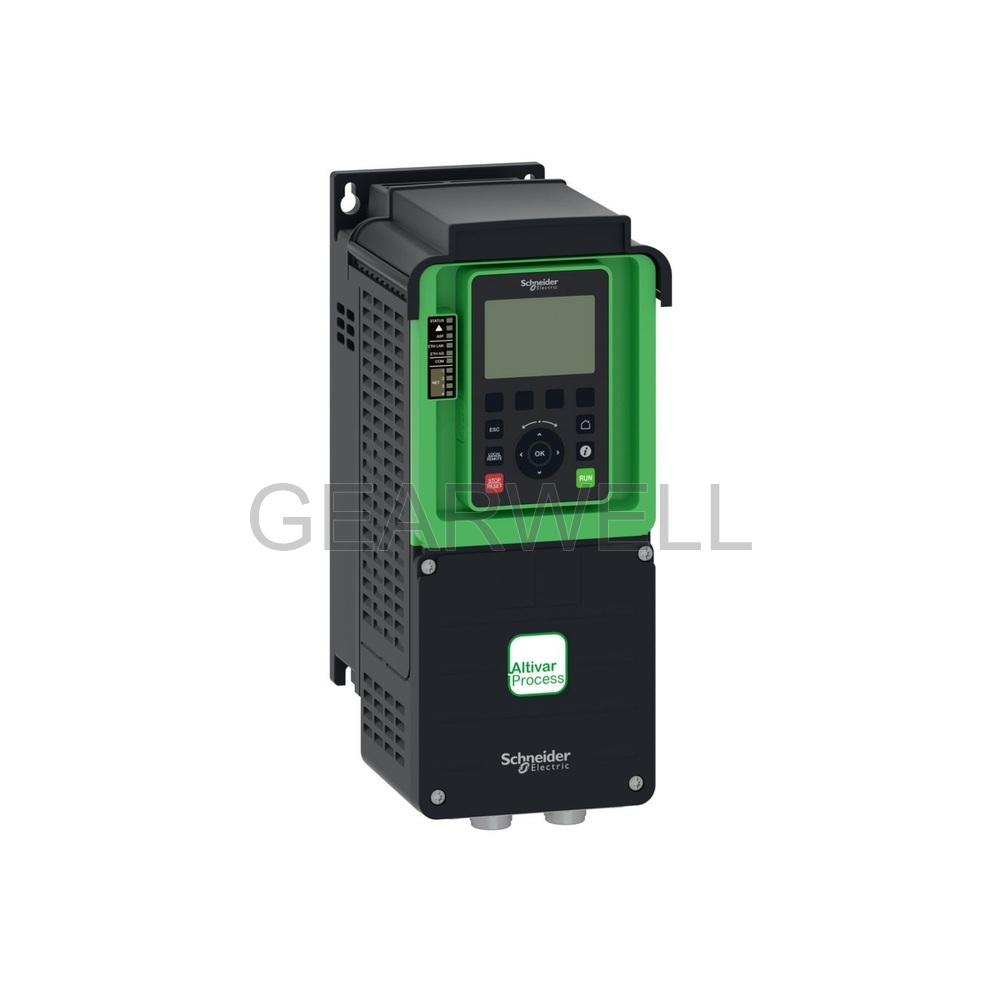

The Schneider Electric ATV630U07N4 is an Altivar Process ATV630 variable speed drive for 380–480 V three-phase supplies, rated 0.75 kW (1 HP) in normal duty and 0.37 kW (0.5 HP) in heavy duty. It is an IP21/UL Type 1 wall-mounting drive with an integrated category C2 EMC filter. Schneider Electric aims the ATV600 series at fluid management and process applications such as water and wastewater, oil and gas, and mining, with pump monitoring functions, embedded Ethernet and an embedded web server for setup and monitoring.
Technical reference
| Product name | Schneider Electric ATV630U07N4 Variable Frequency Drive |
|---|---|
| Brand | Schneider Electric |
| Model | ATV630U07N4 |
| Category | Variable Frequency Drives |
