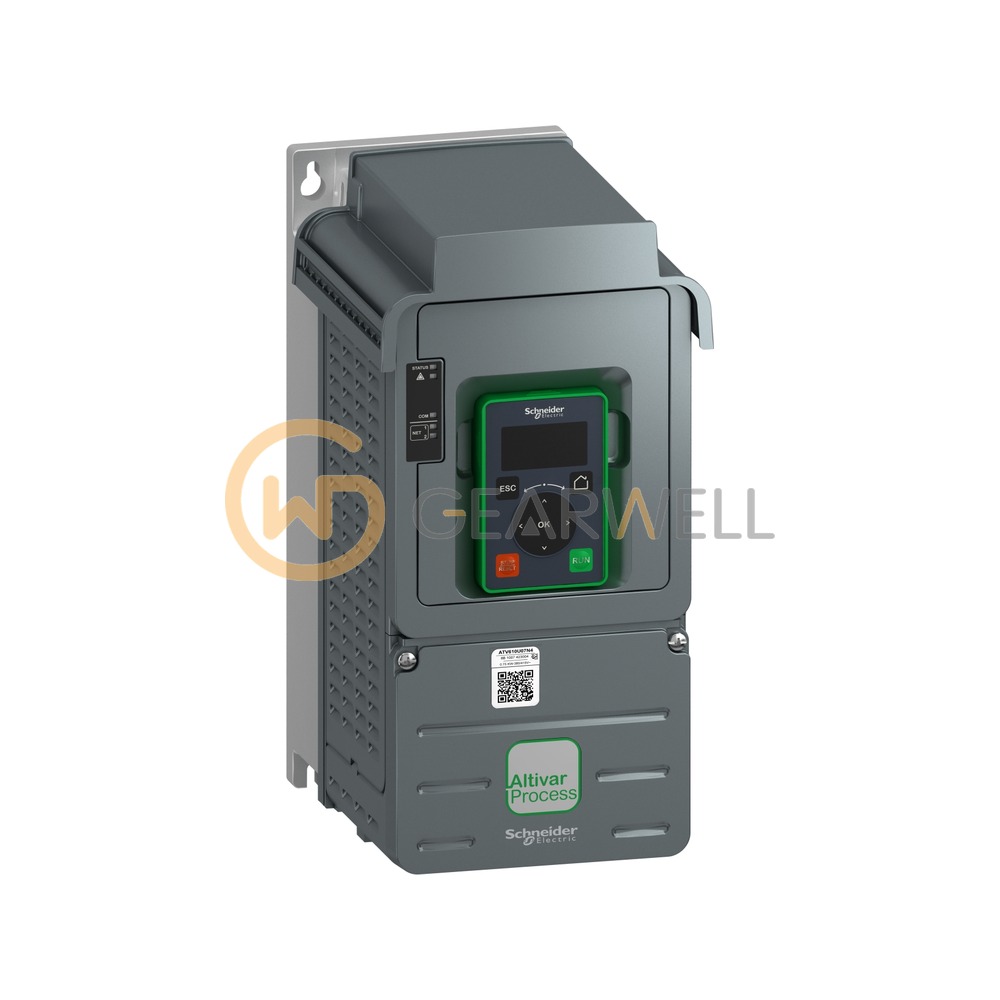

Schneider Electric ATV610U07N4 Altivar ATV610 Variable speed drive
- Brand
- Schneider Electric
- Model
- ATV610U07N4
- GEARWELL SKU
- GWP-000010822
- Category
- Variable Frequency Drives
Key specifications
- Variant
- Standard version
- EMC filter
- Integrated conforming to IEC 61800-3 category C3 with 50 m
- Mounting mode
- Cabinet mount
- Type of cooling
- Forced convection
- Supply frequency
- 50...60 Hz +/-5 %
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Schneider Electric ATV610U07N4 is an Altivar ATV610 variable speed drive for 380–460 V three-phase supplies, rated 0.75 kW (1 HP) in normal duty and 0.37 kW (0.5 HP) in heavy duty. It is an IP20 drive with a keypad and an integrated category C3 EMC filter. Schneider Electric designs the ATV610 for pumps and fans, with configurable I/O as standard, factory-preset parameters for plug-and-play start-up, an optional communication module and cooling fans that can be replaced in under five minutes.
Technical reference
| Product name | Schneider Electric ATV610U07N4 Altivar ATV610 Variable speed drive |
|---|---|
| Brand | Schneider Electric |
| Model | ATV610U07N4 |
| Category | Variable Frequency Drives |
| Variant | Standard version |
| EMC filter | Integrated conforming to IEC 61800-3 category C3 with 50 m |
| Mounting mode | Cabinet mount |
| Type of cooling | Forced convection |
| Supply frequency | 50...60 Hz +/-5 % |
| Product destination | Asynchronous motors, Synchronous motors |
| IP degree of protection | IP20 |
| Product specific application | Fan, pump, compressor, conveyor |
