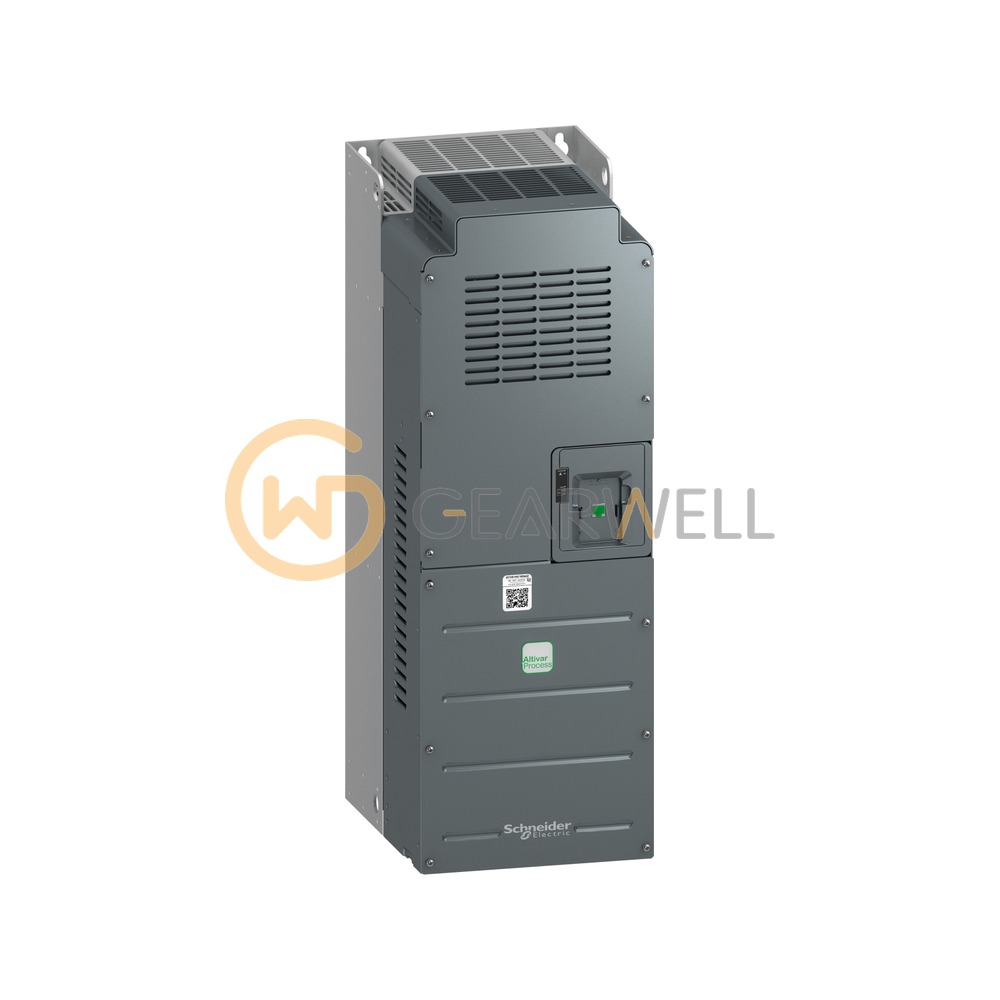

Schneider Electric ATV610C16N4Z Altivar ATV610 Variable Speed Drive
- Brand
- Schneider Electric
- Model
- ATV610C16N4Z
- GEARWELL SKU
- GWP-000007213
- Category
- Variable Frequency Drives
Key specifications
- Variant
- Standard version
- EMC filter
- Integrated conforming to IEC 61800-3 category C3 with 50 m
- Mounting mode
- Cabinet mount
- Type of cooling
- Forced convection
- Supply frequency
- 50...60 Hz +/-5 %
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Schneider Electric ATV610C16N4Z is an Altivar ATV610 variable speed drive for 380–460 V three-phase supplies, rated 160 kW (250 HP) in normal duty and 132 kW (200 HP) in heavy duty. It is supplied as IP00, with an IP21 conformity kit available as an option, and comes without a keypad and with an integrated category C3 EMC filter. Schneider Electric designs the ATV610 for pumps and fans, with configurable I/O as standard, factory-preset parameters for plug-and-play start-up, an optional communication module and cooling fans that can be replaced in under five minutes.
Technical reference
| Product name | Schneider Electric ATV610C16N4Z Altivar ATV610 Variable Speed Drive |
|---|---|
| Brand | Schneider Electric |
| Model | ATV610C16N4Z |
| Category | Variable Frequency Drives |
| Variant | Standard version |
| EMC filter | Integrated conforming to IEC 61800-3 category C3 with 50 m |
| Mounting mode | Cabinet mount |
| Type of cooling | Forced convection |
| Supply frequency | 50...60 Hz +/-5 % |
| Product destination | Asynchronous motors |
| IP degree of protection | IP20 |
| Network number of phases | 3 phases |
