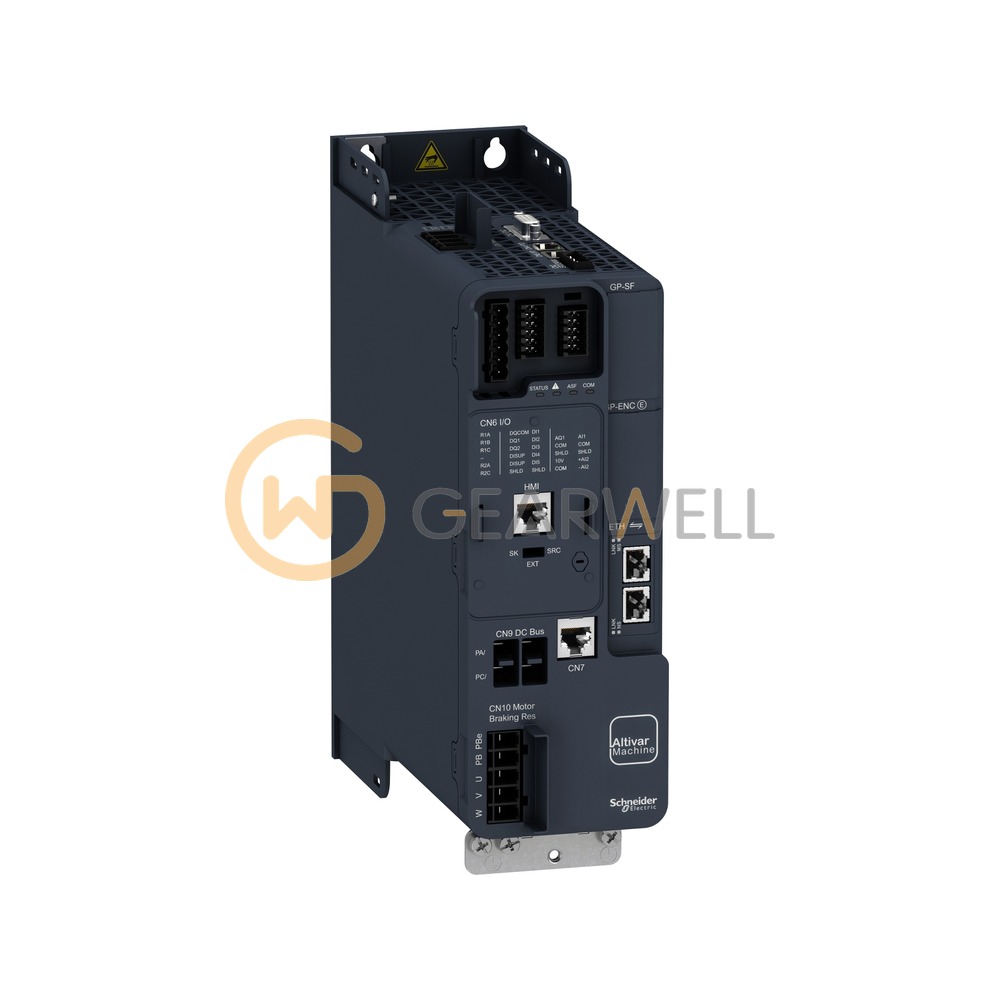

Schneider Electric ATV340U22N4E Variable speed drive
- Brand
- Schneider Electric
- Model
- ATV340U22N4E
- GEARWELL SKU
- GWP-000011048
- Category
- Variable Frequency Drives
Key specifications
- EMC filter
- Class C3 EMC filter integrated
- Motor power hp
- 3 Hp for normal duty; 3 Hp for heavy duty
- Motor power kW
- 3 KW for normal duty; 2.2 KW for heavy duty
- Nominal output current
- 5.6 A
- IP degree of protection
- IP20
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric ATV340U22N4E Variable speed drive |
|---|---|
| Brand | Schneider Electric |
| Model | ATV340U22N4E |
| Category | Variable Frequency Drives |
| EMC filter | Class C3 EMC filter integrated |
| Motor power hp | 3 Hp for normal duty; 3 Hp for heavy duty |
| Motor power kW | 3 KW for normal duty; 2.2 KW for heavy duty |
| Nominal output current | 5.6 A |
| IP degree of protection | IP20 |
| [Us] rated supply voltage | 380...480 V - 15...10 % |
| Network number of phases | 3 phases |
