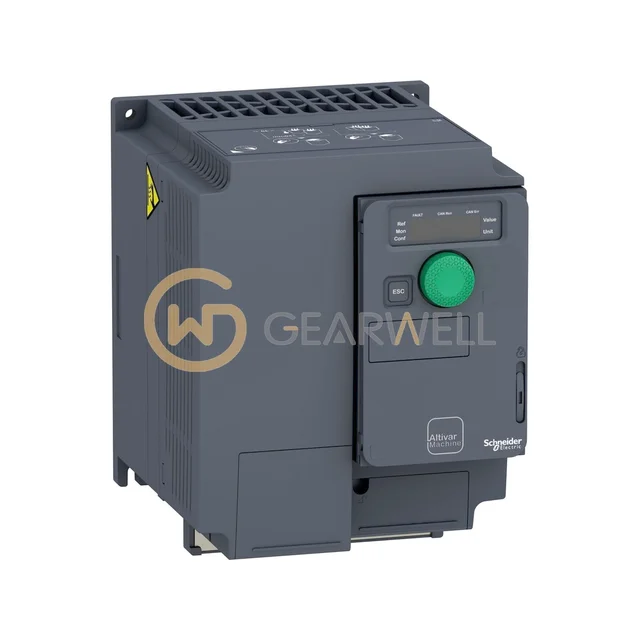

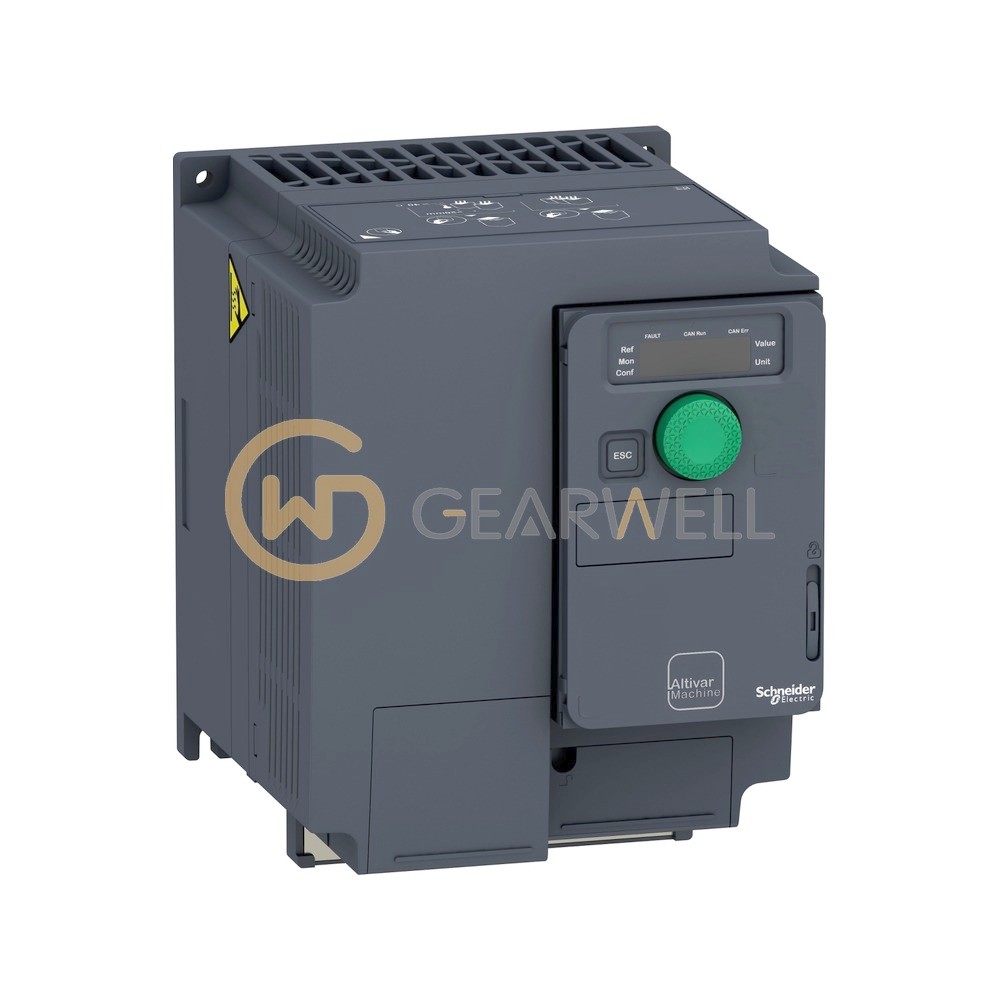

Schneider Electric ATV320U30N4C Variable speed drive
- Brand
- Schneider Electric
- Model
- ATV320U30N4C
- GEARWELL SKU
- GWP-000011043
- Category
- Variable Frequency Drives
Key specifications
- EMC filter
- Class C2 EMC filter integrated
- Motor power kW
- 3.0 KW for heavy duty
- Format of the drive
- Compact
- Nominal output current
- 7.1 A
- IP degree of protection
- IP20
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Schneider Electric ATV320U30N4C is an Altivar Machine ATV320 variable speed drive in compact IP20 format for 380–500 V three-phase supplies, with a category C2 integrated EMC filter, for motors up to 3 kW as indicated on the rating plate. Schneider Electric aims the ATV320 at industrial machines such as material handling, packaging, textiles and hoisting; it controls asynchronous and permanent magnet synchronous motors in open loop and has embedded safety functions including STO (up to SIL3/PLe), SS1, SLS, SMS and GDL.
Technical reference
| Product name | Schneider Electric ATV320U30N4C Variable speed drive |
|---|---|
| Brand | Schneider Electric |
| Model | ATV320U30N4C |
| Category | Variable Frequency Drives |
| EMC filter | Class C2 EMC filter integrated |
| Motor power kW | 3.0 KW for heavy duty |
| Format of the drive | Compact |
| Nominal output current | 7.1 A |
| IP degree of protection | IP20 |
| [Us] rated supply voltage | 380...500 V - 15...10 % |
