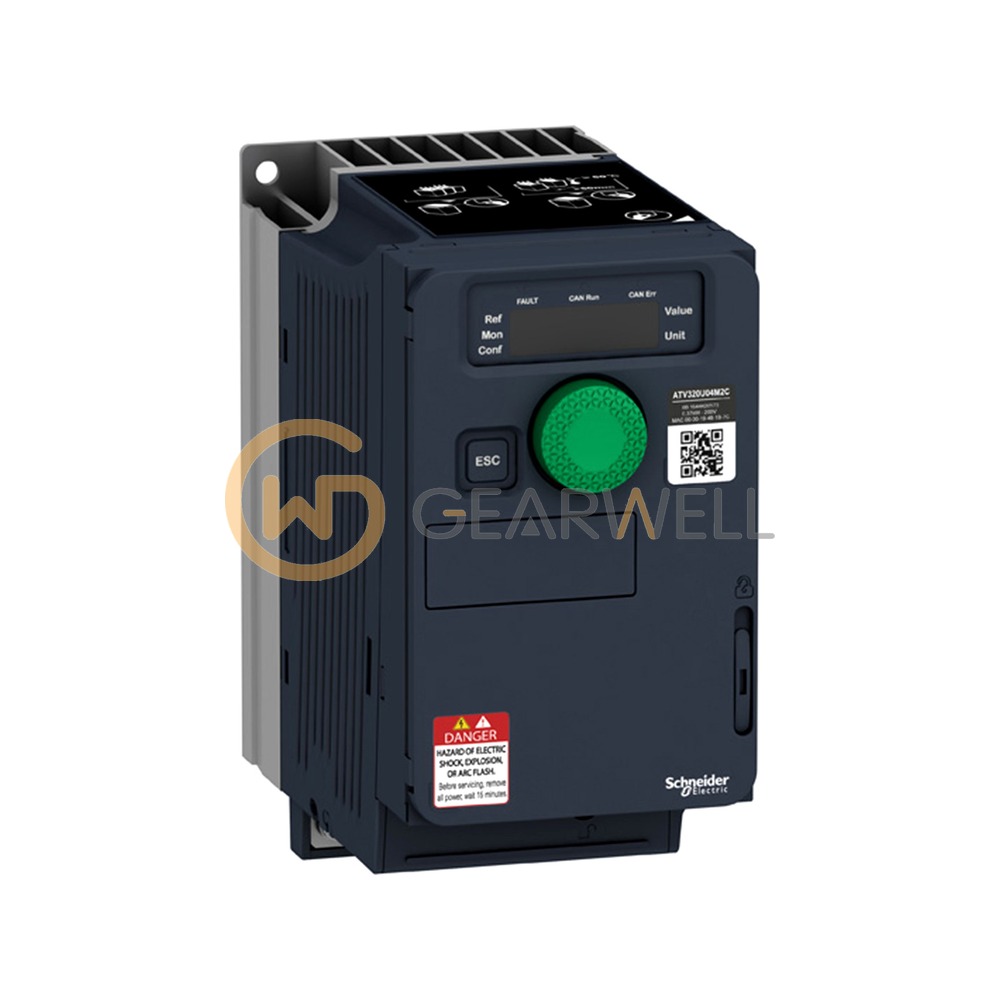

Schneider Electric ATV320U04M2C Variable speed drive
- Brand
- Schneider Electric
- Model
- ATV320U04M2C
- GEARWELL SKU
- GWP-000010758
- Category
- Variable Frequency Drives
Key specifications
- Variant
- Standard version
- Option card
- Communication module, CANopen
- Mounting mode
- Wall mount
- Format of the drive
- Compact
- Nominal output current
- 3.3 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Schneider Electric ATV320U04M2C is an Altivar Machine ATV320 variable speed drive in compact IP20 format for 200–240 V single-phase supplies, with a category C2 integrated EMC filter, for motors up to 0.37 kW (0.5 HP) as indicated on the rating plate. Schneider Electric aims the ATV320 at industrial machines such as material handling, packaging, textiles and hoisting; it controls asynchronous and permanent magnet synchronous motors in open loop and has embedded safety functions including STO (up to SIL3/PLe), SS1, SLS, SMS and GDL.
Technical reference
| Product name | Schneider Electric ATV320U04M2C Variable speed drive |
|---|---|
| Brand | Schneider Electric |
| Model | ATV320U04M2C |
| Category | Variable Frequency Drives |
| Variant | Standard version |
| Option card | Communication module, CANopen |
| Mounting mode | Wall mount |
| Format of the drive | Compact |
| Nominal output current | 3.3 A |
| [Us] rated supply voltage | 200...240 V - 15...10 % |
| Communication port protocol | Modbus serial, CANopen |
| Product specific application | Complex machines |
