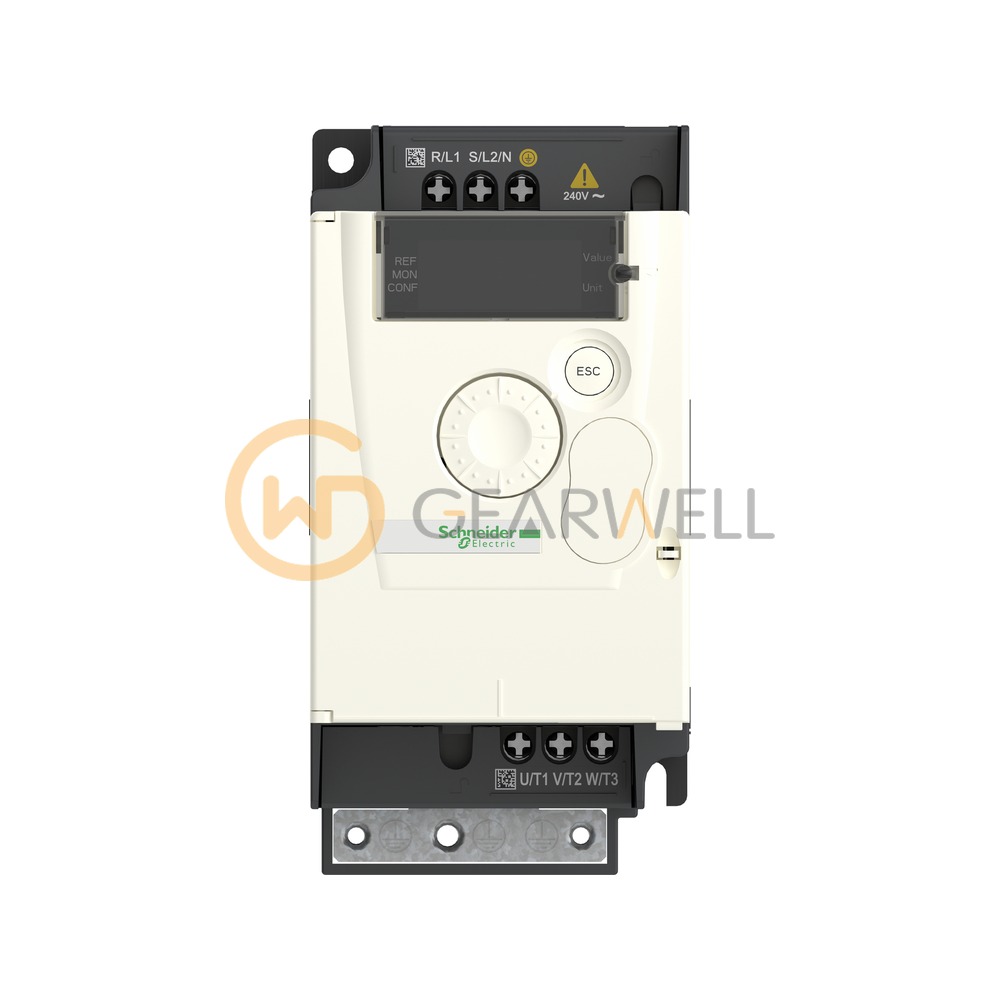

Schneider Electric ATV12H037M2 Altivar 12 Variable Speed Drive
- Brand
- Schneider Electric
- Model
- ATV12H037M2
- GEARWELL SKU
- GWP-000011029
- Category
- Variable Frequency Drives
Key specifications
- EMC filter
- Integrated
- Motor power kW
- 0.37 kW
- Supply frequency
- 50/60 Hz +/- 5 %
- nominal output current
- 2.4 A
- IP degree of protection
- IP20
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric ATV12H037M2 Altivar 12 Variable Speed Drive |
|---|---|
| Brand | Schneider Electric |
| Model | ATV12H037M2 |
| Category | Variable Frequency Drives |
| EMC filter | Integrated |
| Motor power kW | 0.37 kW |
| Supply frequency | 50/60 Hz +/- 5 % |
| nominal output current | 2.4 A |
| IP degree of protection | IP20 |
| [Us] rated supply voltage | 200...240 V - 15...10 % |
| Maximum Horse Power Rating | 0.55 hp |
| Product Specific Application | Simple machine |
