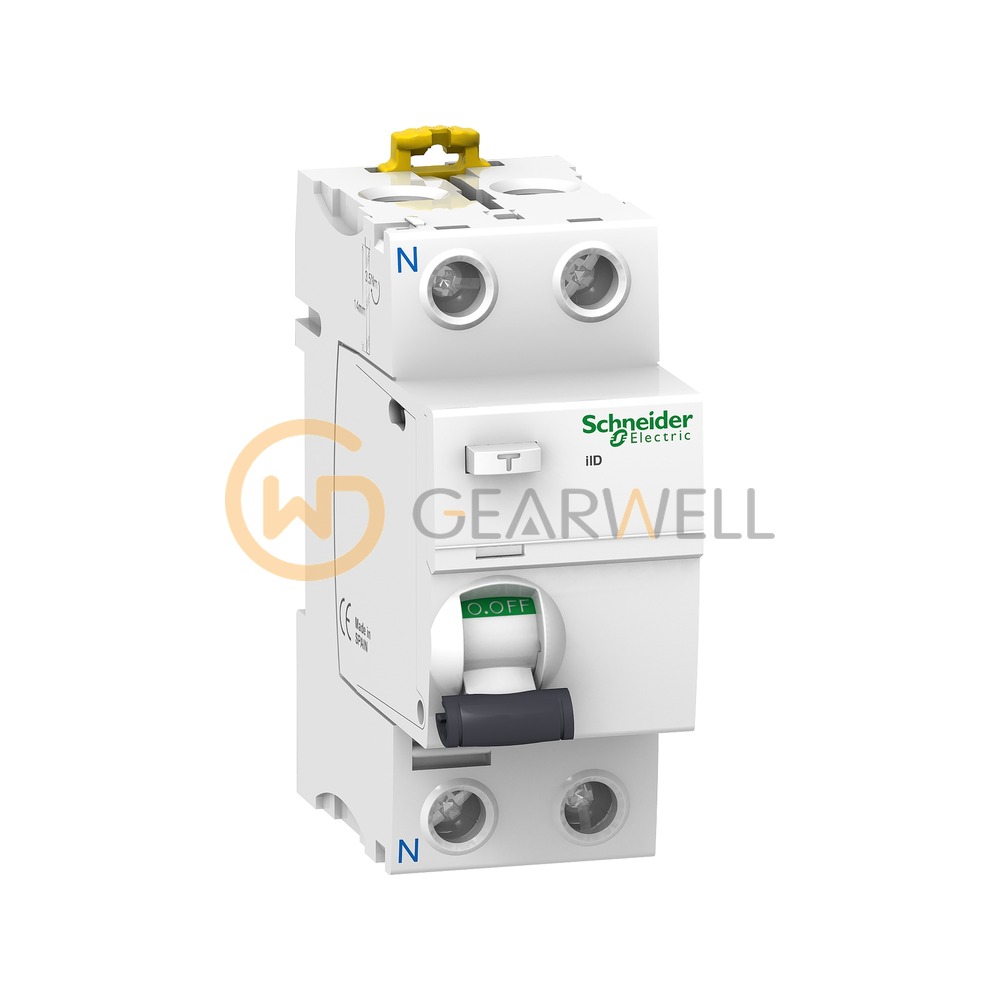

Schneider Electric A9R82263 Residual current circuit breaker (RCCB)
- Brand
- Schneider Electric
- Model
- A9R82263
- GEARWELL SKU
- GWP-000013903
- Category
- Circuit Protection
Key specifications
- [In] rated current
- 63 A
- Device short name
- iID
- Poles description
- 2P
- Earth-leakage sensitivity
- 300 MA
- Product or component type
- Residual current circuit breaker (RCCB)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric A9R82263 Residual current circuit breaker (RCCB) |
|---|---|
| Brand | Schneider Electric |
| Model | A9R82263 |
| Category | Circuit Protection |
| [In] rated current | 63 A |
| Device short name | iID |
| Poles description | 2P |
| Earth-leakage sensitivity | 300 MA |
| Product or component type | Residual current circuit breaker (RCCB) |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| [Ue] rated operational voltage | 230...240 V AC 50/60 Hz |
| Earth-leakage protection class | Type AC |
